Name: Certified Bently Nevada 330901-20-32-10-02-05 NSv Probe | Hazardous Area Sensor
SKU: 330901-20-32-10-02-05
Price: 273.00 USD
Availability: InStock

Product details

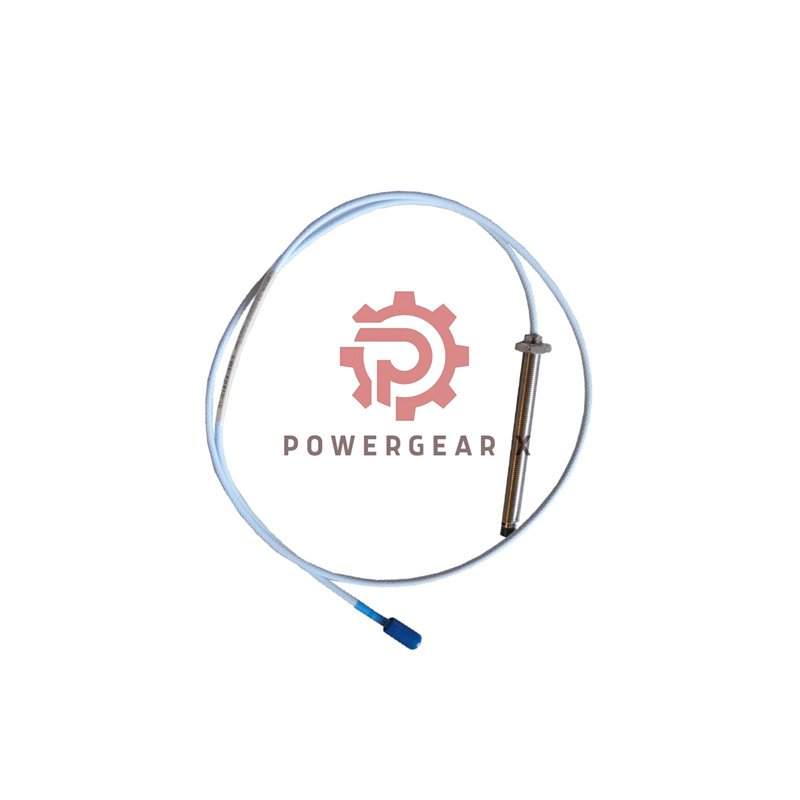

3300 NSv Proximity Probe with Multi-Certifications

This Bently Nevada 330901-20-32-10-02-05 is a premium industrial sensor. It is made in the USA with global safety approvals. It offers precise vibration and position measurement for critical machinery.

Model Number Details

Base Model: 330901
- 3300 NSv Series Proximity Probe
- 1/4-28 UNF Thread
- Standard Design Without Armor
Key Configuration
- -20: Unthreaded Length = 2.0 inches
- -32: Overall Case Length = 3.2 inches
- -10: Cable Length = 1.0 meter (39 inches)
- -02: Connector = Standard ClickLoc with Standard Cable
- -05: Agency Approvals = Multiple Certifications Included

Core Technical Specifications

Electrical & Performance
- Probe Resistance (1.0m): 4.2 ohms (± 0.5 ohms).
- Cable Type: 75 Ω coaxial with FEP insulation.
- Temperature Range: -52°C to +177°C (-62°F to +351°F).
- Warning: Do not store below -34°C (-30°F) to protect the seal.
Mechanical & Installation
- Case Material: Durable AISI 304 Stainless Steel.
- Tip Material: PPS (Polyphenylene Sulfide).
- Seal: Viton® O-ring for environmental protection.
- Thread: 1/4-28 UNF. Max engagement 0.563 inches.
- Torque: Recommended 11.3 N•m (100 in•lb) for installation.
Certifications (Suffix -05)
- Certified for use in hazardous areas.
- Complies with global intrinsic safety standards.
- Ideal for oil & gas, chemical, and other regulated industries.

Expert FAQ for the NSv Series

Product Features & Selection

Q: What is the main difference between the 3300 XL and 3300 NSv probe series?
A: The 3300 NSv series often uses imperial threads (like 1/4-28 UNF) and may have different electrical specs. It is designed for specific global market requirements and system integrations.
Q: The suffix “-05” means multiple approvals. Which ones are included?
A: This typically includes ATEX, IECEx, and CSA approvals for intrinsic safety. It allows installation in Class I Div 1 / Zone 0 hazardous locations when used with approved barriers.

Installation & Maintenance

Q: Why is there a torque specification for the probe case?
A: Proper torque ensures a secure fit without damaging the threads or the O-ring seal. Overtightening can crack the housing or compromise the seal.
Q: Can the FEP-insulated cable handle harsh chemicals?
A: Yes. FEP (Fluoroethylene Propylene) insulation offers excellent chemical resistance and high-temperature performance, making it suitable for tough plant environments.

Purchasing & Support

Q: Is this model ready to ship for urgent projects?
A: Yes. The Bently Nevada 330901-20-32-10-02-05 is a stocked item. We offer expedited shipping via FedEx, UPS, or DHL to meet project deadlines.

Order with Confidence

Genuine Product: Authentic Bently Nevada 330901-20-32-10-02-05 probe.
Fast Delivery: Choose from major global couriers (FedEx, UPS, DHL).
Full Protection: Backed by our standard 12-month warranty against defects.
