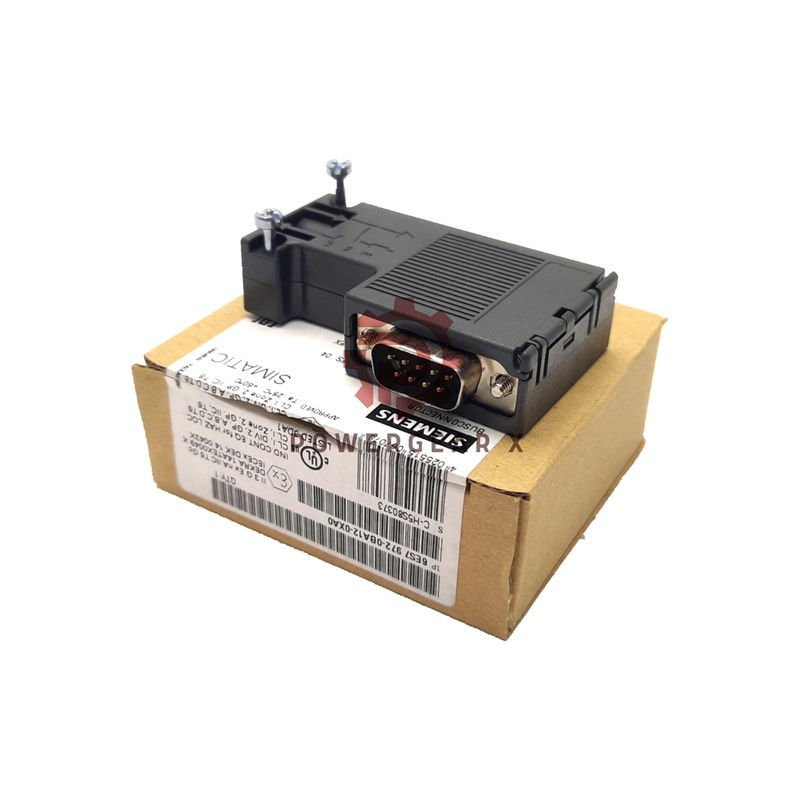

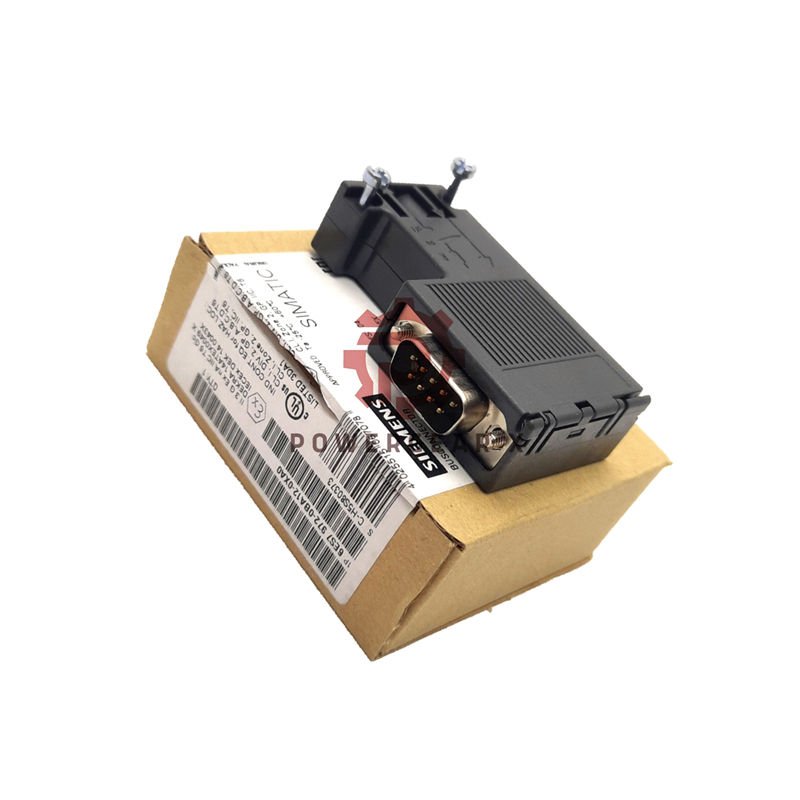

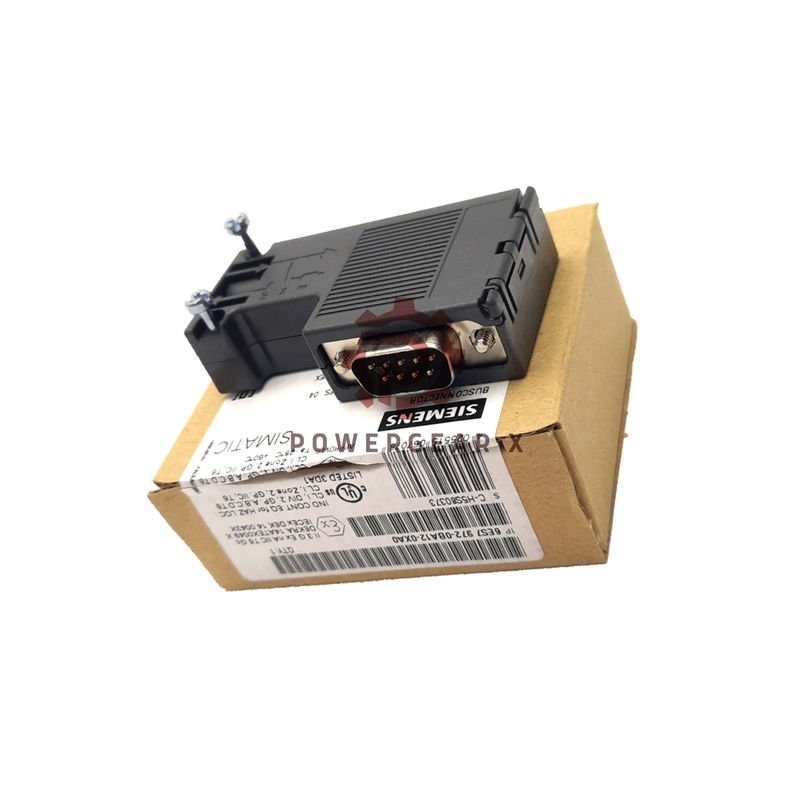

Siemens 6ES7972-0BA12-0XA0 PROFIBUS Connector (90° Angle Type)
Author: Powergear X Automation
The 6ES7972-0BA12-0XA0 is a PROFIBUS DP connector with a 90° cable outlet, designed for fast, secure connections in automation networks. It provides stable data transmission up to 12 Mbit/s and includes a terminating resistor with an isolating switch. Built with durable plastic and a screw-lock mechanism, this connector ensures long-term reliability in industrial environments.
- Manufacturer: Siemens
- Model: 6ES7972-0BA12-0XA0
- Series: SIMATIC DP
- Type: PROFIBUS DP connector (RS485)
- Orientation: 90° cable outlet
- Dimensions (WxHxD): 15.8 × 64 × 35.6 mm
- Net Weight: 0.046 kg
- Material: High-strength plastic
- Termination: Screw connection
- Voltage Range: Supports 9.6 kbit/s – 12 Mbit/s
- Protection Level: IP20
- Operating Temp.: -25°C to +60°C
- Storage Temp.: -40°C to +70°C
- Compliance: RoHS & UL Approved
- WEEE Take-Back: Yes
- REACH: Lead monoxide CAS-No. 1317-36-8 > 0.1%
Product Highlights
- Fast PROFIBUS data rate up to 12 Mbit/s
- Compact 90° outlet saves panel space
- Durable screw-lock mechanism for secure fit
- Built-in resistor with isolation switch for flexible configuration
- Silicone-free, RoHS compliant for environmental safety
- Includes strain relief for enhanced cable stability
- Easy installation with simple screw connections
- Ideal for factory and process automation networks
Shipping & Warranty
- Warranty: 12 months full coverage
- Shipping: Worldwide delivery via FedEx, UPS, DHL
Contact Information
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
Frequently Asked Questions (FAQ)
- Q1: What is the main use of 6ES7972-0BA12-0XA0?
- It connects PROFIBUS devices in industrial networks with a secure RS485 interface.
- Q2: Does it include a terminating resistor?
- Yes, it has an integrated resistor that can be connected via a slide switch.
- Q3: Can this connector be used outdoors?
- No, it is designed for indoor use with IP20 protection.
- Q4: What is the cable type supported?
- It supports PROFIBUS cables with screw-type electrical connections.
- Q5: Is it compatible with all Siemens PROFIBUS modules?
- Yes, it fits all standard Siemens SIMATIC DP PROFIBUS interfaces.
Technical Advantage
- Resistant to vibration and mechanical stress
- Supports stable long-distance data transmission
- Ideal for PLC and automation systems requiring precise communication
- Lightweight and compact, fits tight control cabinets
- Energy-efficient and maintenance-free operation
