Product details

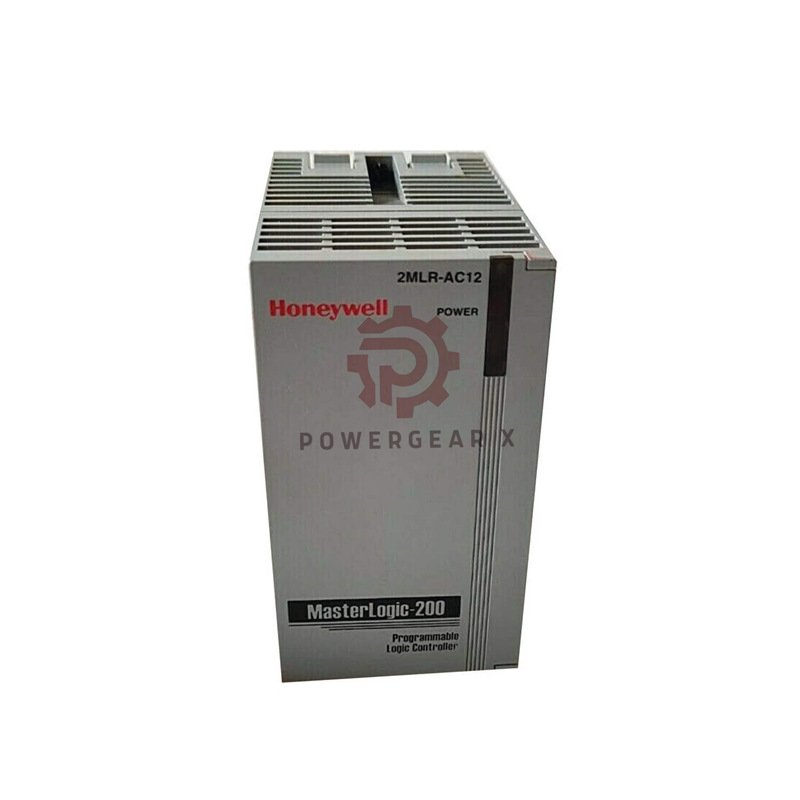

Honeywell 2MLR-AC12 Power Supply Module
The Honeywell 2MLR-AC12 delivers reliable power for MasterLogic-200 systems. This robust module ensures stable operation in industrial environments. It supports both AC and DC input voltages for flexibility.
Key Product Features
- Dual voltage input: 110V AC and 24V DC
- High efficiency rating of 65% or better
- Built-in voltage status LED indicator
- Compact design saves panel space
- UL approved fuses for safety protection
- Wide input frequency range: 47-63 Hz
Technical Specifications
- Model Number: 2MLR-AC12
- Input Voltage AC: 85V~132V AC
- Input Voltage DC: 18V~30V DC
- Output Voltage: 5VDC (±2%)
- Output Current: 5.5A maximum
- Output Power: 27.5W @ 55℃
- Efficiency: 65% minimum
- Dimensions: 55 x 95 x 90 mm
- Weight: 326 grams
- Inrush Current: 20A peak maximum
Protection & Safety
- Over current protection: 6.0A~13.0A range
- Built-in non-replaceable input fuses
- Withstands power interruptions up to 20ms
- Time-lag fuse type for surge protection
- Automatic shutdown on overload
Reliability & Performance
- Mechanical life: 20 million operations
- Electrical life: 100,000 switching cycles
- Fast response time under 12ms
- Stable operation in high temperatures
- Consistent voltage output quality
Shipping & Warranty
- Full 12-month manufacturer warranty
- Global shipping via FedEx, UPS, DHL
- Secure packaging with protective materials
- Fast order processing within 24 hours
- Worldwide delivery options available
Installation Guide
- Use 0.75~2mm² cable for connections
- Compatible with RAV1.25-3.5 terminals
- Ensure proper ventilation around unit
- Verify input voltage before powering
- Check LED status for normal operation
Frequently Asked Questions
- What input voltages does the 2MLR-AC12 support?
It works with both 85-132V AC and 18-30V DC power sources.
- Can users replace the internal fuses?
No, the input fuses are built-in and not user replaceable.
- What is the maximum output current?
The module provides up to 5.5A output current at 5VDC.
- How long does it handle power interruptions?
It maintains operation through interruptions up to 20 milliseconds.
- What temperature does it operate at?
It delivers full power up to 55℃ ambient temperature.
