Buy Emerson AMS Trex TREXCHPNAWS1 Communicator Wireless Field Device

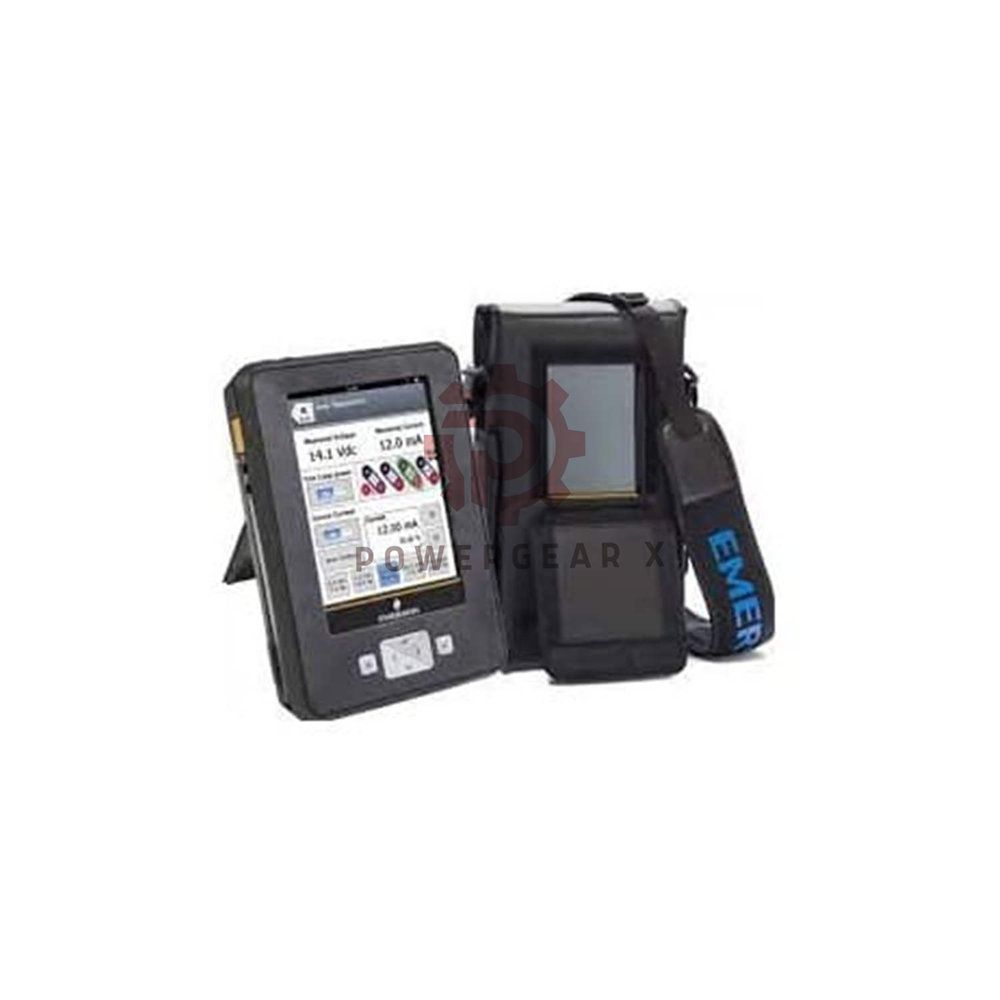

Emerson TREXCHPNAWS1 AMS Trex Device Communicator Overview

Configuration Breakdown (Tree Structure)

TREXCHPNAWS1
├── TREX → Base Trex Platform
├── C → Device Communicator Module
├── H → HART Application
├── P → Rechargeable Li-Ion Battery
├── NA → No Certification
├── W → Wireless Enabled
└── S1 → Standard Support (1 Year)

Core Specifications

• Processor: 800 MHz ARM Cortex A8 (NXP)
• Memory: 512 MB DDR3 RAM
• Storage: 2GB NAND + 32GB Extended Flash
• System: Windows Embedded Compact 2013
• Display: 5.7″ VGA Touchscreen (640×480)

Communication Interface

• HART Terminal (Selectable 250Ω / 500Ω)
• Fieldbus (FF) Terminal
• HART + Power Supply (3–22.5mA)
• mA Measurement (Max 22.5mA, 0.1mA Resolution)
• FF Power Output (0–38mA)

Connectivity

• USB: Micro USB 2.0
• Bluetooth 2.1 (Range: 10m)
• Wi-Fi 802.11 b/g (Range: 33m)
• NFC (Range: 20cm)

Battery Performance

• Type: Rechargeable Li-Ion
• Runtime: 8+ Hours
• Charging Time: 3–4 Hours

Professional FAQ (Buying Guide & Usage Tips)

Q1: Is this device easy to use for beginners?

A: Yes. The interface is simple. The touch screen helps fast setup.

Q2: How to choose the right communicator version?

A: Check if you need wireless and HART support. This model includes both.

Q3: What warranty is included?

A: Standard support is 12 months. Extended service can be requested.

Q4: What shipping options are available?

A: Fast delivery via FedEx, UPS, or DHL worldwide.

Q5: Can it work in industrial environments?

A: Yes. It is built for field use and stable performance.
