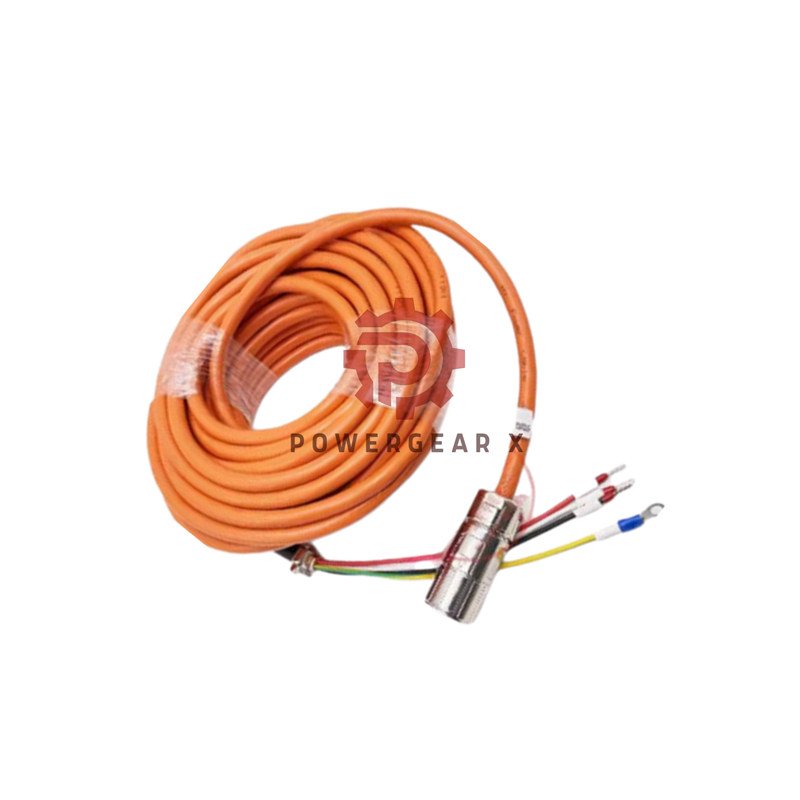

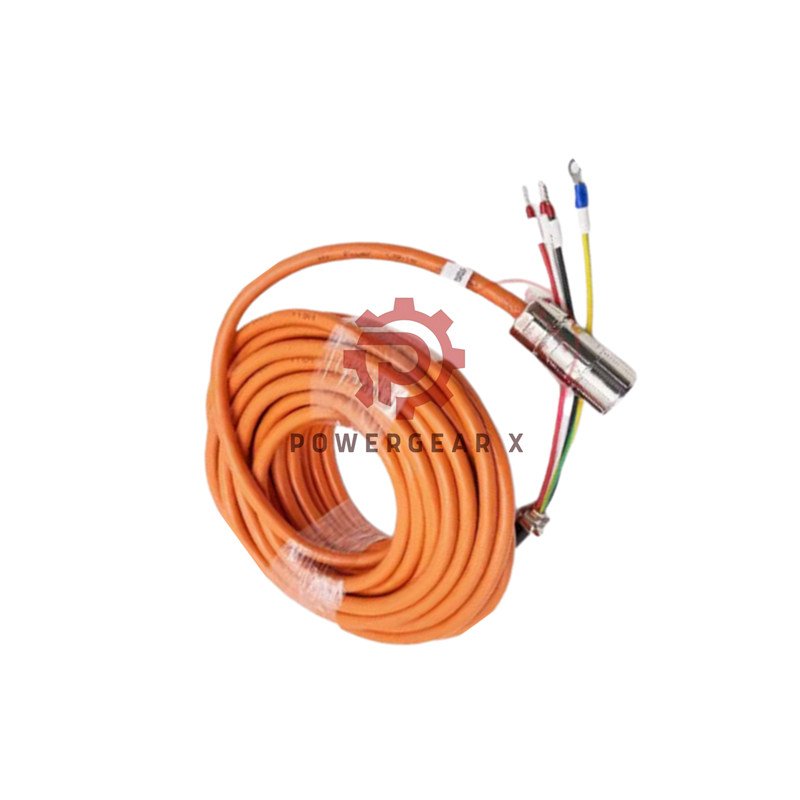

6FX3002-5CL01 Pre-Assembled Power Cable | Siemens Motion-Connect 300 UL/CSA
Product Overview
The 6FX3002-5CL01 power cable is a durable, pre-assembled cable designed for Siemens V70/V90 frame AA and A MOTION-CONNECT 300 UL/CSA systems. Ideal for S-1FL6 HI 400 V motors, it ensures high flexibility, secure power delivery, and easy installation even in demanding environments.
- Part Number: 6FX3002-5CL01
- Type: Power Cable Pre-Assembled
- Voltage Rating: 600 V / 1000 V
- Length: 15 m
- Diameter: 8.1 mm
- Protection: IP65
- Operating Temperature: -25°C to +80°C
- Sheath Material: PVC
- Warranty: 12 Months
- Shipping: FedEx, UPS, DHL Available
Electrical Performance
- • 4 x 1.5 mm² core size
- • 4,000 V test voltage (rms)
- • Flame resistance certified per EN 60332-1-1 to 1-3
- • UL, CE, and RoHS compliant
Mechanical Strength
- • Fixed bending radius: 6 × diameter
- • Flexible bending radius: 155 mm
- • Torsional stress: ±30°/m
- • Tensile load (fixed): 50 N/mm²
- • Tensile load (flexible): 20 N/mm²
- • Maximum bends: 1,000,000 cycles
Connection Details
The cable includes an angular connector with a rotatable outlet direction. For easy setup, disassembly is required when adjusting connector orientation.
Key Benefits
- Ready-to-use pre-assembled design saves installation time.
- Strong PVC insulation ensures long-lasting performance.
- Tested for oil resistance per EN 60811-2-1 standards.
- Excellent durability under high bending and torsion loads.
- Reliable power delivery for industrial motion applications.
Technical Parameters Summary
- Core Type: 4-core, 1.5 mm² each
- Voltage: 600V / 1000V
- Insulation: PVC
- Shielding: None
- Ambient Temp: -25°C to +80°C
- Protection Class: IP65
- Compliance: CE, UL, RoHS
Author: Powergear X Automation
Contact Information
Inquiries: sales@powergearx.com |
+86 18030005825
Professional FAQ
- Q1: What motors are compatible with 6FX3002-5CL01?
This cable is designed for Siemens S-1FL6 HI 400 V motors with V70/V90 drives. - Q2: Can it be used in flexible robotic applications?
Yes, it supports up to 1,000,000 bending cycles, making it suitable for moving applications. - Q3: What certifications does the cable have?
It meets CE, UL, and RoHS standards for safety and environmental compliance. - Q4: Is the connector adjustable?
Yes, the angular connector can be rotated in fixed increments, but requires disassembly for adjustment. - Q5: What is the best way to install the 6FX3002-5CL01?
Ensure proper bending radius and avoid sharp turns. Follow Siemens’ motion system connection guide for best results.
