Product details

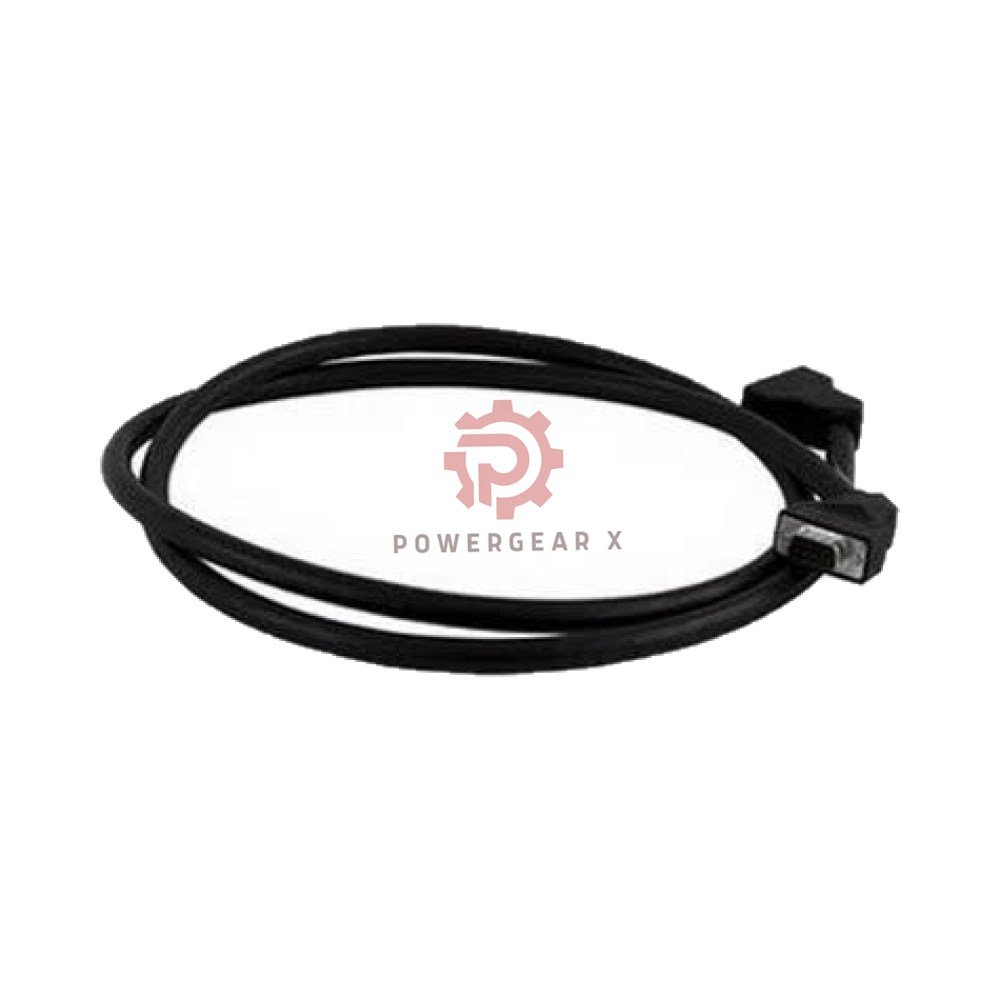

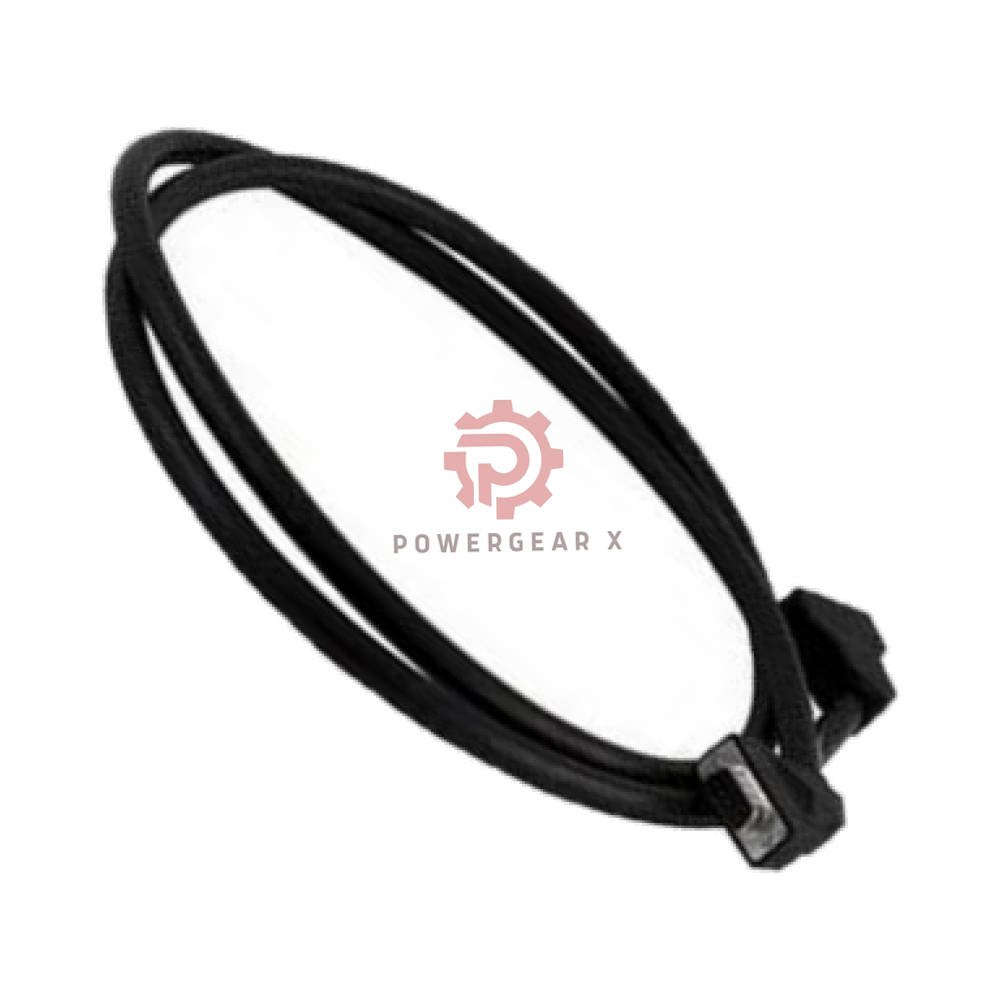

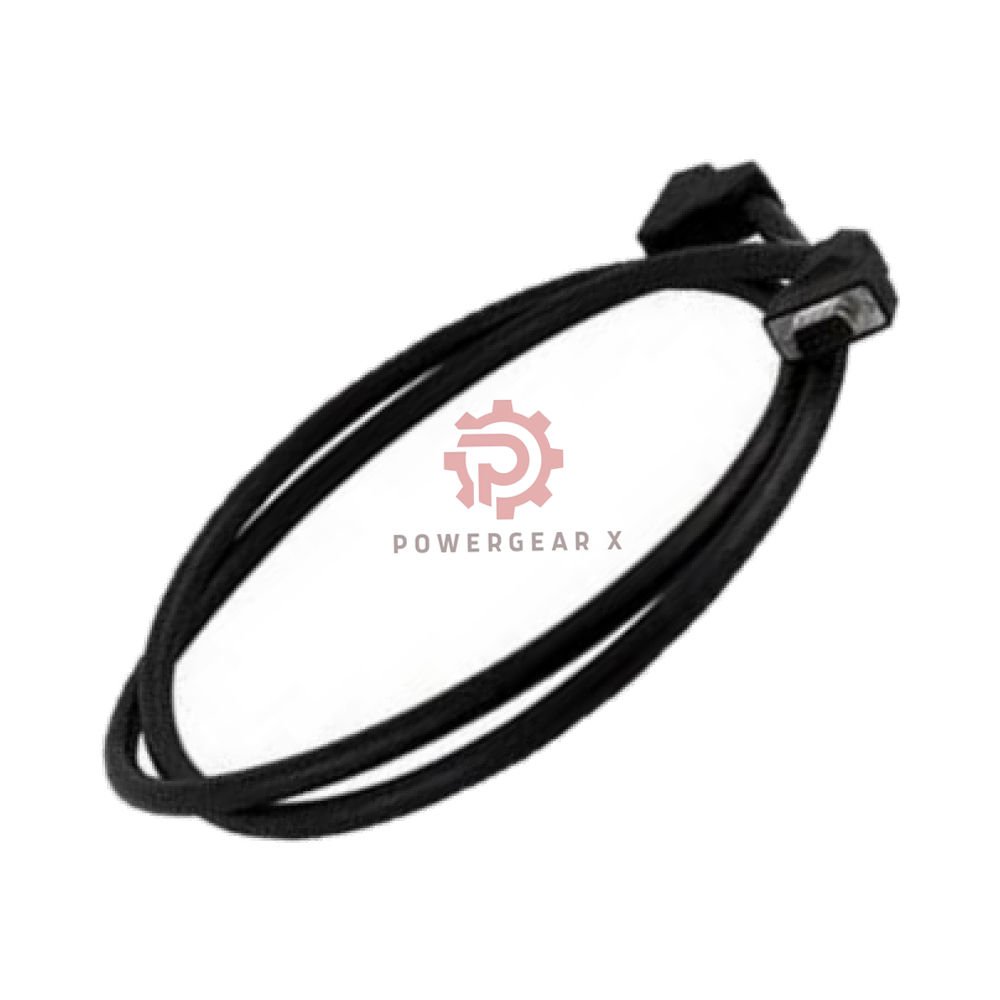

BMXXBC050K Schneider Modicon X80 X-bus Expansion Cable – 5 m
Connect M340 and M580 racks with a reliable X-bus cable. This 5 m cable supports daisy-chain topology. It keeps your control system fast and stable. Total X-bus length can reach 30 m.
Why This Cable Matters
- Brand: Schneider Electric
- Model: BMXXBC050K
- Series: Modicon X80
- Type: X-bus expansion cable
- Function: Daisy-chain X-bus link between racks
Technical Data
- Length: 5.0 m
- Connector: 9-pin SUB-D
- X-bus total length: max 30 m
- Lifecycle: Active (shared I/O platform for M340 and M580)
- Last verified: 2026-09
Installation Guide
- Turn off power before you connect racks.
- Plug the 9-pin SUB-D into the X-bus port.
- Keep total cable length under 30 m.
- Use daisy-chain layout. Do not create loops.
- Check all connections after setup.
Debug & Maintenance
- Check cable seating if communication fails.
- Replace cable if shield is damaged.
- Keep connectors clean and dry.
- No special tools needed for swap.
Compatibility
- Works with Modicon M340 racks.
- Works with Modicon M580 racks.
- Fits any X80 X-bus expansion port.
Certifications & Standards
- CE, UL, CSA listed.
- RoHS compliant.
- Designed for industrial EMC.
Package List
- 1 x BMXXBC050K cable, 5 m
- 1 x Installation leaflet
Warranty & Shipping
- Warranty: 12 months
- Dispatch: 12–24 hours
- Courier: FedEx, UPS, DHL
- Contact: sales@powergearx.com | +86 18030005825 (WhatsApp)
Expert Review
This cable is simple and tough. It does one job well. The 5 m length fits most cabinet layouts. The SUB-D connector locks tight. It works with both M340 and M580. For a shared I/O platform, it is a safe pick. No surprises.
Manager’s Insight
Buy this cable when you expand a Modicon rack. It avoids custom wiring. The 30 m total limit keeps signal quality high. Keep one spare on site. Downtime costs more than the cable.
Best For
- Modicon M340 multi-rack systems
- Modicon M580 multi-rack systems
- Factory automation panels
- Process control cabinets
FAQ
Q: Can I use this cable outdoors?
A: No. Use it inside a cabinet. Keep it dry and cool.
Q: What if my run is longer than 30 m?
A: You need a repeater or a different bus. Do not exceed the limit.
Q: Does it work with M580 only?
A: No. It also works with M340 racks. Both share the X80 I/O platform.
Q: How do I know it fits?
A: Check your rack has a 9-pin SUB-D X-bus port.
Q: What is the return policy?
A: We offer a 12-month warranty. Contact us for returns.
Q: Can I order just one?
A: Yes. We ship small orders fast via FedEx, UPS, or DHL.
Buying Advice
- Count your racks and cable path first.
- Buy extra length if layout may change.
- Order a spare to avoid line stops.
- Ask us for a quote on larger projects.
