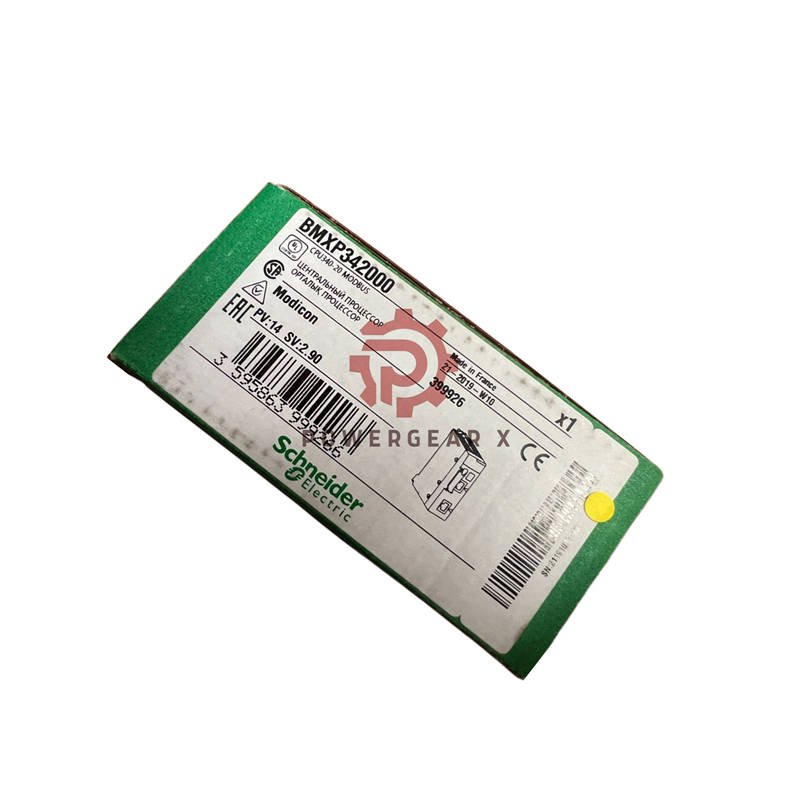

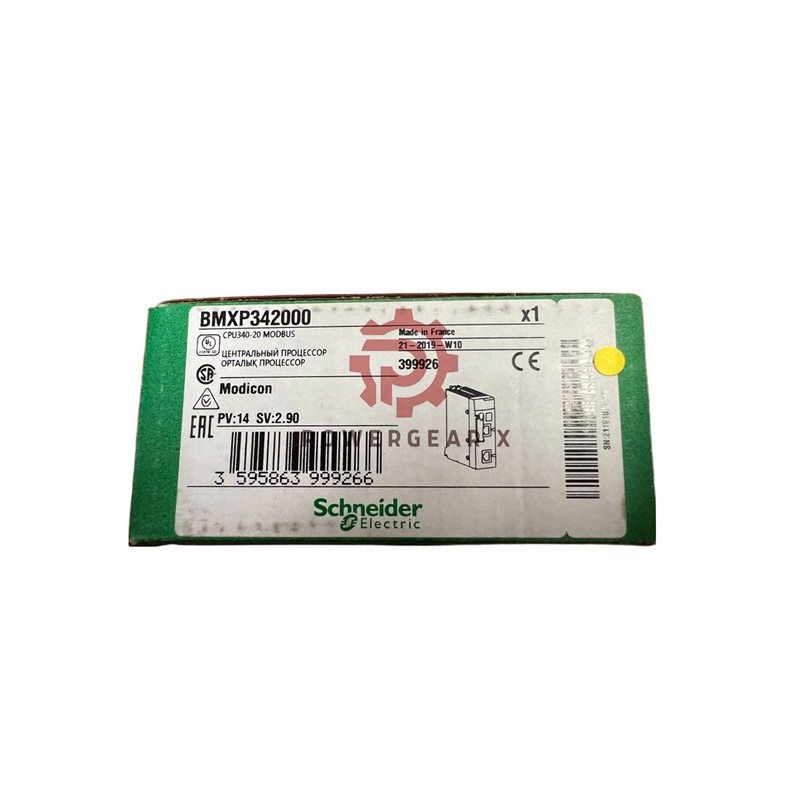

Modicon M340 Compact Processor: Efficient Automation Control
The BMXP342000 processor delivers reliable performance for medium-scale automation applications. This Modicon M340 module supports up to 1024 discrete I/O and 256 analog I/O with versatile communication capabilities.
Technical Specifications
- Brand: Schneider Electric
- Model: Modicon M340 BMXP342000
- Discrete I/O: 1024 points maximum
- Analog I/O: 256 points maximum
- Memory: 4MB RAM (3.5MB program, 256KB data)
- Communication: Modbus RTU/ASCII, RS232C, RS485
- USB Port: 12 Mbit/s programming interface
- Processing Speed: 0.18µs Boolean instructions
- Operating Temperature: 0°C to 60°C
- Power Consumption: 72mA at 24V DC
- Weight: 0.2 kg
- Protection Rating: IP20
Communication Capabilities
- Modbus RTU and ASCII protocol support
- RS232C and RS485 serial communication
- USB programming and configuration port
- Supports 2 Ethernet communication modules
- 4 AS-Interface module compatibility
- Up to 32 devices per communication segment
- 1000 meter maximum bus length (isolated)
Performance Features
- 32 event tasks for complex automation
- 1 cyclic master task and 1 periodic fast task
- Diagnostic and event counters for Modbus
- BMXRMS008MP memory card for backup
- Fast task overhead: 0.2ms
- Master task overhead: 1.05ms
- Floating point operation: 1.74µs
Packaging & Shipping
- Unit dimensions: 5.5 × 11.0 × 11.5 cm
- Unit weight: 240 grams
- Bulk packaging: 15 units per case
- Shipping: FedEx, UPS, DHL available
- 12-month manufacturer warranty
- Real-time tracking provided
- International shipping options
Frequently Asked Questions
- What communication protocols are supported?
Modbus RTU/ASCII, RS232C, RS485, and USB programming - How many I/O points can this processor handle?
Up to 1024 discrete and 256 analog I/O points - What memory backup options are available?
BMXRMS008MP memory card for program and data backup - Can I expand the communication capabilities?
Yes, supports 2 Ethernet and 4 AS-Interface modules - Is this suitable for harsh environments?
IP20 rating with hazardous location class I division 2 certification
