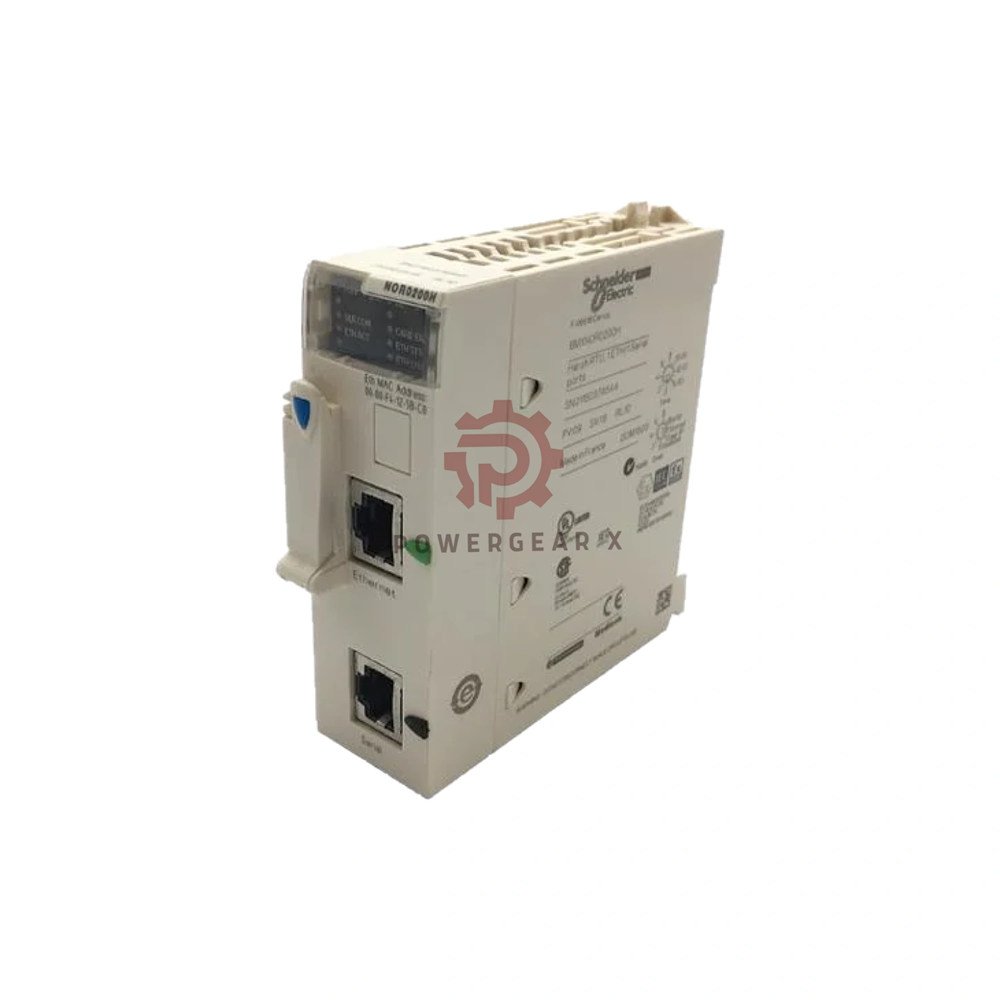

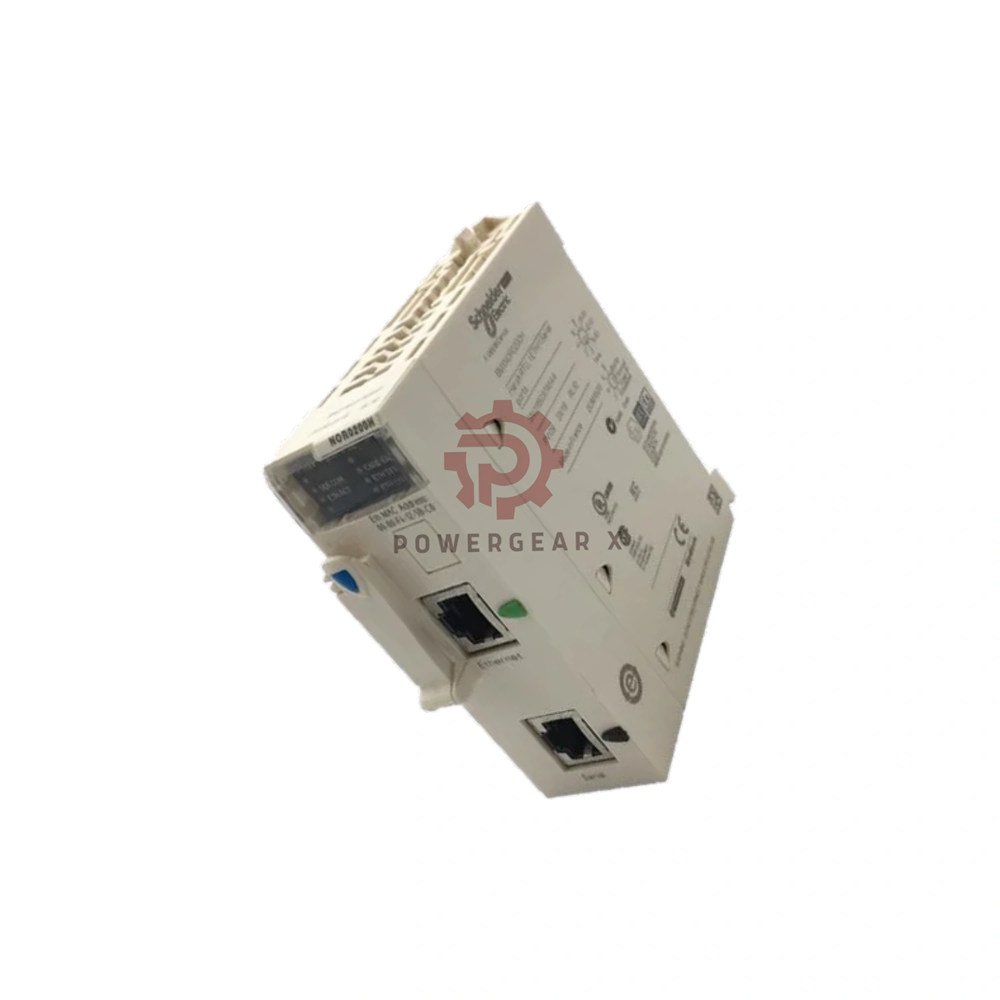

BMXNOR0200 Modicon X80 Modbus RTU Serial Module Schneider Electric

BMXNOR0200 Overview

• Model BMXNOR0200 is a Schneider Electric serial module.
• It belongs to the Modicon X80 series.
• It works as a remote I/O RTU unit.
• It links distributed I/O over serial lines.
• It fits M340 and M580 platforms.
• It is Active as of 2026-09.

Technical Data

• Brand: Schneider Electric
• Model: BMXNOR0200
• Series: Modicon X80
• Type: Remote I/O RTU serial module
• Communication
  • Built-in port: 1 x RS232 or RS485
  • Protocol: Modbus RTU
  • Feature: Remote terminal unit for distributed I/O
  • Application channels: 1
  • Slot use: 1 slot
• Electrical
  • Supply: 24 V DC via backplane
  • Power use: 1.9 W
  • Bus current: 80 mA at 24 V DC
• Environment
  • Operating heat: 0°C to +60°C
  • Storage cold and heat: -25°C to +70°C
  • Humidity: 5% to 95%, no condensation
  • Protection: IP20
• Physical
  • Backplane: X-bus
  • Size: 100 x 28 x 93 mm
  • Weight: 0.15 kg
• Lifecycle
  • Status: Active
  • Shared I/O platform: M340 and M580
  • Last check: 2026-09

Expert Review

• The BMXNOR0200 fills a clear role for serial remote I/O.
• Modbus RTU support keeps it simple to deploy.
• One RS232 or RS485 port cuts wiring work.
• It uses just 1.9 W, so panel heat stays low.
• The X-bus backplane keeps setup clean.
• It is not a high speed data gateway.
• Use it for stable, low rate serial links.

Manager’s Insight

• This unit lowers spare part spread across M340 and M580 lines.
• The Active status cuts long term support risk.
• IP20 means it needs a clean panel.
• One slot use saves rack room.
• Keep spare modules for fast field swaps.
• Good choice for plants with legacy serial devices.

Best Fit Equipment and Applications

• Modicon M340 control panels
• Modicon M580 process systems
• Remote I/O cabinets in large plants
• Water and waste water sites
• Oil and gas flow stations
• Power and energy sub stations
• Factory lines with long cable runs
• Legacy Modbus RTU device links

FAQ

• Q: What port does the BMXNOR0200 have?
  A: It has one RS232 or RS485 port.
• Q: Which protocol does it speak?
  A: It speaks Modbus RTU.
• Q: How many slots does it need?
  A: It needs one X80 slot.
• Q: How much power does it draw?
  A: It uses 1.9 W and 80 mA at 24 V DC.
• Q: What is the warranty?
  A: It comes with a 12 month warranty.
• Q: How fast does it ship?
  A: Orders leave in 12 to 24 hours.
• Q: Which couriers do you use?
  A: We use FedEx, UPS, and DHL.
• Q: Can it replace a full gateway?
  A: No, it fits simple serial RTU tasks.
• Q: Is it good for new projects?
  A: Yes, it is Active and well supported.
• Q: What should I check first?
  A: Check your rack type, port need, and cable length.
• Q: How do I buy a spare?
  A: Email sales@powergearx.com or message +86 18030005825.

Buying Guide

• Confirm your rack. Use M340 or M580.
• Check the port type you need. Pick RS232 or RS485.
• Count remote drops. One port suits small networks.
• Plan cable route. Keep serial lines short and clean.
• Check panel space. The size is 100 x 28 x 93 mm.
• Order spare units for critical loops.
• Ask for stock before large orders.
• Email sales@powergearx.com for bulk quotes.
• Message +86 18030005825 for urgent needs.
