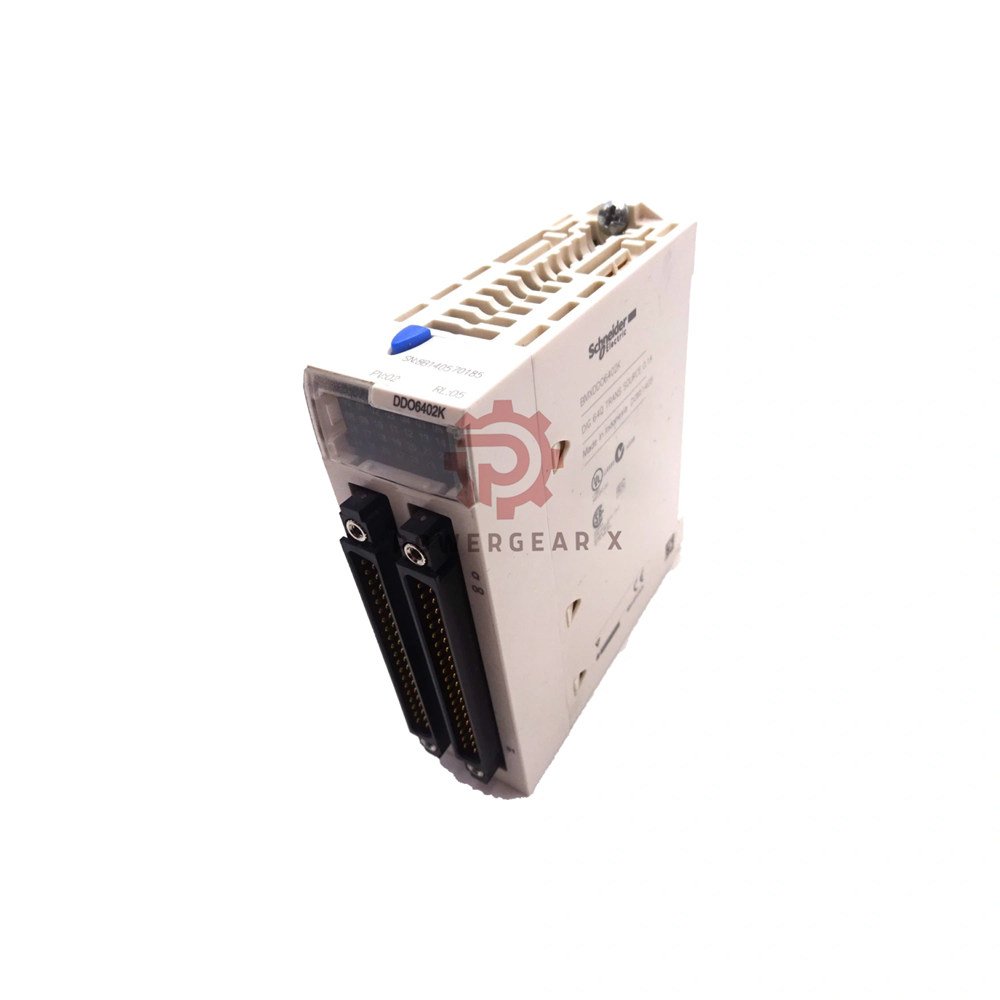

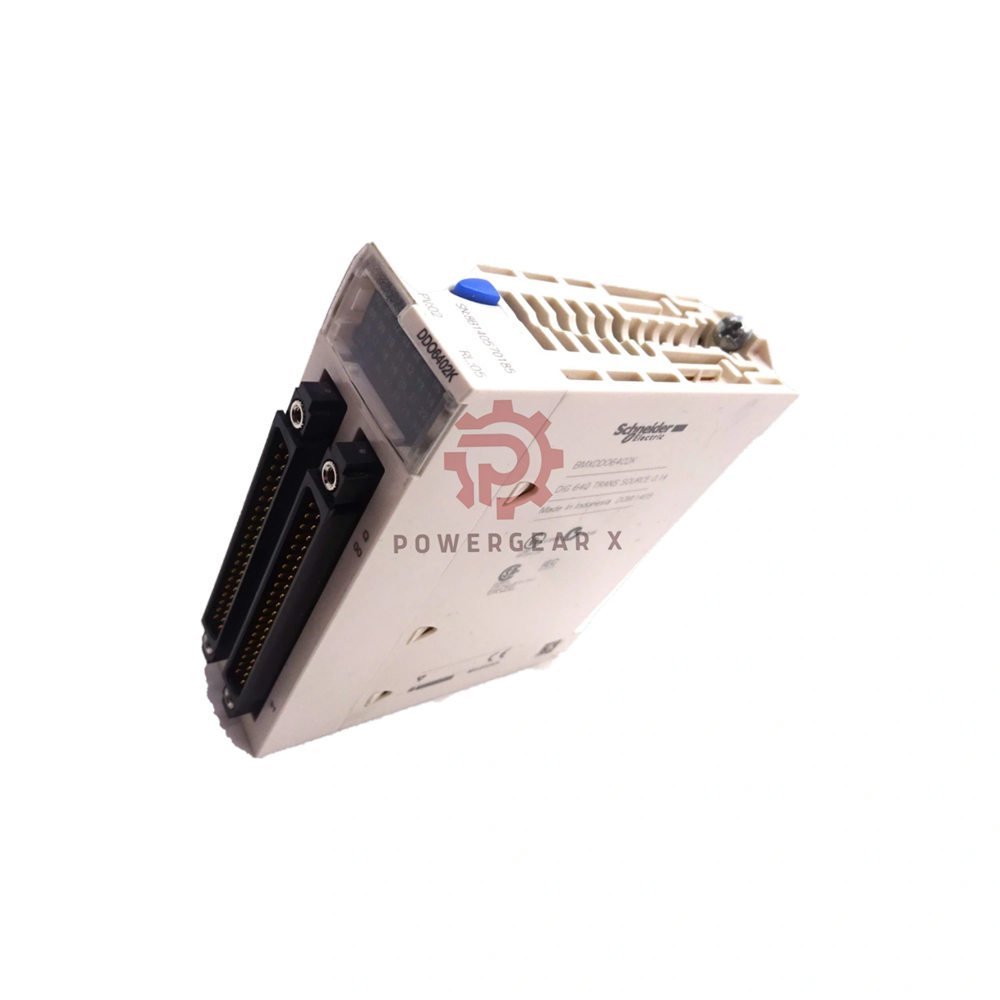

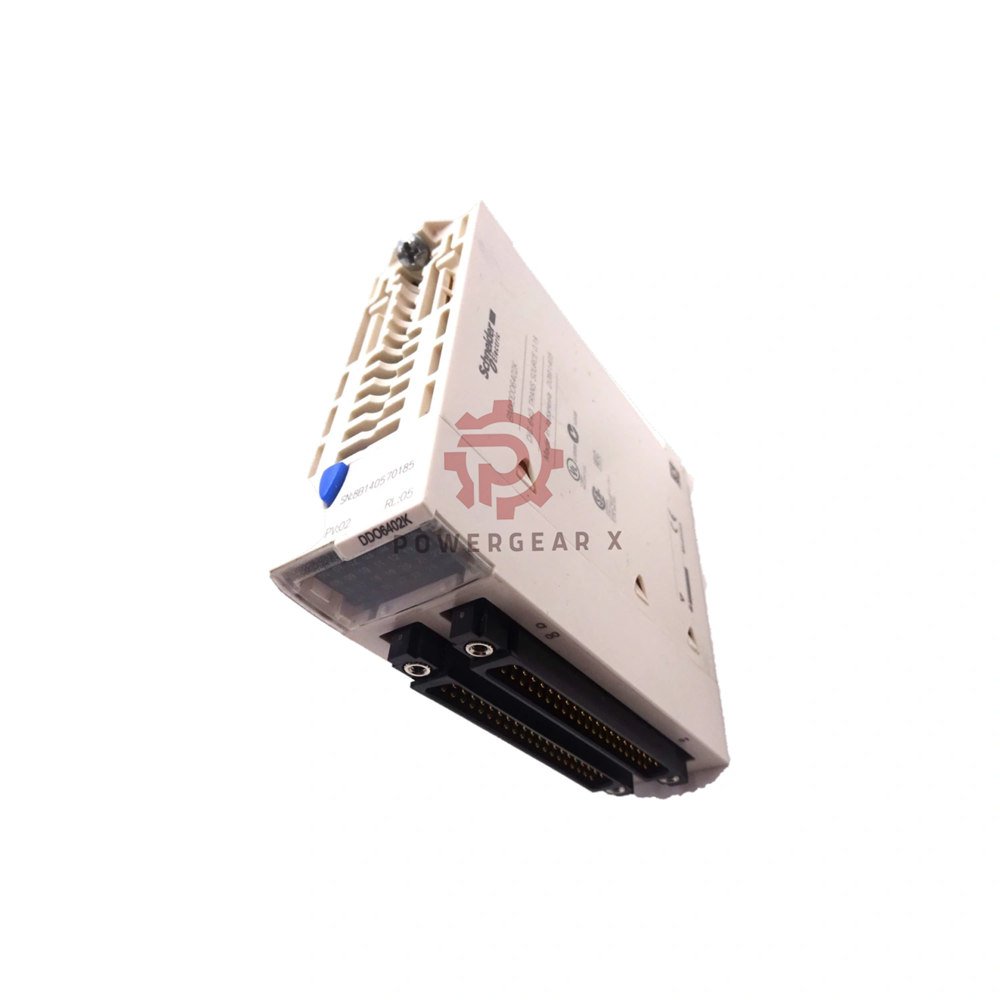

BMXDDO6402K Schneider Modicon X80 64-Channel Discrete Output Module

BMXDDO6402K Schneider Electric Modicon X80 Discrete Output Module

BMXDDO6402K is a high-density discrete output module from Schneider Electric. It is part of the Modicon X80 series. This module packs 64 transistor outputs into one narrow slice. Each channel switches 24 V DC. It saves panel space and cuts wiring time. It works with Modicon M340 and M580 controllers.

Top Reasons to Choose BMXDDO6402K

• 64 outputs in one slot: High density saves rack space.
• 24 V DC transistor: Fast switching for solenoids, relays, and lamps.
• Group-to-group isolation: Protects your signals from noise.
• 40-pin terminal block: One connector for all 64 channels.
• Clear status LED: Quick check on module health.
• Wide temperature range: Works from 0 to +60 °C.

Technical Data

• Brand: Schneider Electric
• Model: BMXDDO6402K
• Series: Modicon X80
• Module type: Discrete output, 64 channels
• Signal type: Transistor output
• Output range: 24 V DC
• Resolution: Not applicable (discrete)
• Accuracy: Not applicable (discrete)
• Isolation: Group-to-group isolation
• Diagnostics: Module status LED
• Connection: 40-pin terminal block (high density)
• Supply voltage: 24 V DC (field)
• Power consumption: 5.3 W
• Bus current: 220 mA at 24 V DC
• Operating temperature: 0 to +60 °C
• Storage temperature: -25 to +70 °C
• Relative humidity: 5% to 95% (non-condensing)
• Protection rating: IP20
• Dimensions (H×W×D): 100 × 28 × 93 mm
• Weight: 0.18 kg
• Lifecycle: Active (shared I/O platform for M340 and M580)

Installation Steps

• Slide the module into the X80 rack until it clicks.
• Connect 24 V DC field power to the terminal block.
• Wire outputs to your loads. Use the 40-pin connector.
• Keep output cables apart from analog and communication lines.
• Check the status LED after power-up. Green means good.

Setup and Care

• Configure channels in Unity Pro or EcoStruxure Control Expert.
• Test each group before you run the machine.
• Keep the module dry and dust-free. IP20 needs a cabinet.
• Check terminal screws for tightness during planned stops.

Works With

• Modicon M340 PLCs
• Modicon M580 ePACs
• X80 rack and power supply modules
• Other X80 discrete and analog I/O slices

Standards and Approvals

• CE marked for European use.
• UL listed for North America.
• RoHS compliant.
• IP20 rated for cabinet mounting.

Box Contents and Terms

• 1 × BMXDDO6402K discrete output module.
• 1 × Quick start guide.
• Warranty: 12 months.
• Ship time: 12-24 hours.
• Carriers: FedEx, UPS, DHL.

Expert Review

The BMXDDO6402K is a space saver. You get 64 outputs in just 28 mm of rack width. The transistor type switches fast, so it suits high-cycle tasks. Group-to-group isolation helps in mixed panels. The 40-pin connector means one plug for all channels. That cuts wiring mistakes. One note: 220 mA bus draw is not tiny. Check your rack power budget. For large machines with many outputs, this module is a smart pick. Powergear X Automation Limited stocks it. Email sales@powergearx.com or WhatsApp +86 18030005825 for pricing.

Manager’s Insight

I see the BMXDDO6402K in automotive lines, sorting systems, and large valve manifolds. It shines when you need many outputs but have little rack room. The 24 V DC transistor design handles solenoids and pilot relays well. The 0.18 kg weight keeps shipping costs low. For harsh plants, add surge protection on long cables. We ship same day from stock. FedEx, UPS, and DHL are ready at checkout. Call +86 18030005825 for bulk deals.

Best Applications and Equipment

• Modicon M340 and M580 control systems.
• Automotive assembly and welding lines.
• Packaging and palletizing machines.
• Sorting and conveyor systems.
• Valve manifolds and solenoid banks.
• Indicator lamps and pilot relays.
• Water treatment and process panels.

FAQ

Q: How many outputs does this module have?
A: It has 64 transistor outputs, all rated for 24 V DC.

Q: What connector does it use?
A: A single 40-pin terminal block. That is one plug for all channels.

Q: Can I use it with Modicon M580?
A: Yes. It works with both M340 and M580 controllers.

Q: What is the warranty period?
A: 12 months from the delivery date.

Q: How fast do you ship?
A: In 12-24 hours via FedEx, UPS, or DHL.

Q: I need 128 outputs. What should I do?
A: Just add a second BMXDDO6402K to the same rack. The X80 bus supports many slices.

Q: Does it need a separate field supply?
A: Yes. The outputs need 24 V DC field power. The rack powers the logic side.

Buying Guide

• Count your output points. Need 64? This one fits.
• Check your controller. The BMXDDO6402K suits M340 and M580.
• Plan for a 40-pin cable or terminal block. Order it with the module.
• Verify rack power. The module draws 220 mA at 24 V DC.
• Buy from Powergear X Automation Limited for genuine parts and fast shipping.

For help, email sales@powergearx.com or WhatsApp +86 18030005825.
