Product details

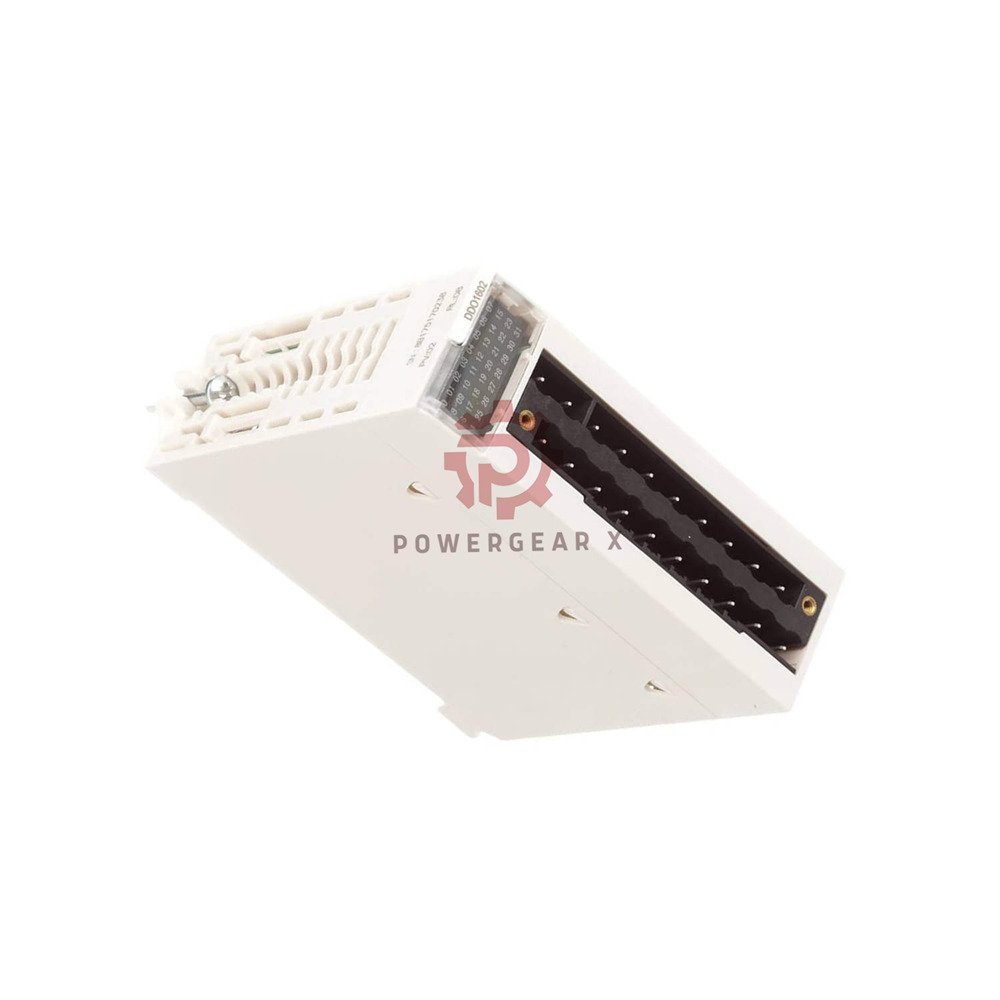

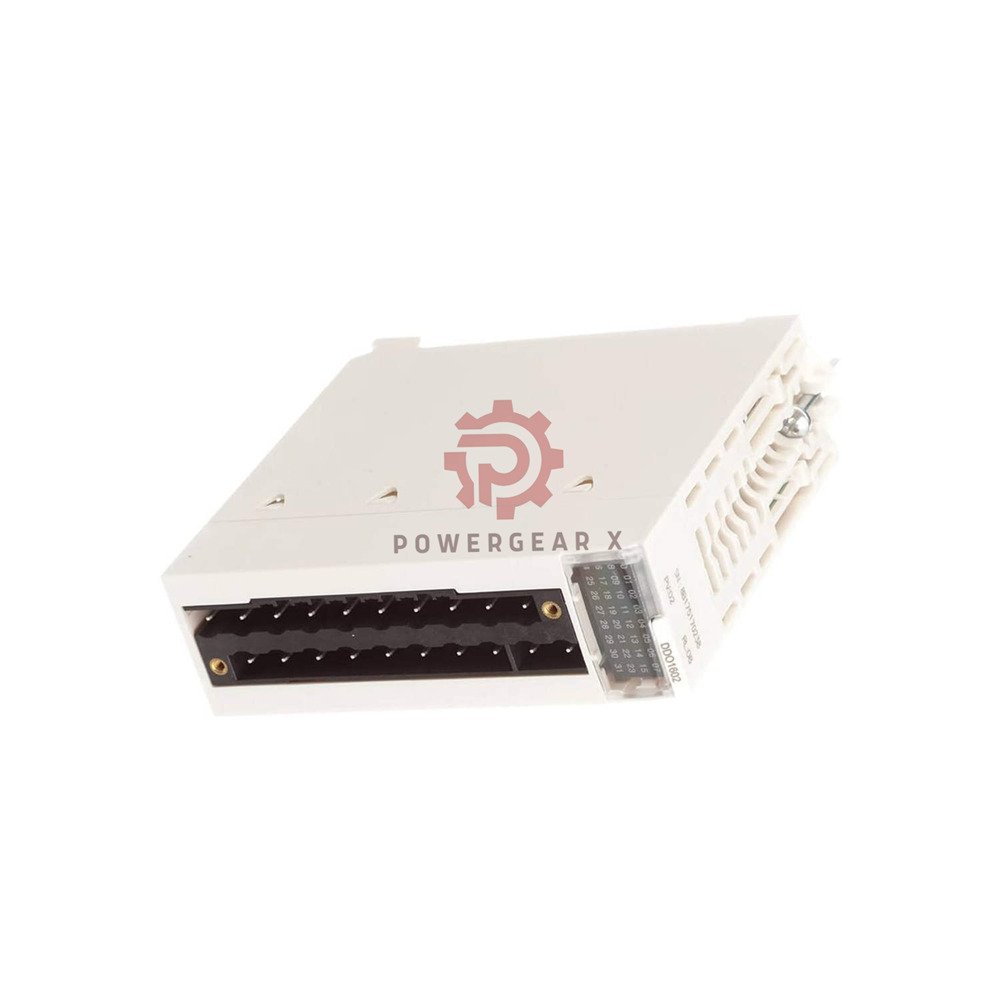

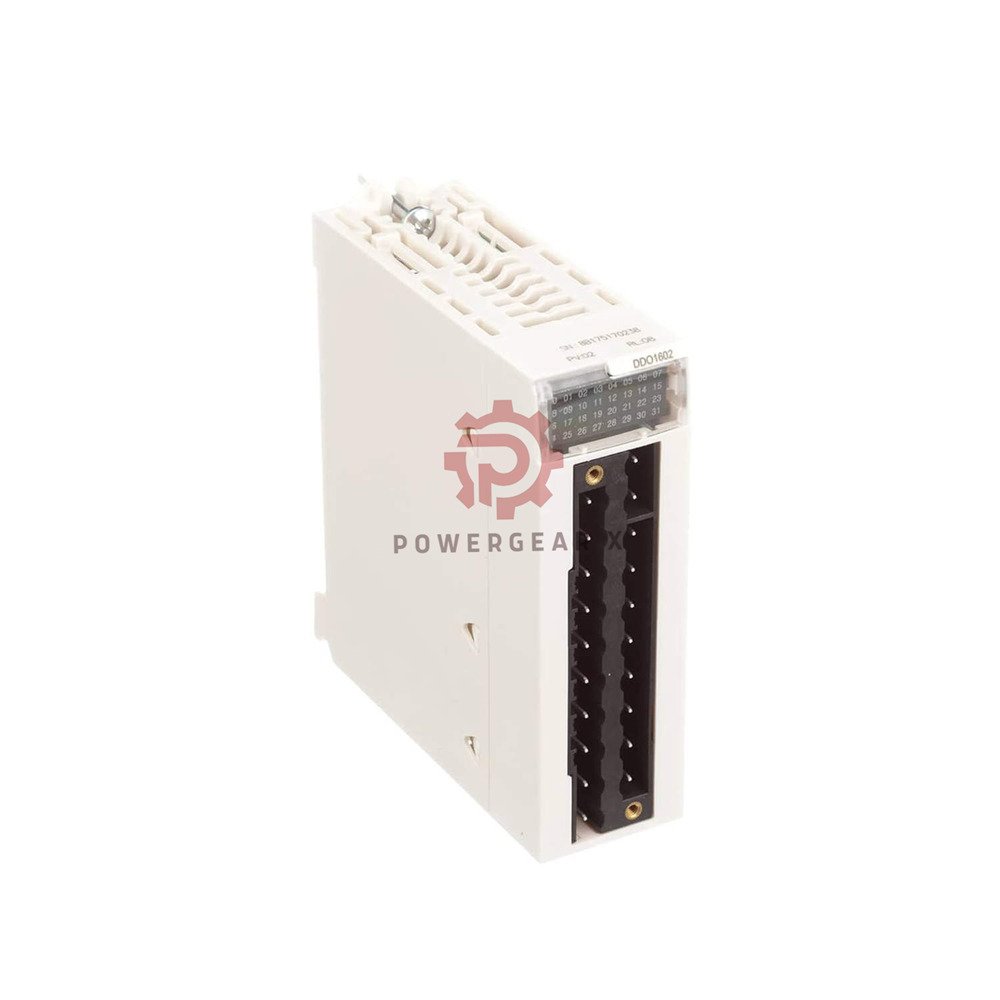

BMXDDO1602 – Discrete Output Module
Brand: Modicon | Series: X80 | Type: 16-Channel Solid-State Output
This 16-channel 24 V DC positive logic output module drives actuators, relays, and indicators. It offers short-circuit, overload, and reverse polarity protection. With fast 1.2 ms response and high MTBF, it ensures reliable machine control.
Key Features
- 16 solid-state outputs – 24 V DC, 0.5 A per channel
- Fast response – 1.2 ms on/off switching
- Built-in protection – electronic circuit breaker, current limiter, transil diode
- High reliability – MTBF 410,000 hours
- Parallel outputs – up to 2 channels can be paralleled
Technical Specifications
- Output voltage – 19…30 V DC (nominal 24 V)
- Current per channel – 0.625 A max
- Total current – 10 A per module
- Leakage current – ≤0.5 mA (state 0)
- Voltage drop – <1.2 V (state 1)
- Response time – 1.2 ms (on and off)
- Switching frequency – 0.5 / L·I² Hz (load dependent)
- Minimum load resistance – >48 Ω (ohmic)
- Tungsten load – 6 W max
- Power dissipation – 4 W
- Insulation resistance – >10 MΩ at 500 V DC
- Dielectric strength – 1500 V AC for 1 min
- Current consumption – 79 mA at 3.3 V DC
- Operating temperature – 0…60 °C
- Storage temperature – -40…85 °C
- Humidity – 5…95 % at 55 °C (non-condensing)
- Altitude – 0…2000 m (derating above 2000 m)
- Vibration – 3 gn
- Shock – 30 gn
- IP rating – IP20
- Weight – 0.12 kg
Protection & Diagnostics
- Short-circuit – external 2 A fuse + electronic limiter
- Overload – electronic circuit breaker (1.5 In < Id < 2 In)
- Overvoltage – transil diode clamp
- Reverse polarity – reverse mounted diode
- Diagnostics – voltage threshold detection (<14 V / >18 V)
- Status LEDs – RUN (green), ERR (red), I/O (red), per-channel (green)
Installation & Compatibility
- Mounting – snap onto DIN rail (X80 rack compatible)
- Bus connection – via X80 backplane
- Parallel outputs – 2 channels max
- External fuse – 2 A per output (user supplied)
Manager’s Insight
“The BMXDDO1602 combines robust protection with high switching speed. Its electronic circuit breaker reduces downtime. The 410k-hour MTBF makes it a solid choice for critical production lines.”
Expert Review
“This module handles inductive loads well. The voltage drop is low, and diagnostics are clear. It is a reliable workhorse for 24 V DC output applications in Modicon X80 systems.”
Applications
- PLC control panels
- Conveyor systems
- Packaging machinery
- Valve and actuator control
- Lighting and indicator panels
- Process automation
Comparison Models
- BMXDDO3202 – 32-channel version
- BMXDDO1602K – with spring terminals
- BMXDDO0802 – 8-channel compact
- BMXDDM16022 – mixed I/O module
FAQ
- Can I connect inductive loads directly?
Yes, but use a freewheeling diode to protect the output. - What is the maximum parallel current?
When paralleling 2 channels, total current is 1.0 A (0.5 A each). - Does it support sinking output?
No, this module is positive logic (sourcing). - How do I reset an overload trip?
The electronic circuit breaker resets automatically after cooling. - Is external wiring needed for protection?
Only add a 2 A fuse for short-circuit protection per output.
Buying Guide
- Load type – check if inductive or resistive.
- Current – sum all output currents; do not exceed 10 A.
- Environment – ensure temperature ≤60 °C and altitude ≤2000 m.
- Spare – keep one module for quick replacement.
- Fuse – order external 2 A fuses separately.
Warranty & Shipping
- Warranty – 12 months against defects.
- Shipping – dispatched within 12-24 hours.
- Carriers – FedEx, UPS, DHL with tracking.
