Product details
Product Snapshot

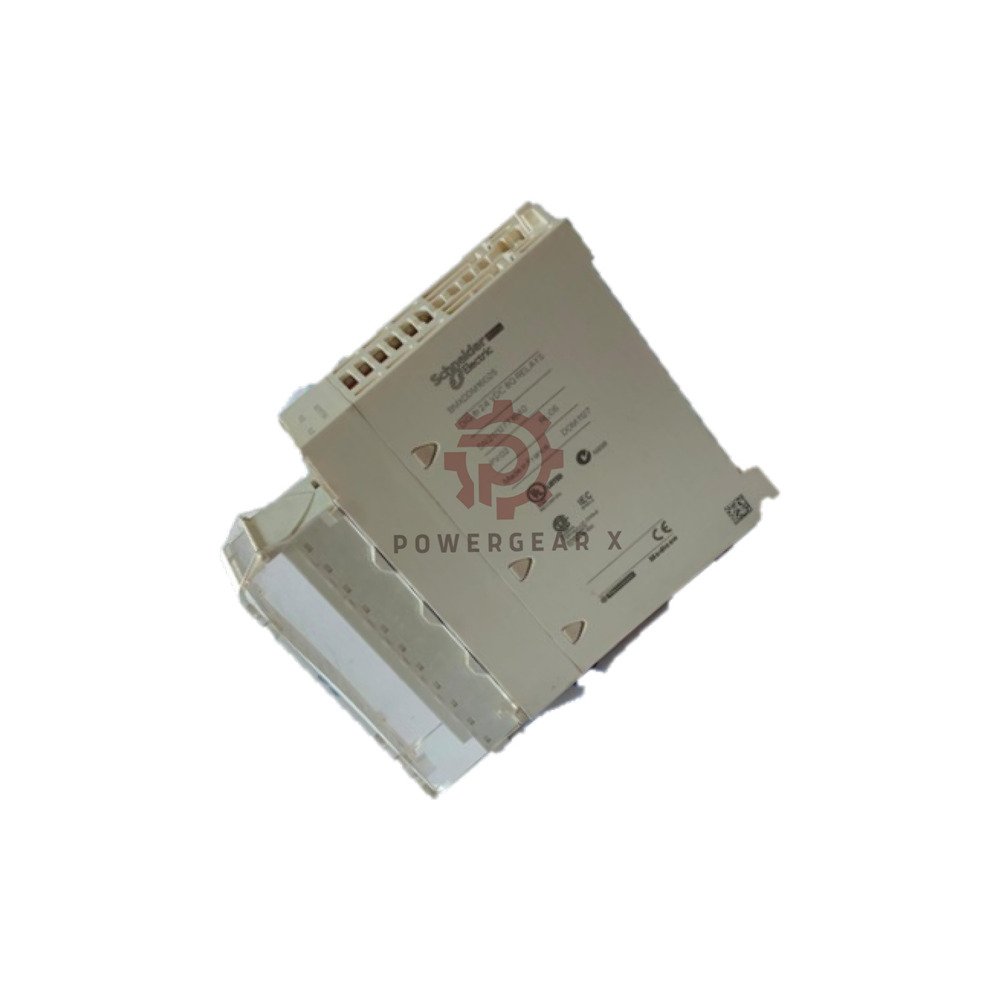

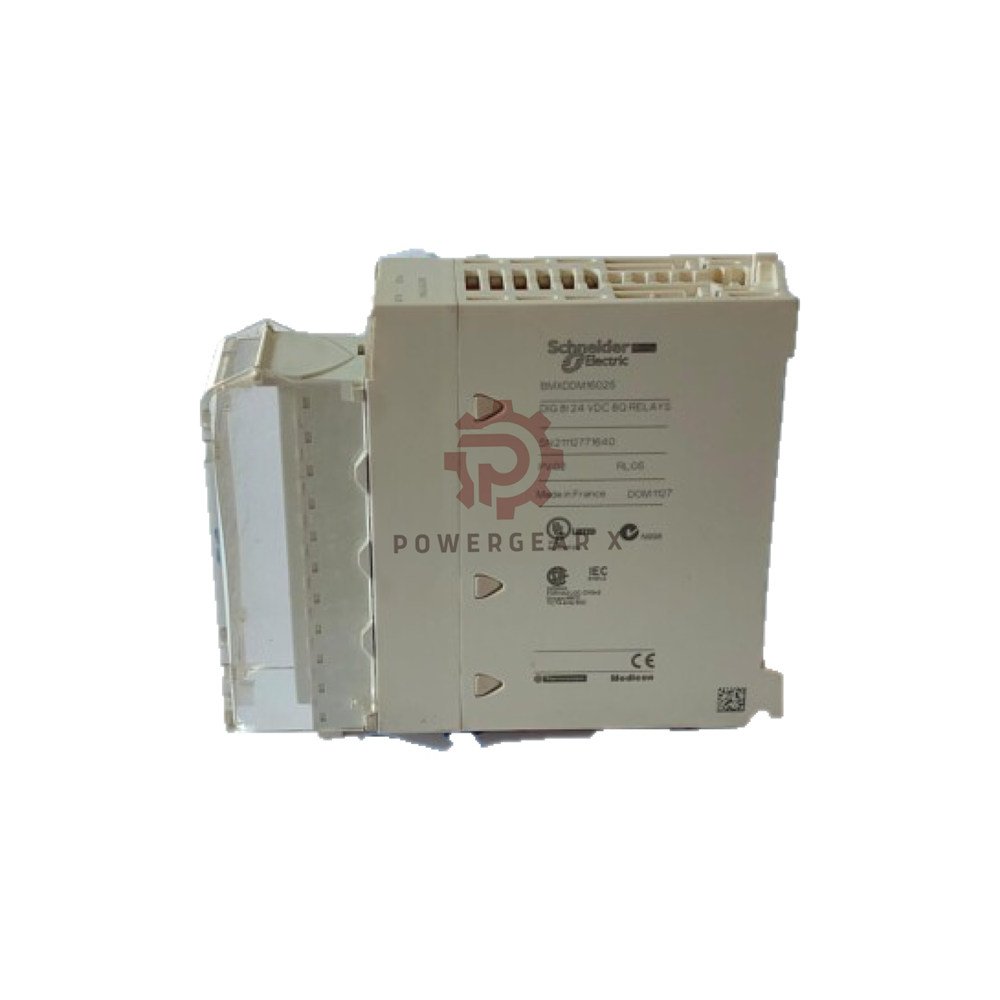

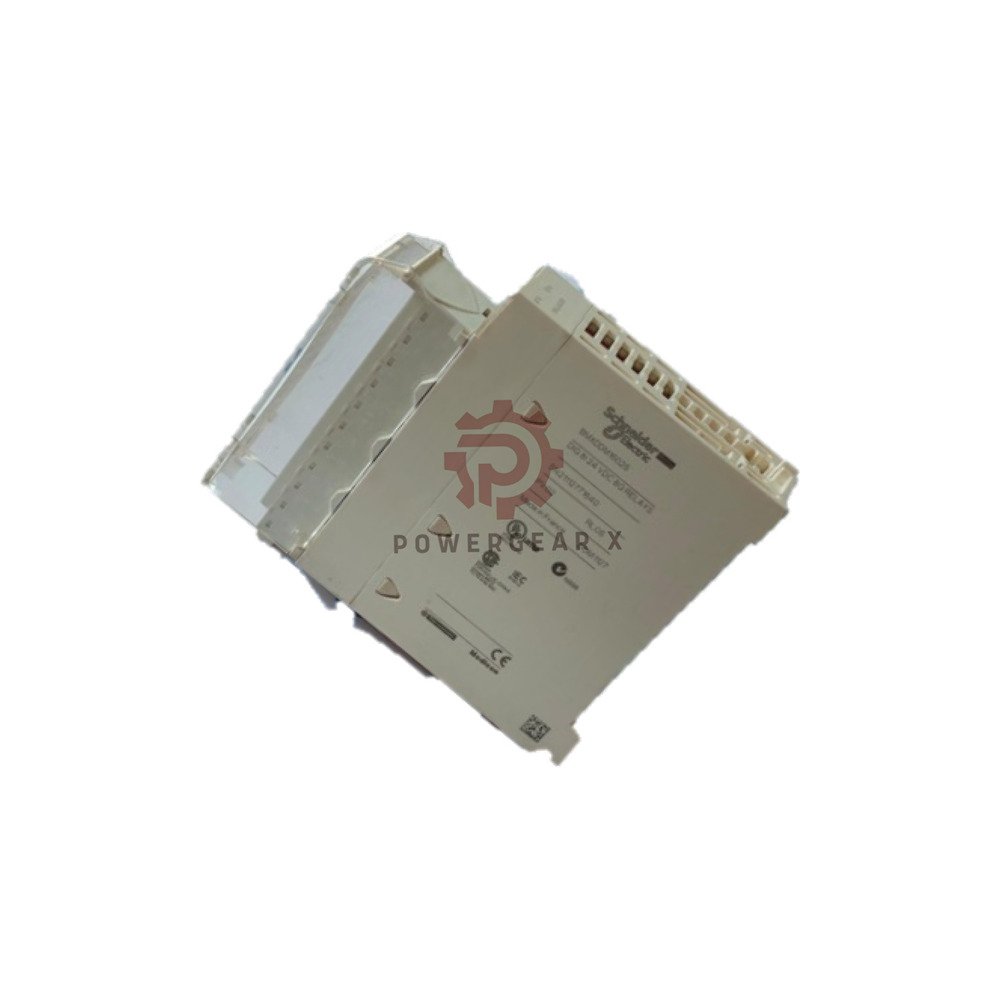

BMXDDM16025 is a mixed discrete I/O module from Schneider Electric.
It belongs to the Modicon X80 series.
It packs 16 channels into one slim module.
You get 8 digital inputs and 8 relay outputs.
It works with both M340 and M580 platforms.
Quick Highlights
- Mixed Design: Inputs and outputs share one module.
- Relay Outputs: Switch AC and DC loads with ease.
- Wide Load Range: 24-240 V AC or 19-30 V DC.
- Galvanic Isolation: Input-to-output separation cuts noise.
- Status LED: Fast visual check of module health.
- Compact Body: Only 28 mm wide, saves panel space.
Technical Data
- Brand: Schneider Electric
- Model: BMXDDM16025
- Series: Modicon X80
- Type: Mixed Discrete I/O Module
- Channels: 16 total, 8 DI plus 8 DO
- Input Signal: 24 V DC positive logic, 3.5 mA
- Input Range: 24 V DC
- Output Type: Relay
- Output Range: 24-240 V AC or 19-30 V DC
- Resolution: Not applicable, discrete signals
- Accuracy: Not applicable, discrete signals
- Isolation: Input-to-output isolation
- Diagnostics: Module status LED
- Connection: 20-pin terminal block
- Supply Voltage: 24 V DC or field supply
- Power Use: 2.6 W
- Bus Current: 110 mA at 24 V DC
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -25°C to +70°C
- Humidity: 5% to 95%, non-condensing
- Protection: IP20
- Dimensions: 100 × 28 × 93 mm
- Weight: 0.16 kg
- Lifecycle: Active, shared platform for M340 and M580
Where It Fits
Best for panel builders and machine makers.
It suits small control cabinets with mixed signal needs.
Common uses include packaging lines and conveyor controls.
It also fits water treatment, HVAC, and building systems.
Process skids and test benches benefit from its relay outputs.
Any M340 or M580 rack can host this module.
Expert Review
This module saves space by combining inputs and outputs.
Relay outputs handle both AC and DC loads without extra parts.
The 3.5 mA input draw is gentle on field devices.
Isolation helps in noisy factory floors.
Installation is simple with the 20-pin terminal block.
One limit is relay switching speed. It is not for high-speed pulses.
For most discrete tasks, it is a solid, low-risk choice.
Manager’s Insight
Keep this module in stock for M340 and M580 projects.
Its shared platform reduces spare part variety.
Buyers often pair it with 16-channel digital-only modules.
Plan spare terminal blocks with each order.
Relay contacts wear over time. Track cycles in heavy use.
Standardizing on X80 cuts training and inventory costs.
FAQ
Q: Can the relay outputs switch AC and DC loads?
A: Yes. The range is 24-240 V AC or 19-30 V DC.
Q: Does this module work with M580 CPUs?
A: Yes. It fits both M340 and M580 racks.
Q: How many wires does the terminal block take?
A: It uses a 20-pin terminal block for all channels.
Q: Experience tip: What wears out first?
A: Relay contacts. Count switching cycles on fast machines.
Q: Buying advice: When should I pick this over a digital-only module?
A: Choose it when you need both inputs and relay outputs in one slot.
Q: What warranty and shipping do you offer?
A: A 12-month warranty applies. Orders ship in 12-24 hours.
Q: Which couriers do you use?
A: We ship by FedEx, UPS, and DHL.
