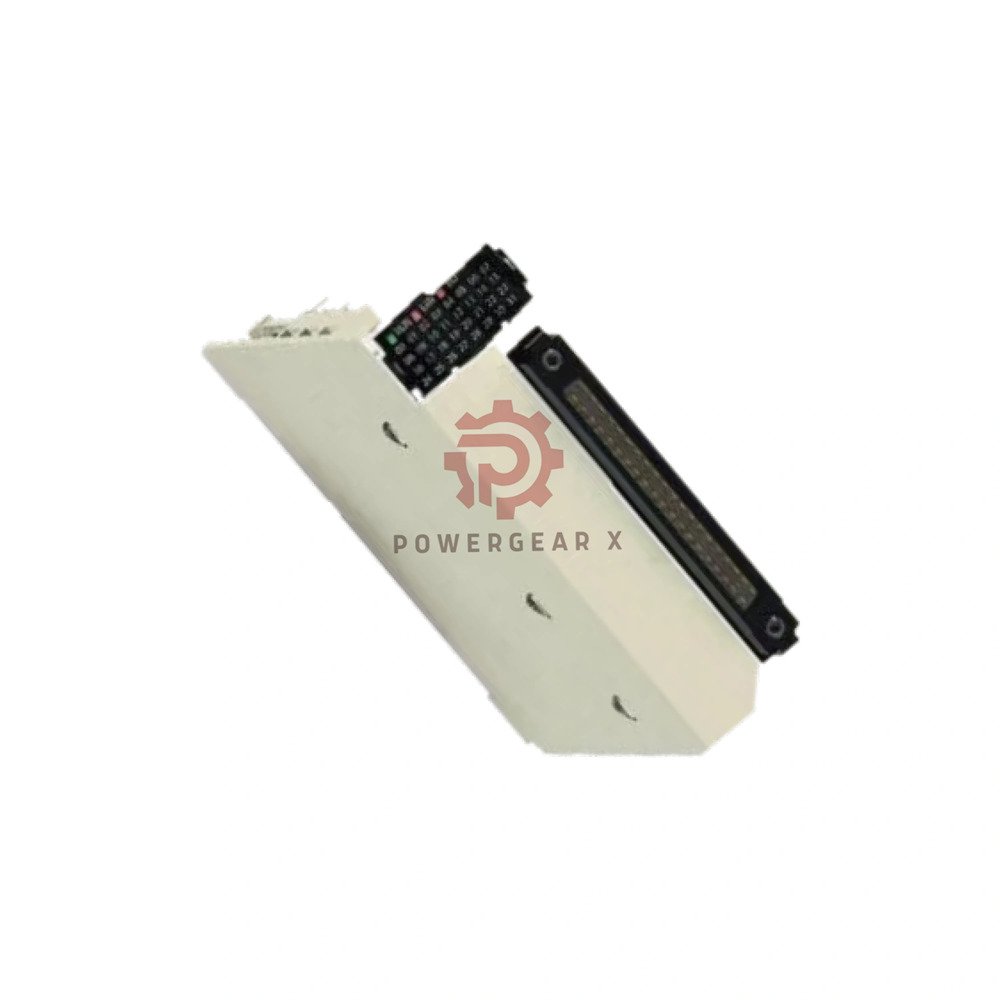

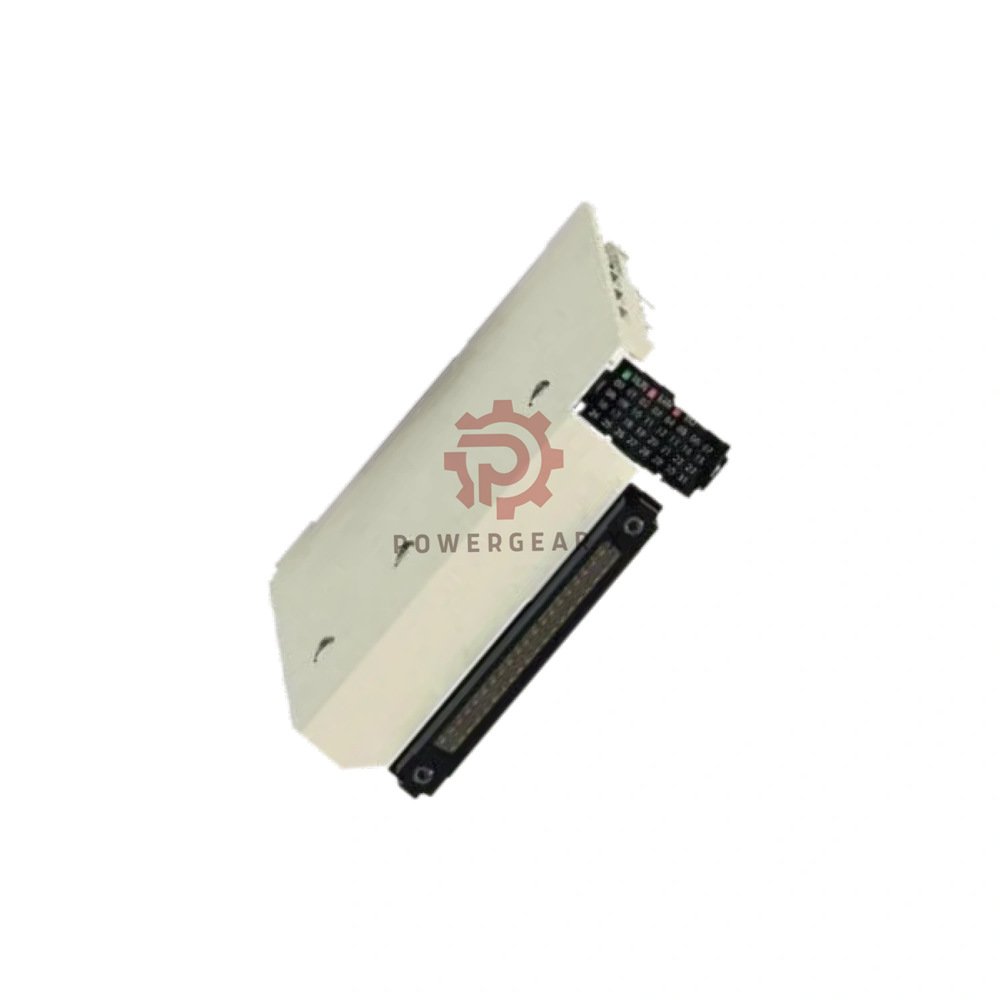

BMXDDI1603 Schneider Modicon X80 16-Channel Discrete Input Module

Product Overview

• Model BMXDDI1603 is a Schneider Electric Modicon X80 discrete input module.
• It offers 16 channels for 24 V DC industrial signals.
• This module fits M340 and M580 control platforms.
• It supports sink and source wiring with positive logic.
• Each channel has channel-to-channel isolation for noise immunity.
• LEDs show module status and per-channel status.
• The module uses a 20-pin terminal block for fast wiring.
• It suits machine control, process lines, and factory automation.
• Lifecycle status is Active, verified in 2026-09.

Technical Specifications

• Brand: Schneider Electric
• Model: BMXDDI1603
• Series: Modicon X80
• Module type: Discrete input module
• Channels: 16
• Signal type: Discrete input, sink or source, positive logic
• Measurement range: 24 V DC
• Resolution: Not applicable for discrete signals
• Accuracy: Not applicable for discrete signals
• Frequency response: Not applicable for standard discrete input use
• Sensitivity: Designed for 24 V DC logic levels
• Linearity: Not applicable for on or off input states
• Isolation: Channel-to-channel isolation
• Diagnostics: Module status LED and per-channel status LED
• Connection: 20-pin terminal block
• Supply voltage: 24 V DC via backplane or field
• Power consumption: 2.6 W
• Bus current: 110 mA at 24 V DC
• Operating temperature: 0°C to +60°C
• Storage temperature: -25°C to +70°C
• Relative humidity: 5% to 95%, non-condensing
• Protection rating: IP20
• Dimensions: 100 x 28 x 93 mm
• Weight: 0.15 kg
• Lifecycle: Active, shared I/O platform for M340 and M580

Installation Guide

• Mount the module on a compatible Modicon X80 rack.
• Keep the cabinet clean and dry.
• Use the 20-pin terminal block for field wiring.
• Check 24 V DC polarity before power-up.
• Follow local wiring rules for industrial panels.
• Keep signal wires away from high-power cables.
• Tighten terminals to the correct torque.
• Confirm the IP20 protection limit in the panel.

Commissioning and Maintenance

• Check the module status LED after power-up.
• Use the per-channel LED for quick fault finding.
• Test each input with a known 24 V DC signal.
• Label channels to reduce maintenance time.
• Inspect terminals during routine service.
• Replace the module only when the rack is powered down.
• Keep spare terminal blocks for fast swaps.

Compatibility Notes

• Works with Schneider Electric M340 controllers.
• Works with Schneider Electric M580 controllers.
• Belongs to the Modicon X80 shared I/O platform.
• Fits standard X80 racks and backplanes.
• Uses a 20-pin terminal block for field connections.
• Supports positive logic sink or source input wiring.

Certifications and Compliance

• Built for industrial automation environments.
• Follows Schneider Electric quality standards.
• Designed for IP20 cabinet installation.
• Meets common industrial EMC expectations when installed correctly.
• Check regional rules for final machine certification.

Packing List

• 1 x BMXDDI1603 discrete input module
• 1 x 20-pin terminal block
• 1 x quick start or documentation sheet, if supplied
• Protective factory packaging

Warranty and Shipping

• 12-month warranty covers manufacturing defects.
• Orders ship in 12-24 hours after payment.
• Express options include FedEx, UPS, and DHL.
• Tracking details go out after dispatch.
• Contact sales@powergearx.com for stock checks.
• Call or message +86 18030005825 for urgent orders.

Expert Review

• The BMXDDI1603 is a practical choice for dense 24 V DC input tasks.
• 16 channels save rack space in crowded panels.
• Channel-to-channel isolation helps in noisy plants.
• LED diagnostics cut troubleshooting time.
• The 20-pin terminal block speeds up wiring and swaps.
• It is not a high-speed counter or analog module.
• Use it for standard on or off signals.
• It fits teams already using M340 or M580 hardware.

Manager’s Insight

• This module lowers spare-part variety across M340 and M580 lines.
• The Active lifecycle reduces long-term support risk.
• 2.6 W power use helps keep panel heat low.
• IP20 rating means it needs a clean cabinet.
• Buy extra terminal blocks to cut downtime.
• Stock this model if your plant uses many 24 V DC sensors.

Best Fit Equipment and Applications

• M340 control panels in factory automation
• M580 process control systems
• Packaging lines and material handling
• Machine tools and assembly stations
• Water treatment and pump control panels
• Building automation and energy monitoring
• Conveyor, gate, and limit switch monitoring
• Pushbutton, relay, and sensor input banks

FAQ

• Q: What is the BMXDDI1603?
  A: It is a 16-channel discrete input module from Schneider Electric.
• Q: Which controllers use it?
  A: It works with Modicon M340 and M580 platforms.
• Q: What voltage does it accept?
  A: It reads 24 V DC discrete signals.
• Q: Does it support sink and source wiring?
  A: Yes, it supports both with positive logic.
• Q: How many wires can it handle?
  A: It has 16 input channels through a 20-pin terminal block.
• Q: Is channel-to-channel isolation included?
  A: Yes, each channel is isolated from the others.
• Q: How do I check faults?
  A: Use the module LED and per-channel LEDs.
• Q: What is the operating temperature?
  A: It runs from 0°C to +60°C.
• Q: What is the protection rating?
  A: It is rated IP20 for cabinet use.
• Q: How much power does it use?
  A: It consumes 2.6 W and draws 110 mA at 24 V DC.
• Q: Is it still active?
  A: Yes, lifecycle status is Active as of 2026-09.
• Q: What is the warranty?
  A: It includes a 12-month warranty.
• Q: How fast do orders ship?
  A: Most orders ship within 12-24 hours.
• Q: Which couriers are available?
  A: FedEx, UPS, and DHL are available.
• Q: Can I use it for high-speed counting?
  A: No, it is for standard discrete input tasks.
• Q: What should I check before buying?
  A: Confirm your rack type, voltage, and channel count.
• Q: Do I need special tools?
  A: Use standard panel tools and follow wiring rules.
• Q: How do I get stock advice?
  A: Email sales@powergearx.com or message +86 18030005825.

Buying Guide

• Check your controller first. Use M340 or M580 racks.
• Count your inputs. Choose 16 channels only if you need them.
• Confirm signal level. This module reads 24 V DC.
• Review panel space. The size is 100 x 28 x 93 mm.
• Plan for heat. Power use is 2.6 W.
• Check cabinet rating. The module is IP20.
• Order spare terminal blocks for faster service.
• Ask for stock and lead time before large orders.
• Contact sales@powergearx.com for bulk quotes.
• Message +86 18030005825 for urgent needs.
