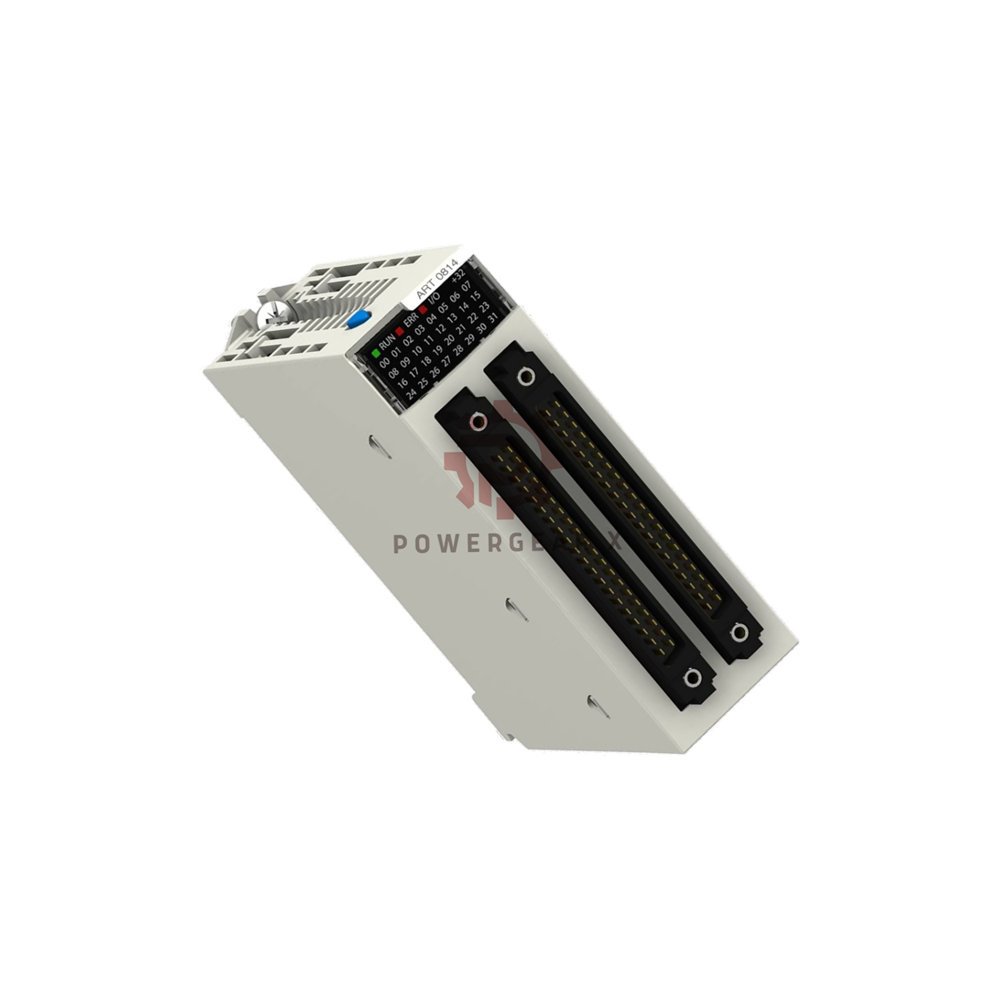

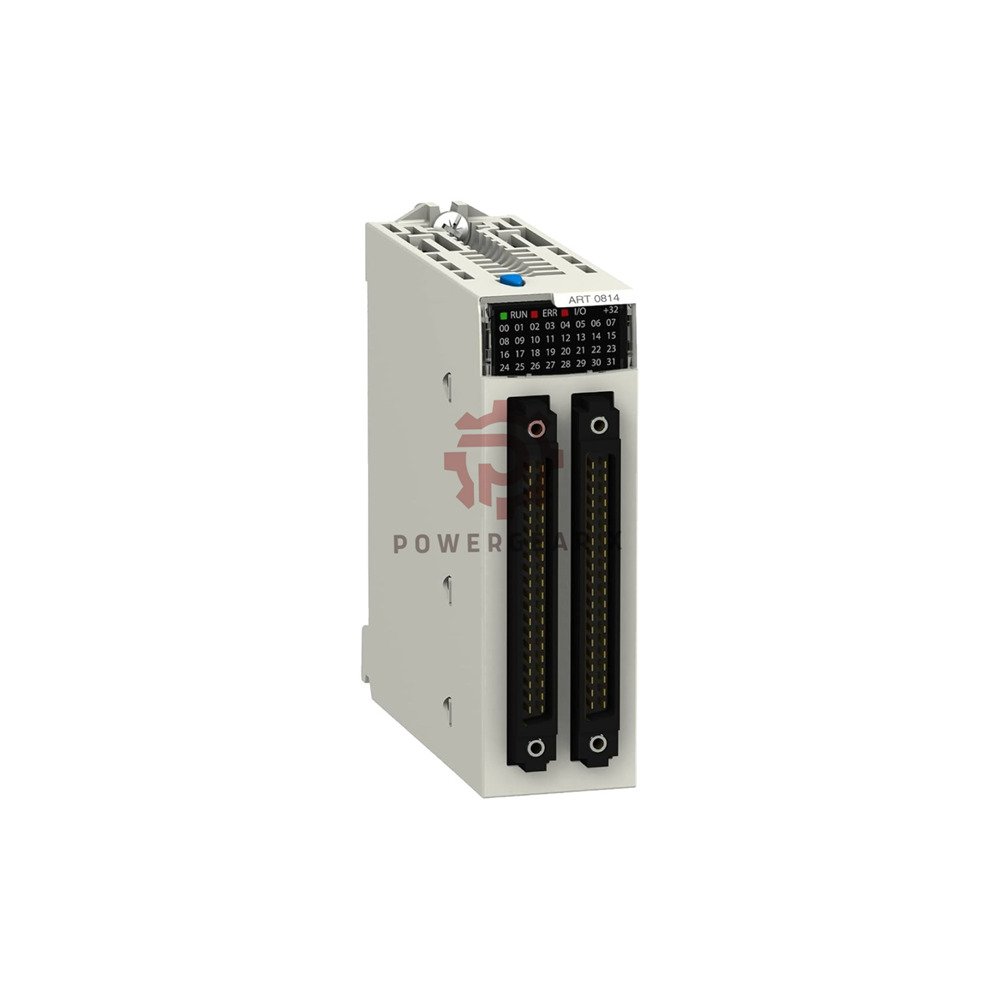

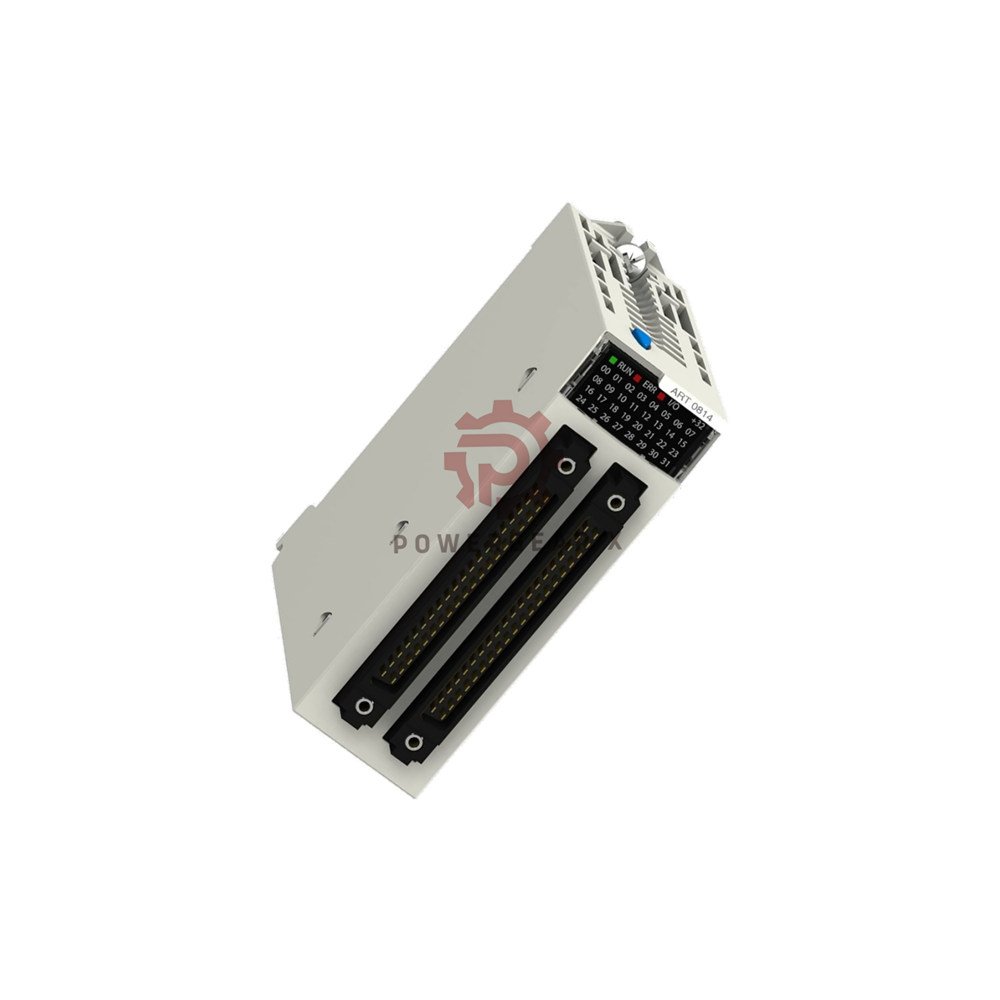

BMXART0814 Schneider Modicon X80 8-Channel RTD Thermocouple Input Module

BMXART0814 Modicon X80 Temperature Input Module by Schneider Electric

The BMXART0814 is an 8-channel temperature input module from the Modicon X80 series. It reads RTD and thermocouple signals. Each channel is configurable. It offers 16-bit resolution and channel-to-channel isolation. This module fits both M340 and M580 platforms.

I/O Specifications

• Channels: 8
• Signal Type:
  • RTD: PT100, PT1000, and more
  • Thermocouple: J, K, T, E, R, S, B, N
• Range: Configurable per channel
• Resolution: 16-bit
• Accuracy:
  • RTD: ≤ 0.1 °C
  • Thermocouple: ≤ 1%
• Isolation: Channel-to-channel
• Diagnostics:
  • Module status LED
  • Per-channel status
• Connection: 28-pin terminal block

Electrical Data

• Supply Voltage: 24 V DC (via backplane)
• Power Consumption: 3.6 W
• Bus Current: 150 mA at 24 V DC

Environmental Resistance

• Operating Temperature: 0°C to +60°C
• Storage Temperature: -25°C to +70°C
• Relative Humidity: 5% to 95% (non-condensing)
• Protection Rating: IP20

Physical Characteristics

• Dimensions (H×W×D): 100 × 28 × 93 mm
• Weight: 0.17 kg

Lifecycle Status

• Lifecycle: Active
• Platform: Shared I/O for M340 and M580
• Last Verified: 2026-09

Installation Guide

• Mount the module on an X80 rack.
• Use one slot only.
• Wire sensors to the 28-pin terminal block.
• Power comes from the backplane. No extra 24 V wiring.
• Keep the IP20 cabinet clean and dry.

Commissioning and Maintenance Ease

• Set each channel by software. No jumpers.
• Use LEDs to spot faults fast.
• Channel isolation stops cross-talk.
• Hot-swap support cuts downtime.
• One module handles mixed RTD and thermocouple types.

Compatibility Notes

• Works with Modicon M340 and M580 racks.
• Fits standard X80 backplanes.
• Accepts common RTD and thermocouple sensors.
• Not for high-voltage inputs.
• Check sensor type before wiring.

Certifications and Approvals

• CE, UL, CSA (typical for Modicon X80).
• RoHS compliant.
• Built for industrial automation.
• Check local rules before use.

Packing List

• 1 x BMXART0814 module
• 1 x Quick start guide

Warranty and Shipping

• Warranty: 12 months from delivery.
• Dispatch: 12 to 24 hours after payment.
• Couriers: FedEx, UPS, DHL.
• Tracking number sent for every order.

Expert Review

The BMXART0814 is a strong pick for temperature-heavy plants. Eight channels save rack space. You can mix RTD and thermocouple types on one card. Accuracy is good. RTD stays within 0.1 °C. Channel isolation keeps signals clean. The 28-pin block makes wiring tidy. Power draw is low at 3.6 W. This module suits food, chemical, and energy sites. It is not for fast dynamic signals. But for slow temperature loops, it works very well.

Manager’s Insight

From a project manager’s view, the BMXART0814 lowers cost per channel. One module replaces several single-type cards. That cuts rack slots and wiring time. It works on both M340 and M580. So you can reuse spare parts. Lead time is short. We ship in 12 to 24 hours via FedEx, UPS, or DHL. The 12-month warranty keeps risk low. For system builders, this is a smart buy.

Best Applications and Equipment

• Modicon M340 and M580 control systems.
• Furnace and kiln temperature control.
• Food and beverage process lines.
• Chemical reactor monitoring.
• Boiler and steam plant sensors.
• Any plant with many RTD or thermocouple points.

FAQ

Q: Can I mix RTD and thermocouple sensors on one BMXART0814?

A: Yes. Each channel is set by software. You can run PT100 on one channel and a K-type thermocouple on another.

Q: Does this module need a separate power supply?

A: No. It uses 24 V DC from the backplane. Bus current is 150 mA.

Q: How do I know if a channel has a fault?

A: The module has a status LED. Each channel also shows its own status. This helps you find bad sensors fast.

Q: What is the accuracy for RTD inputs?

A: RTD accuracy is ≤ 0.1 °C. Thermocouple accuracy is ≤ 1%.

Q: What warranty and shipping do you offer?

A: We give a 12-month warranty. Orders ship in 12 to 24 hours. We use FedEx, UPS, or DHL. Ask us at sales@powergearx.com or WhatsApp +86 18030005825.

Buying Guide

• Count your temperature points. Eight channels may be enough.
• List your sensor types. Check they are supported.
• Confirm your rack is M340 or M580.
• Do not use for high-voltage analog signals.
• Order before 3 PM local time for same-day dispatch.
• Ask for bulk pricing on 5 units or more.
