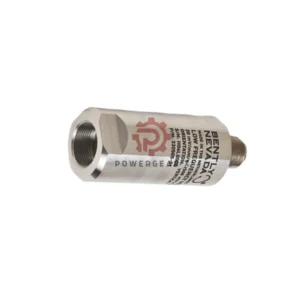

Bently Nevada Low Frequency Velocity Sensor 330505-01-02-06

Bently Nevada 330505-01-02-06 Low Frequency Velocity Sensor

Technical Parameters

• Velocity Range: 102 mm/s (4 in/s) peak
• Sensitivity: 20 mV/mm/s ±10%
• Frequency Response: 0.5–1000 Hz ±3 dB; 1–200 Hz ±0.9 dB
• Output Bias Voltage: -12 ±1 VDC
• Operating Temperature: -40°C to +100°C (-40°F to +212°F)
• Shock Resistance: 981 m/s² (100g) peak
• Weight: < 375 grams (13.2 oz)

Installation Guide

• Mounting Angle: 0° ± 10°
• Thread: 3/8-24 UNF-2B
• Mounting Adapter: 5/8 – 18 UNF

Model Full Code Breakdown

• 330505: Low Frequency Velocity Sensor
• -01: Mounting Angle 0° ± 10°
• -02: Thread 3/8-24 UNF-2B
• -06: Mounting Adapter 5/8 – 18 UNF

Package List

• One new 330505-01-02-06 sensor
• Original factory packing
• Note: No certificates included

Benefits

• Long cable runs without signal loss
• Strong resistance to shock and humidity
• Easy to mount and maintain

Warranty

• 12 months factory warranty
