Product details
Fluid-Resistant Short Cable Sensor

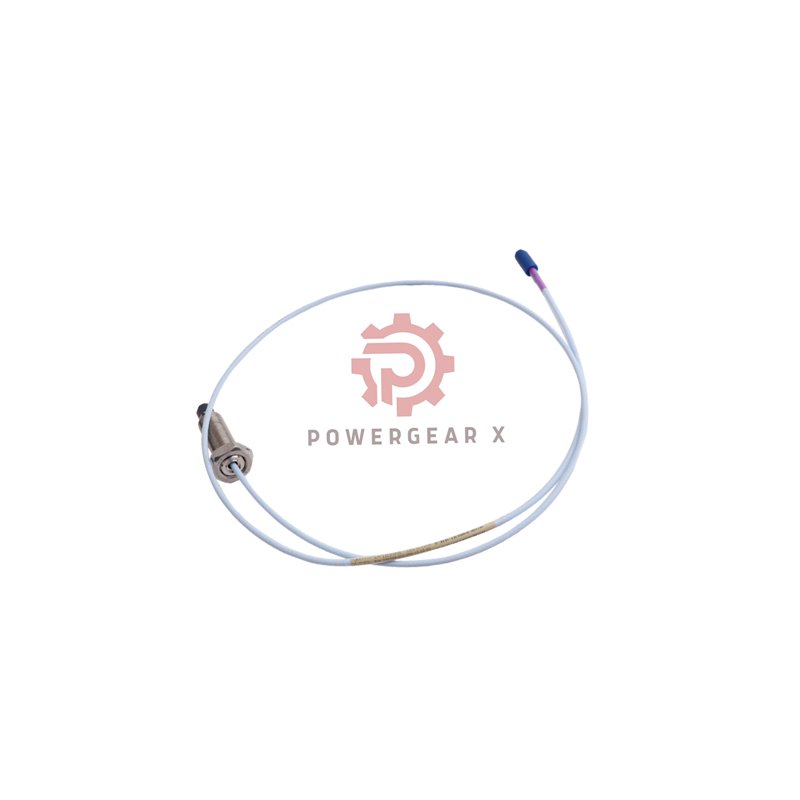

This Bently Nevada 3300 XL 11 mm Proximity Probe combines a compact 1-meter cable with FluidLoc technology. It is built for wet or oily environments where space is limited. Ensure reliable vibration monitoring in challenging conditions. Manufactured to the highest U.S. quality standards. For standard environment 8mm options, view our 3300 XL 8mm Proximity Probes.
Product Model Structure
- Brand: Bently Nevada
- Complete Part Number: 330709-000-080-10-12-00
- Suffix Configuration Explained:
- 330709: Base 11mm Probe, M16x1.5 Thread
- 000: No Unthreaded Section (0 mm)
- 080: 80 mm Overall Case Length
- 10: 1.0 Meter Total Cable Length
- 12: ClickLoc Connector & FluidLoc Cable
- 00: Agency Approvals Not Required
Core Technical Information
- Electrical Properties
- DC Resistance (1m): 5.9 Ω, Tolerance ± 0.5 Ω
- Cable Construction: 75 Ω Triaxial, FEP Insulated
- Physical Specifications
- Probe Tip: Polyphenylene Sulfide (PPS)
- Probe Case: AISI 304 Stainless Steel
- Mounting Thread: M16 x 1.5
- Max Thread Engagement: 24 mm
- Installation & Operational Limits
- Minimum Target Size: Flat: 30.5 mm, Shaft: 152 mm
- Case Torque (Safe/Max): 21.1 N•m / 63.3 N•m
- Connector Torque: Hand Tight Only
- Minimum Bend Radius: 25.4 mm
- Environmental Ratings
- Wide Temp Range: -52°C to +177°C
- Seal Protection: Do not store below -34°C.
System Fit & Ideal Applications
- Designed for use with a 1-meter Bently Nevada Proximitor.
- FluidLoc cable provides excellent resistance to oils and coolants.
- Perfect for compressors, pumps, or gearboxes in confined, wet spaces.
Package & Service Commitment
- Includes one 330709-000-080-10-12-00 probe, ready to install.
- Backed by a comprehensive 12-month warranty.
- Quick global delivery via FedEx, UPS, or DHL couriers.
Frequently Asked Questions
Product Features & Selection
- What is the key benefit of the “12” cable option?
- The “12” option provides a FluidLoc cable. It is more resistant to industrial fluids than the standard “01” or “02” cable.
- Why choose a 1-meter FluidLoc cable?
- For applications where the sensor is near the monitor but exposed to splash, spray, or oily conditions. It gives fluid protection without excess cable.
Technical & Usage Advice
- Can I clean the FluidLoc cable with solvents?
- The cable jacket is resistant to many fluids, but always check chemical compatibility. Wipe with a damp cloth is generally safe.
- Is the connector different on the “12” option?
- The connector itself is the same ClickLoc type. The difference is in the cable jacket material. There is no connector protector with option “12”.
Purchasing & Support
- Do you provide calibration certificates?
- This probe is supplied as a standard OEM part. For a formal calibration certificate, please contact our sales team before ordering.
- How do I ensure I order the correct matching proximitor?
- You need a 1-meter Bently Nevada 3300 XL Proximitor. Our team can help you source the correct system components.
