Bently Nevada AS3100S2-Z2 Vibration Sensor | 80 g Range

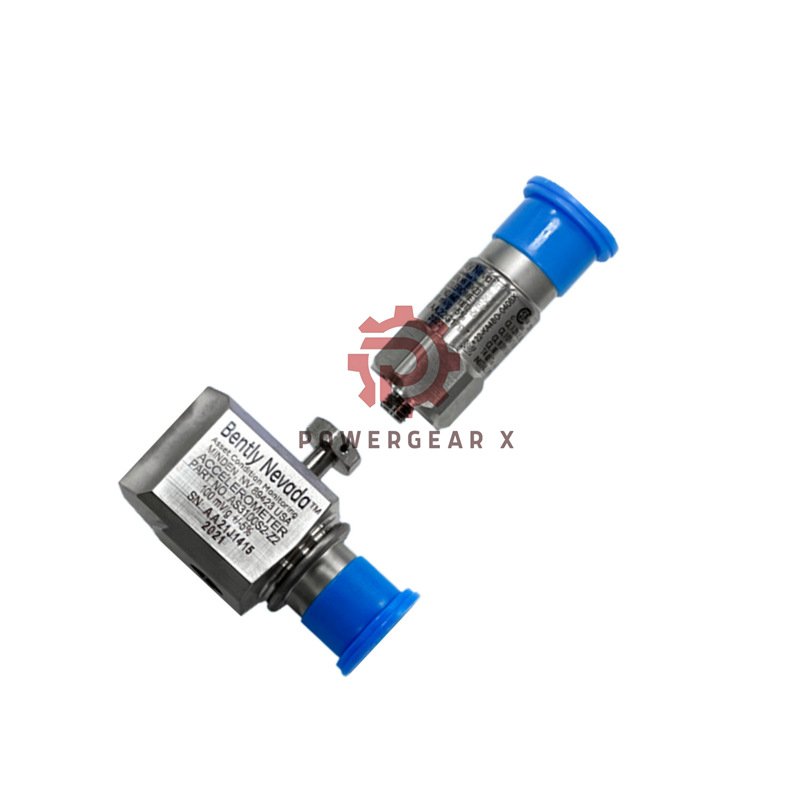

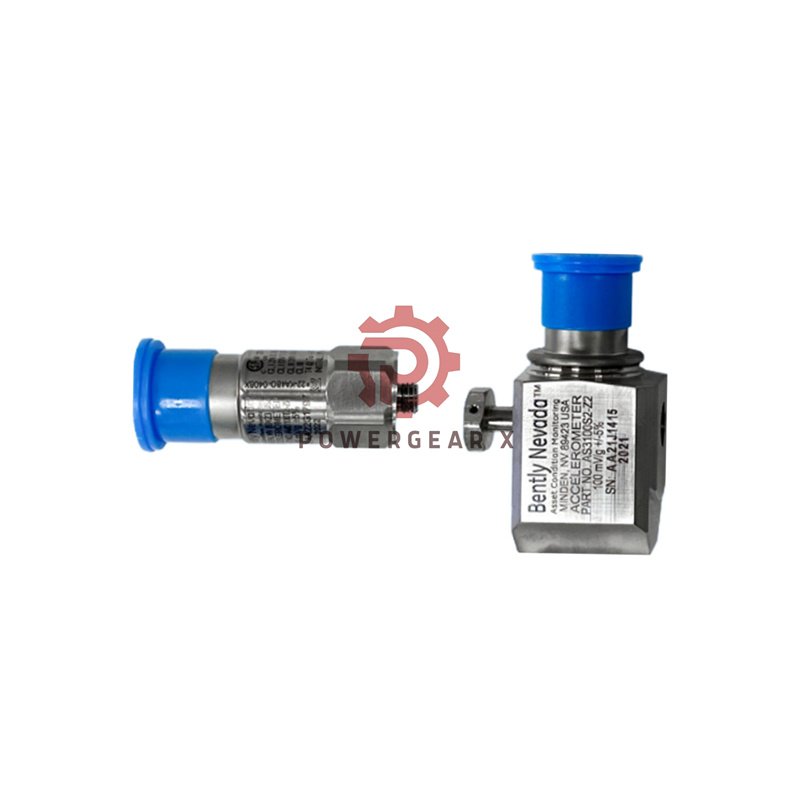

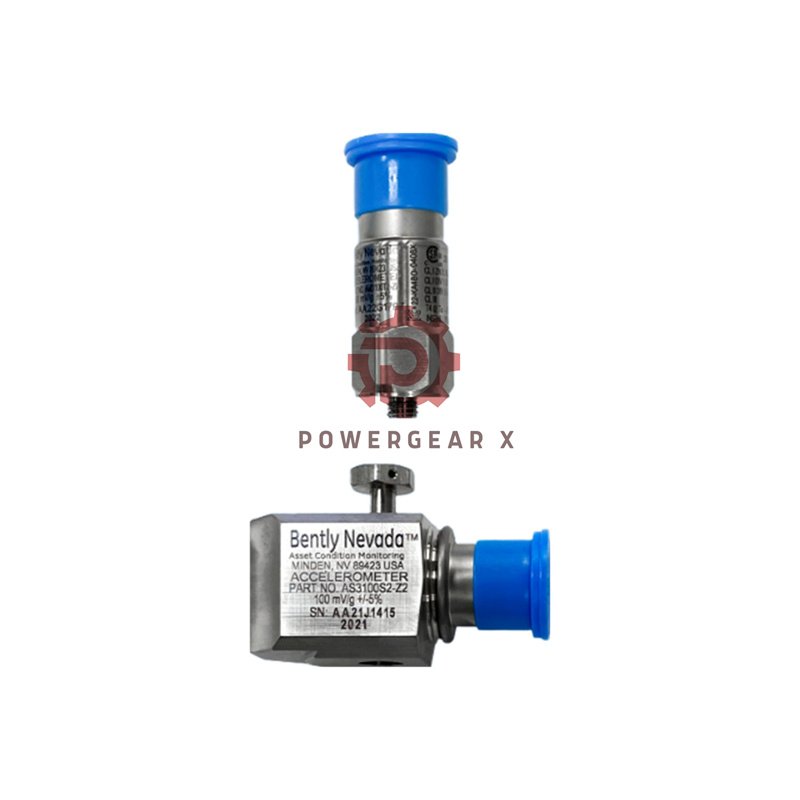

Product Introduction: Bently Nevada AS3100S2-Z2 Accelerometer

The Bently Nevada AS3100S2-Z2 is a robust case-mounted accelerometer. It delivers precise vibration data for protecting critical machinery. This sensor operates reliably in harsh industrial environments.

Core Technical Specifications

• Brand & Model: Bently Nevada AS3100S2-Z2
• Sensitivity: 100 mV/g ±5% at 25°C
• Acceleration Range: 80 g peak
• Frequency Response: 0.5 to 10,000 Hz (±3 dB)
• Amplitude Nonlinearity: 1%
• Broadband Noise: 700 μg (2.5 Hz – 25 kHz)

Electrical & Environmental Performance

• Voltage Supply: 18 – 30 VDC
• Constant Current: 2 – 10 mA
• Bias Voltage: 12 VDC
• Operating Temperature: -55°C to +120°C
• Vibration Limit: 500 g peak
• Shock Survival: 5,000 g peak

Physical Construction & Mounting

• Sensing Element: PZT Ceramic / Shear Design
• Case Material: 316L Stainless Steel
• Weight: 145 grams
• Mounting: 1/4-28 UNF Tapped Hole
• Connector: Side Exit, 2-pin, MIL-C-5015 Style
• Case Isolation: Internally Shielded and Ground Isolated

Recommended Installation & Cabling

• Use a shielded and twisted pair cable for best performance.
• Keep the cable length to 100 feet or less for optimal signal quality.
• Ensure a clean, flat mounting surface for accurate data collection.
• Connect the connector shell to a proper ground point.

Packaging & Shipping

• Your order includes one Bently Nevada AS3100S2-Z2 accelerometer.
• We securely pack all items to prevent damage during transit.
• We ship globally via reliable carriers like FedEx, UPS, and DHL.
• You will receive tracking information once your order ships.

Frequently Asked Questions

• What is the key advantage of the shear design?
• The shear design provides excellent rejection of base strain and thermal transients. This ensures stable and accurate measurements.
• How does temperature affect the sensor’s output?
• Sensitivity can shift by -20% at -55°C and +10% at +120°C. Always consider this for high-precision applications.
• Can I use this sensor for high-frequency analysis?
• Yes, its resonant frequency is 22 kHz. The flat frequency response extends to 10,000 Hz, suitable for many applications.
• What is the purpose of the current regulating diode?
• It simplifies installation by making the output signal independent of cable length. This provides consistent performance.
