Extra-Long Reach Probe for Large Machinery

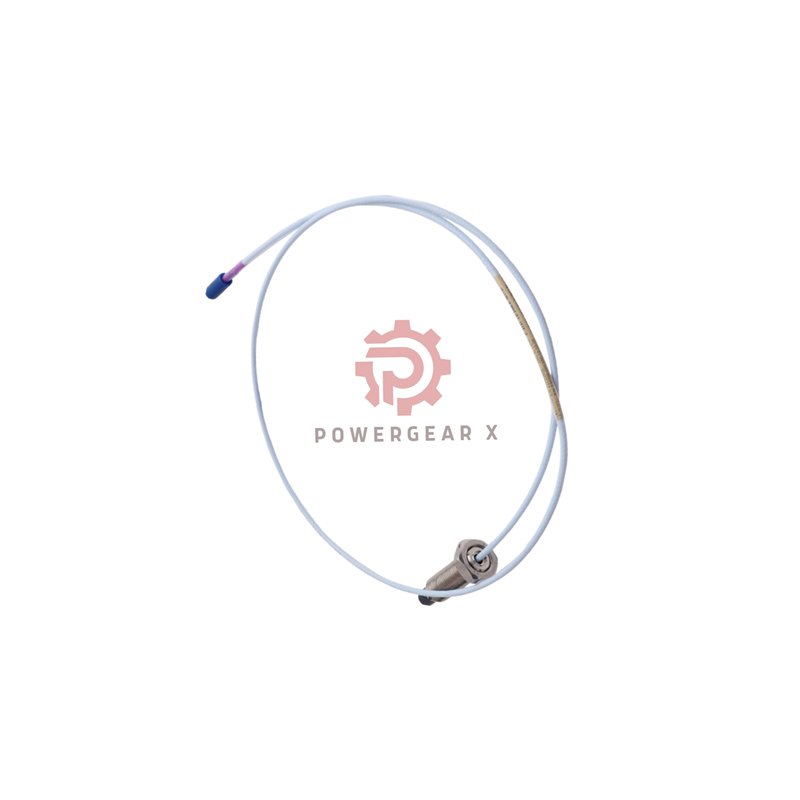

This is the 330709-016-240-50-02-00, an extended Bently Nevada 3300 XL probe. It has a very long 240mm case and a 5-meter integrated cable. Designed specifically for monitoring large turbines, compressors, and generators.
Unique Advantages
- Extended Reach: 240mm case and 5m cable for hard-to-access locations.
- For Large Shafts: Designed for optimal performance on big diameter equipment.
- Integrated Cable: Long 5m cable minimizes the need for extensions.
- Premium Origin: Made in USA, original part with 12-month warranty.
Detailed Specifications
- Full Model Number: 330709-016-240-50-02-00
- Product Line: Bently Nevada 3300 XL 11mm
- Origin: Made in U.S.A.
- Thread: Large M16 x 1.5 mm
- Case Size: 16mm unthreaded, 240mm total length.
- Cable Length: 5.0 meters (16.4 feet) triaxial cable.
- Electrical Data: Resistance 7.2 Ω ± 0.8 Ω (for 5m).
- Compatibility: For use with 5-meter Proximitor sensors only.
- Target Sizing: Minimum recommended shaft: 152 mm (6.0 in).
- Mounting Torque: 21.1 N•m (187 in•lb).
- Thread Engagement: Max 24 mm.
- Humidity Rating: 100% condensing when connectors are protected.
Critical Application Guidelines
- This 5-meter probe must be paired with a matching 5-meter Proximitor sensor.
- Ensure the target shaft diameter is at least 152mm (6 inches) for accurate readings.
- The long, rigid case requires a deep, secure mounting hole.
- Plan the cable routing carefully due to the integrated 5-meter length.
Expert FAQ & Ordering Guide
Why such a long 240mm case?
It allows the probe to reach through very thick casing walls on large equipment like steam turbines or high-pressure compressors where the shaft is deep inside.
What does “Cross-talk Limitation” mean for minimum shaft size?
On small shafts, the probe’s magnetic field can wrap around, causing inaccurate readings. The large minimum shaft size ensures a flat target surface for precise measurement.
Can I use this 5m probe with a standard 1m Proximitor?
No. The 5-meter probe is electrically tuned and must be used only with a compatible 5-meter Proximitor sensor for correct system calibration.
Is the M16 thread common?
M16x1.5 is a standard large metric thread used on heavy industrial equipment, providing a very strong mechanical mount.
How do I order this special long-probe configuration?
Contact us directly with part number 330709-016-240-50-02-00. We ship worldwide via FedEx, UPS, and DHL. Your order is protected by our 12-month warranty.
