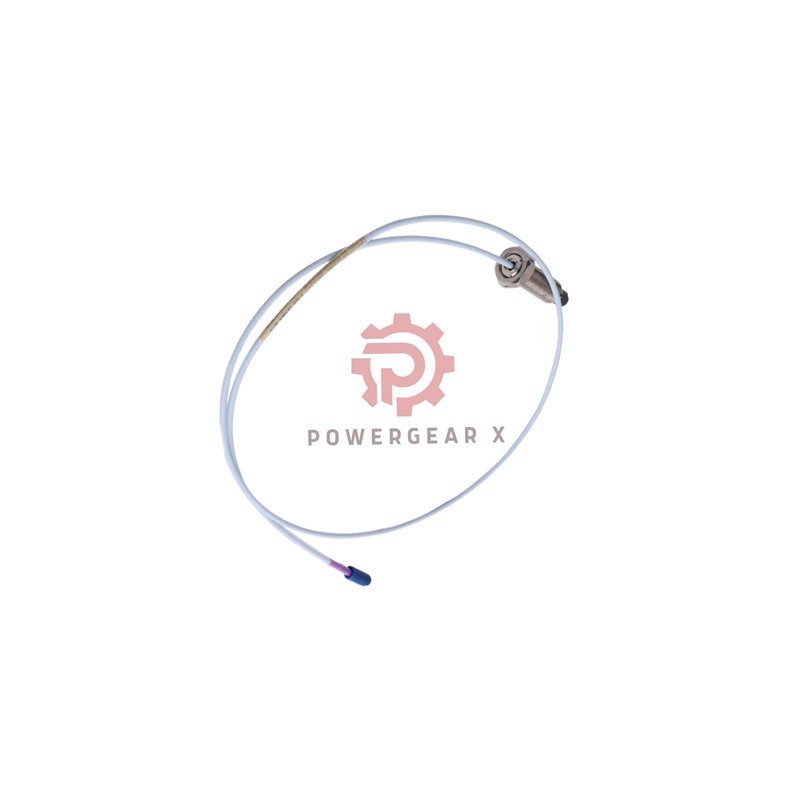

Bently Nevada 330709-000-230-90-11-00 3300 XL 11mm Proximity Probe – Vibration Sensor

Product Overview

Bently Nevada’s 330709-000-230-90-11-00 is a premium 11mm proximity probe from the renowned 3300 XL series. This industrial sensor provides precise vibration and position measurement for rotating machinery. It ensures reliable monitoring and protection for critical assets.

Inquiries: sales@powergearx.com, +86 18030005825.

Technical Specifications

• Brand & Model: Bently Nevada 3300 XL 11 mm Proximity Probe
• Part Number: 330709-000-230-90-11-00
  • 330709: 3300 XL 11mm Probe, M16x1.5 thread, no armor.
  • 000: 0 mm Unthreaded Length.
  • 230: 230 mm Overall Case Length.
  • 90: 9.0 meter Total Cable Length.
  • 11: Miniature Coaxial ClickLoc Connector with FluidLoc cable.
  • 00: No agency approval required.
• Measurement Core:
  • Probe DC Resistance: 8.5 ± 1.1 ohms (at 9.0m).
  • Minimum Target Size: 30.5 mm diameter flat surface.
  • Minimum Shaft Diameter: 152 mm recommended.
• Physical Construction:
  • Probe Tip: Durable Polyphenylene Sulfide (PPS).
  • Probe Case: AISI 304 Stainless Steel.
  • Cable: 75 Ω Triaxial, FEP insulated.
• Installation Data:
  • Case Thread: M16 x 1.5.
  • Max Thread Engagement: 24 mm.
  • Recommended Case Torque: 21.1 N•m (187 in•lb).
  • Connector Torque: Finger tight (Max 0.565 N•m).
  • Minimum Cable Bend Radius: 25.4 mm (1.0 in).
• Environmental Ratings:
  • Operating Temperature: -52°C to +177°C (-62°F to +351°F).
  • Note: Temperatures below -34°C may harm the pressure seal.
  • EPL Ga/Gc & Dc Temperature Classifications available (T1 to T5).

Features & Benefits

• Robust & Reliable: Stainless steel case and FEP cable withstand harsh industrial environments.
• Precision Measurement: Delivers accurate data for predictive maintenance.
• Easy Installation: Standard M16 thread and clear torque specifications.
• Flexible Integration: 9-meter cable and ClickLoc connector enable easy setup.
• Wide Compatibility: Works with Bently Nevada 3300 XL monitoring systems. Also consider the 3300 XL 8mm Probe for different clearance requirements.

Package & Support

• Packaging: Includes the probe unit with connector protector.
• Warranty: 12-month quality guarantee.
• Shipping: Fast global delivery via FedEx, UPS, or DHL.

Typical Applications

• Vibration monitoring on turbines, compressors, and pumps.
• Shaft radial vibration and position measurement.
• Key phasor timing reference for machinery diagnostics.
• Critical asset protection in power generation and oil & gas.

Frequently Asked Questions (FAQ)

Product Selection

How do I choose between 8mm and 11mm probes?

Select based on your application’s required measurement range and target size. The 11mm probe suits larger shafts. For smaller clearances, review the 3300 XL 8mm Proximity Probe.

Installation & Use

What is the most common installation mistake?

Over-tightening the connector. Always use finger tight force only to prevent damage.

Can I use this probe outdoors in cold climates?

Yes, but prolonged exposure below -34°C may reduce seal life. Consider protective enclosures.

Compatibility

Will this probe work with my existing monitor?

It is compatible with Bently Nevada 3300 XL series monitors. Check your system manual for specific channel requirements.

Need a different cable length or connector?

Contact us. We can help source other configurations from the 3300 XL range.

Contact us for expert support: sales@powergearx.com or +86 18030005825.
