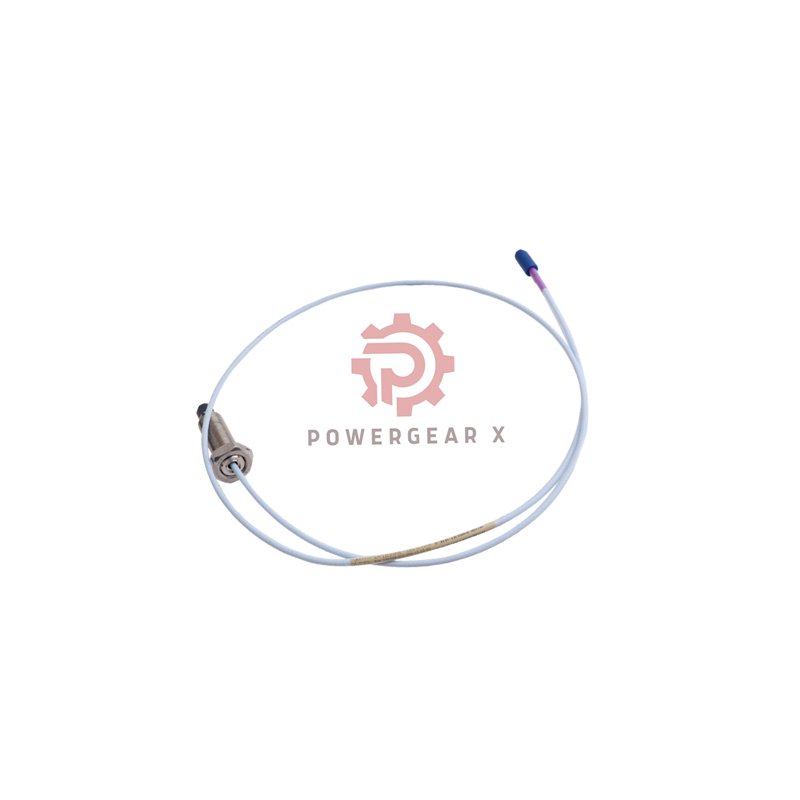

Bently Nevada 330709-000-040-90-02-00 In Stock | 9m Cable 11mm Vibration Sensor 3300 XL

Long-Reach Compact Vibration Probe

The Bently Nevada 330709-000-040-90-02-00 is a unique solution. It combines a short 40mm body with a long 9-meter cable. This design is perfect for tight spaces needing distant monitoring. It is a key part of the reliable 3300 XL series.

Standout Product Advantages

• Space-Saver Body: Only 40mm long for confined installations.
• Maximum Reach: 9.0-meter cable for flexible, long-distance routing.
• Simple Connection: Standard ClickLoc connector for easy setup.
• Built to Last: Stainless steel and PPS materials resist corrosion.
• Wide Thermal Range: Consistent performance from -52°C to +177°C.

Product Specifications

• Brand: Bently Nevada
• Product Line: 3300 XL 11 mm Proximity Probes
• Complete Item Code: 330709-000-040-90-02-00
  • 330709 – Core Unit: 11mm Probe, M16x1.5 Thread
  • 000 – Unthreaded Portion: 0 mm
  • 040 – Overall Body Length: 40 mm
  • 90 – Cable Length: 9.0 metres
  • 02 – Connector Type: Miniature Coaxial ClickLoc
  • 00 – Agency Certs: Not Required / Standard
• Performance Parameters
  • Electrical Resistance (9m): 8.5 ± 1.1 Ohms
  • Cable Build: 75 Ω Triaxial with FEP Insulation
  • Minimum Target Surface: 30.5 mm diameter flat area
  • Recommended Shaft: At least 152 mm in diameter
• Mechanical Details
  • Housing: AISI 304 Stainless Steel
  • Sensing Tip: Polyphenylene Sulfide (PPS)
  • Thread Size: M16 x 1.5
  • Proper Mounting Torque: 21.1 N•m
  • Cable Connection: Hand-tighten only
  • Bend Limit: Do not bend under 25.4 mm radius
• Environmental Conditions
  • Full Operating Range: -52°C to +177°C
  • Seal Care: Avoid temperatures below -34°C for long periods.
  • Safety Class: Suitable for various EPL classifications.

Easy Setup Instructions

• Check the mounting location has enough depth.
• Clean the threads and insert the probe.
• Tighten to 21.1 N•m using a torque tool.
• Connect the cable connector by hand until snug.
• Plan the cable route to avoid sharp bends.

Where It Fits

The 330709-000-040-90-02-00 is compatible with Bently Nevada 3300 XL systems. Its long cable is ideal for large turbines or generators. For monitoring smaller machinery, view the 3300 XL 8mm Proximity Probe.

Package & Service Details

• Compliance: This model (00) ships without specific agency approvals.
• Includes: One proximity probe ready for installation.
• Warranty Coverage: We provide a full 12-month warranty.
• Shipping Options: Fast delivery available via FedEx, UPS, and DHL.

Helpful FAQs

Product Configuration

• What does “Agency Approval Option: 00” mean?
  It means this specific 330709-000-040-90-02-00 model does not carry formal third-party safety certifications. It is for use in regions or applications where such approvals are not mandatory.
• Why choose a 9m cable with a short body?
  This setup is for hard-to-reach spots. The short body fits in a shallow hole, while the long cable runs to a distant monitor panel. It offers great installation flexibility.

Usage & Selection

• Can I cut the 9m cable to a shorter length?
  No. The cable length is factory-set. Cutting it will change the electrical resistance. This will cause incorrect vibration readings. Always order the correct cable length you need.
• Is the standard cable safe for outdoor use?
  The standard cable is durable. For constant sun, rain, or chemical exposure, a jacket-rated cable option is better. Check your site conditions first.

Ordering & Support

• Do you offer volume pricing?
  Yes. Contact our sales team for quotes on multiple units of the 330709-000-040-90-02-00. We provide competitive pricing for bulk orders.
