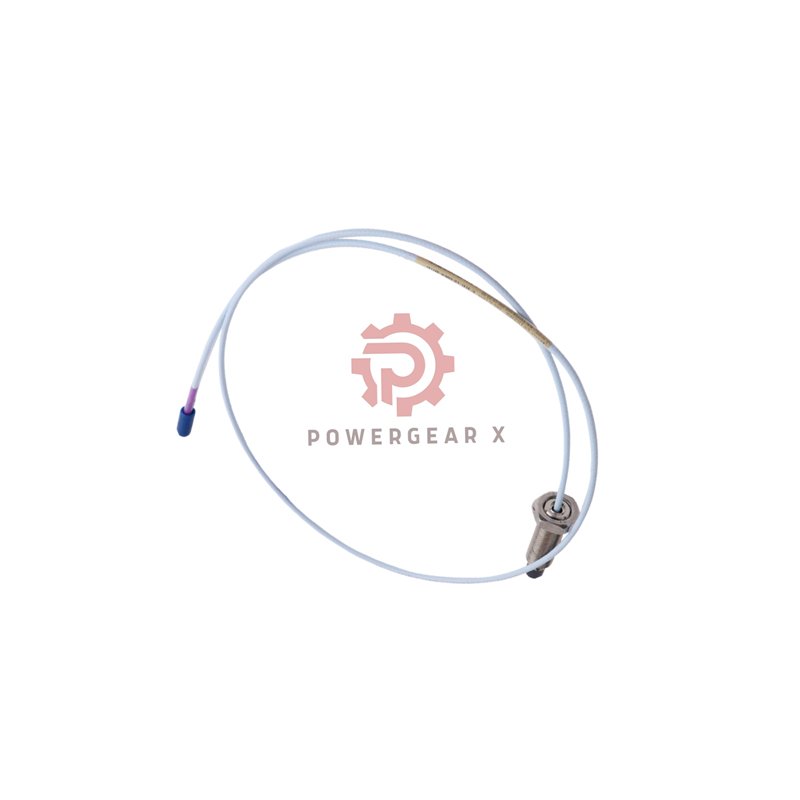

Bently Nevada 330709-000-030-10-12-00 | Sealed FluidLoc 30mm Short Case Probe

Compact Sealed Environment Vibration Probe

The Bently Nevada 330709-000-030-10-12-00 offers maximum protection in minimal space. This 11mm probe features the shortest 30mm case combined with a moisture-sealed FluidLoc cable, making it ideal for compact, wet, or wash-down applications where formal certifications are not required.

Product Advantages

• Extremely Compact Design: 30mm case fits the most space-limited installations
• Moisture-Resistant Cable: FluidLoc technology protects against liquid ingress
• Clean Short Cable Run: 1.0-meter length minimizes panel clutter
• Industrial Durability: Stainless steel construction with PPS sensing tip
• Wide Temperature Tolerance: Reliable operation from -52°C to +177°C

Technical Specifications

• Manufacturer: Bently Nevada
• Product Family: 3300 XL 11 mm Proximity Probes
• Complete Part Number: 330709-000-030-10-12-00
  • 330709 – 11mm Probe, M16x1.5 Thread, Unarmored
  • 000 – Unthreaded Length: 0 mm
  • 030 – Overall Case Length: 30 mm
  • 10 – Cable Length: 1.0 metre
  • 12 – Connector/Cable: ClickLoc with FluidLoc
  • 00 – Agency Approvals: Not Required
• Electrical Performance
  • DC Resistance (1m): 5.9 ± 0.5 Ohms
  • Cable Specification: 75 Ω Triaxial, FEP Insulated
  • Minimum Target Size: 30.5 mm diameter flat surface
  • Recommended Shaft Diameter: 152 mm minimum
• Mechanical Properties
  • Case Material: AISI 304 Stainless Steel
  • Tip Material: Polyphenylene Sulfide (PPS)
  • Mounting Thread: M16 x 1.5
  • Recommended Torque: 21.1 N•m
  • Connector Torque: Hand-tight only (max 0.565 N•m)
  • Cable Bend Radius: Minimum 25.4 mm
• Environmental Specifications
  • Operating Temperature: -52°C to +177°C
  • Seal Protection: Avoid extended periods below -34°C
  • Safety Compatibility: Suitable for various EPL classified areas

Installation Instructions

• Ensure mounting hole provides at least 24mm of thread engagement
• Clean threads and install probe, torquing to 21.1 N•m
• Connect FluidLoc cable by hand – do not use tools on connector
• Route cable with gentle bends exceeding 25.4mm radius
• Verify target surface is clean, conductive, and meets size requirements

System Compatibility

The 330709-000-030-10-12-00 is designed for Bently Nevada 3300 XL monitoring systems. This configuration is perfect for packaged equipment, marine applications, or food processing where space is limited and moisture protection is essential. For smaller shaft monitoring, consider the 3300 XL 8mm Proximity Probe.

Purchase Information

• Certification Status: Standard model without specific agency approvals (Option 00)
• Package Contents: One proximity probe with FluidLoc cable
• Warranty Coverage: Full 12-month manufacturer’s warranty
• Shipping Methods: Available via FedEx, UPS, and DHL express services

Expert FAQs

Technical Features

• What does “Agency Approval Option: 00” mean for this probe?
  The 330709-000-030-10-12-00 is a standard production model that does not carry formal third-party safety certifications like ATEX or IECEx. It is suitable for general industrial use where such certifications are not mandated.
• How does FluidLoc cable differ from standard cable?
  FluidLoc cable features a special sealed connector interface that prevents moisture, oil, and other contaminants from migrating into the electrical connection, significantly improving reliability in wet environments.

Application Guidance

• Where is this specific configuration most valuable?
  The 330709-000-030-10-12-00 excels in wash-down areas, food processing, marine applications, or any location where both space constraints and moisture exposure are concerns.
• Can I use this probe in explosive atmospheres?
  This specific model (00) does not carry explosion-proof certifications. For hazardous locations, you would need a probe with appropriate agency approvals (Option 05 or specific certification options).

Purchasing & Logistics

• What if I need this probe with specific certifications?
  Contact our sales team. We can provide the 330709-000-030-10-12-05 variant which includes multiple agency approvals while maintaining the same physical configuration.
