Product details
5/8-18 UNF Thread Probe with Integrated 5-Meter Cable

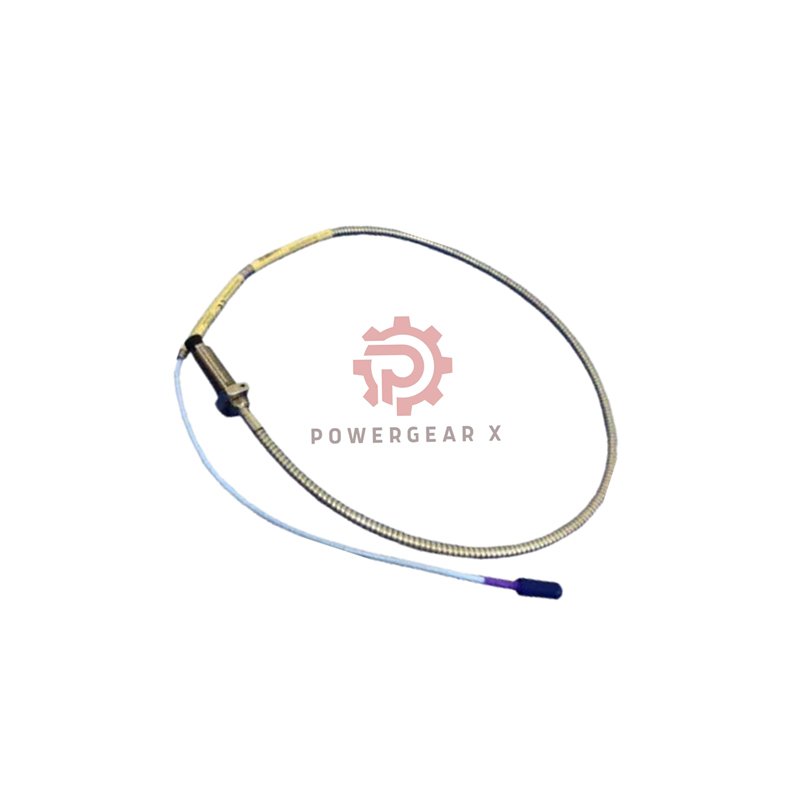

This is the Bently Nevada 330708-00-20-50-02-05, a key component in the 3300 XL monitoring system. It features a standard 5/8-18 UNF thread for North American machinery and a long 5-meter attached cable. This sensor is designed specifically for use with 5-meter proximitor modules. The probe is new, original, and made in the USA. It is covered by a solid 12-month manufacturer warranty for your assurance.
For Pricing & System Compatibility: Contact: sales@powergearx.com | +86 18030005825 (WhatsApp)
Core Product Advantages
- 5/8-18 UNF Thread Standard: Direct fit for equipment using imperial (inch) threaded mounting holes.
- 5-Meter Integrated System: Cable is permanently attached, reducing connection points and potential failure sites.
- Multiple International Approvals: Certified for use under various global safety standards (-05 option).
- Optimized for Long-Run Systems: Electrically matched to 5-meter proximitor sensors for accurate calibration.
- Robust Industrial Build: Stainless steel case and high-quality FEP cable ensure long service life.
Technical Specifications at a Glance
- Brand & Family: Bently Nevada 3300 XL 11mm Probes
- Full Product Number: 330708-00-20-50-02-05
- Thread Type: 5/8-18 UNF (Unified National Fine).
- Case Dimensions: Overall Length: 2.0 inches (50.8 mm). Unthreaded Length: 0 inches.
- Cable System: Integrated 5.0 meter (16.4 ft) triaxial cable, non-armored.
- Electrical Characteristic: DC Resistance: 7.2 Ohms (±0.8 Ω) for the 5m length.
- Connector: Standard Miniature ClickLoc coaxial.
- Material Spec: Case: AISI 304 SST. Tip: PPS. Cable Insulation: FEP.
- Installation Torque: Recommended: 15.2 N·m (133 in·lb). Max: 45.2 N·m.
- Max Thread Engagement: 0.938 inches (23.8 mm).
- Weight: Approximately 0.17 kg (0.37 lbs).
- Temperature Range: Operates from -51°C to +177°C (-60°F to +351°F).
- Seal Advisory: Avoid prolonged exposure below -34°C to prevent premature seal failure.
- Minimum Bend Radius: 25.4 mm (1.0 inch) for the cable.
Key Installation Instructions
- System Requirement: Must be paired with a Bently Nevada 5-meter proximitor sensor only.
- Thread Engagement: Do not screw the probe in more than 0.938 inches into the mounting hole.
- Torque Application: Use a torque wrench on the probe’s hex flats to achieve 15.2 N·m for a proper seal.
- Cable Management: Carefully coil and secure the 5-meter cable. Avoid sharp bends at the connector.
Package & Service Commitment
- Contents: One Bently Nevada 330708-00-20-50 vibration probe.
- Condition: 100% new, genuine, in original factory packaging.
- Warranty: Full 12-month international warranty from date of shipment.
- Global Shipping: Express delivery available via DHL, FedEx, and UPS.
- Support: We provide application guidance and datasheet access with every order.
Expert FAQ: 5/8-18 UNF & 5-Meter Probes
Thread & System Compatibility
Q: My equipment has an M14 threaded hole. Can I use this 5/8-18 UNF probe?
A> No. The 5/8-18 UNF thread is not compatible with M14 metric holes. You would need an adapter or must select the correct M14-threaded probe model.
Q: What does “for use with the five meter Proximitor Sensor only” mean?
A> The probe’s electrical length is calibrated for a 5-meter system. Using it with a 1-meter or 9-meter proximitor will result in incorrect gap voltage and scaling.
Specifications & Handling
Q: Why is the resistance higher (7.2Ω) than the 1-meter probe?
A> Resistance increases with conductor length. The 7.2Ω reading is normal and correct for the 5.0-meter integrated cable in this 330708-00-20-50 model.
Q: How should I handle the long 5-meter cable during installation?
A> Uncoil the cable fully before installation. Route it neatly, using clamps every 1-2 meters to prevent swinging or stress on the connector.
Ordering & Documentation
Q: Are the multiple approval certificates included?
A> Yes. The “05” option includes factory documentation for the applicable international certifications. These papers are shipped with the probe.
