Name: Bently Nevada 330707-00-62-90-01-00 Probe | Long 6.2 in Case &amp; 9m Cable | In Stock
SKU: 330707-00-62-90-01-00
Price: 266.00 USD
Availability: InStock

Product details

Product Overview

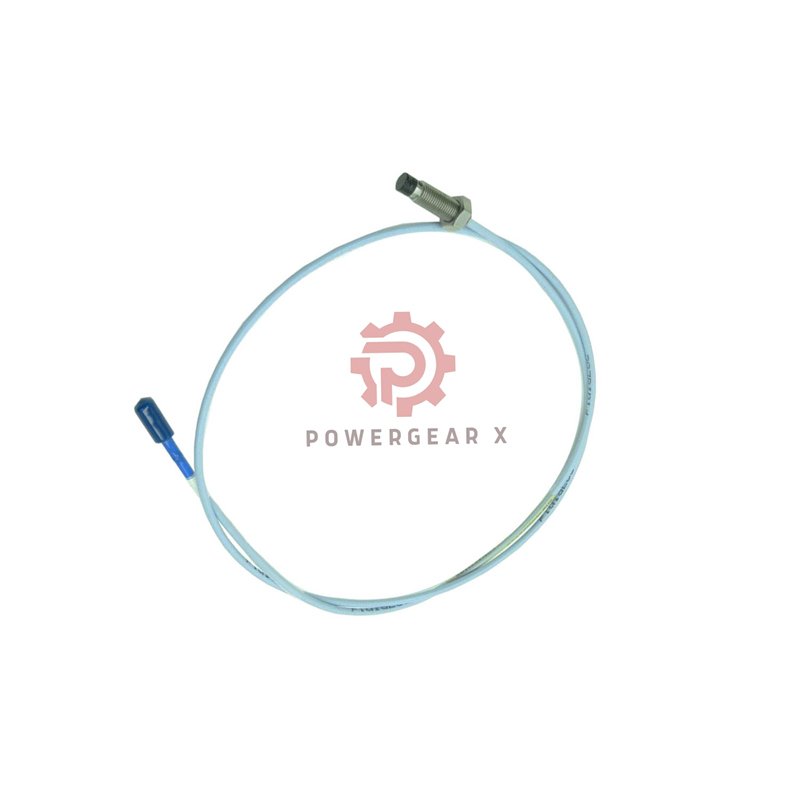

Introducing the Bently Nevada 330707-00-62-90-01-00. This is an 11mm proximity probe designed for applications requiring extended reach. It combines a long 6.2-inch case with a long 9-meter cable. Ideal for deep mounting holes and long cable runs to the monitoring system.

Part Number Decoder

330707: 3300 XL 11 mm Probe
- Thread: 5/8-18 UNF
- Armor: Without Armor
00: Unthreaded Length = 0 in
62: Case Length = 6.2 in (Long Version)
90: Cable Length = 9.0 meters
01: Connector = ClickLoc with Standard Cable
00: Agency Approvals = Not Required

Primary Technical Data

Brand & Series: Bently Nevada 3300 XL
Sensor Type: 11mm Proximity Probe
Thread Size: 5/8-18 UNF
Case Material: AISI 304 Stainless Steel
Cable Type: 75 Ω Triaxial, FEP, Standard Jacket
Key Feature: Extra-long 6.2″ sensing case
Probe Resistance (9m): 8.5 ± 1.1 Ohms
Operating Temperature: -51°C to +177°C
Recommended Torque: 15.2 N•m (133 in-lb)

Installation & Application Notes

Deep Mounting: The 6.2″ case is perfect for mounting through thick machinery housings.
Cable Note: Uses standard cable (option 01). Choose FluidLoc (option 11) for oily/wet areas.
Connection: Hand-tighten the ClickLoc connector until it clicks.
Bending: Maintain a minimum bend radius of 1.0 inch (25.4 mm).
Warning: Avoid operating below -34°C to protect internal seals.

Ordering & Support Details

Warranty: All products include a 12-month quality warranty.
Global Shipping: Available via FedEx, UPS, and DHL express services.
Package: Includes probe with connector protector.

Expert FAQ

When should I choose the 6.2-inch case length (option 62)?

Select this when your mounting hole is deep. Common on large turbines, generators, or gearboxes where the probe must pass through a thick casing to reach the shaft.

What is the difference between cable options “01” and “11”?

Option “01” has a standard FEP cable jacket. Option “11” (FluidLoc) has a special jacket that better resists oils, chemicals, and moisture. Use “11” in wet or dirty environments.

Is this long probe harder to install?

Not harder, but it needs more space. Ensure you have enough clearance to insert the full 6.2 inches into the mounting hole before threading it.

Can I use this in a hazardous area?

This specific model (option 00) does not have agency approvals for hazardous locations. For such areas, you need a model with approval options like “05”.

My old probe has a 2.5″ case. Can I replace it with this 6.2″ one?

Only if your mounting hole is deep enough. The longer case will not fit in a short hole. Always check your mechanical drawings for the required probe length.

Unsure about the correct probe length for your machine? Contact our technical sales team for assistance:
