Essential Workhorse for Large Machinery: Bently Nevada 3300 XL Probe

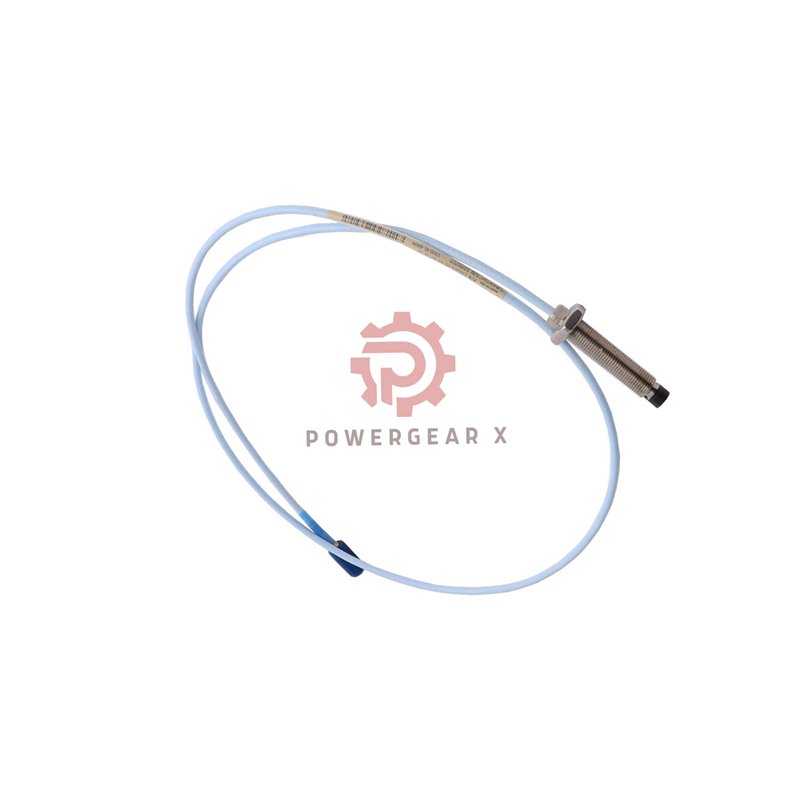

The 3300 XL 11mm Proximity Probe, model 330707-00-62-50-02-05, is the reliable choice for heavy industrial monitoring. It combines a long 6.2-inch armored body with a standard 5-meter cable. This cost-effective solution delivers precision for large turbines, fans, and compressors. Built in the USA for enduring performance.
Your Model Number Explained
- Core Model: 330707 – 3300 XL 11mm Probe with Armor (1/2-20 UNF)
- Detailed Configuration:
- 00: Unthreaded Portion = 0 in
- 62: Case Length = 6.2 in (Long)
- 50: Cable Length = 5.0 meters
- 02: Connector = Standard ClickLoc, Standard Cable
- 05: Approvals = Multiple (Global)
Fundamental Product Specifications
- Physical Build: 11mm PPS Tip. AISI 304 SST Armored Case.
- Electrical Properties: 75 Ω Triaxial Cable. Resistance: 7.2 Ω ± 0.8.
- Mechanical Fitting: 1/2-20 UNF Thread. Torque to 15.2 N•m.
- Environmental Limits: Operating Temp: -51°C to +177°C.
- Cable Handling: FEP Insulation. Minimum Bend: 25.4 mm (1.0 in).
- Safety Sealing: Viton O-ring for pressure differentials.
Primary Advantages
- Deep Mounting Ready: Long 6.2-inch case fits through substantial machine walls.
- Universal Compliance: Holds multiple international safety certifications.
- Proven Reliability: Armored design and robust materials ensure long service life.
- Wide Compatibility: Standard cable and connector interface easily with 3300 XL systems.
Frequently Asked Questions (FAQ)
Selection & Specifications
- When should I choose the standard cable (option 02) over FluidLoc?
- Choose standard cable for general indoor or controlled environments without exposure to fluids or harsh chemicals.
- What is the key benefit of the 6.2-inch case length?
- It allows the probe to reach the measurement point through deep bearing housings or insulation layers on large equipment.
Compatibility & Application
- Can I cut the 5-meter cable to a shorter length if needed?
- No. The cable length is integral to the electrical calibration. Cutting it will make the probe readings inaccurate.
- Is this probe only for vibration measurement?
- Primarily for vibration, but it can also measure axial position (thrust) and radial play when used in appropriate systems.
Ordering & Service
- What is the lead time and after-sales support?
- We stock for fast dispatch via DHL, FedEx, or UPS. All products include reliable 12-month warranty support.
For help selecting the right probe for your large machine, contact us today.
