Bently Nevada 330707-00-26-10-11-05 | 11 mm Proximity Probe

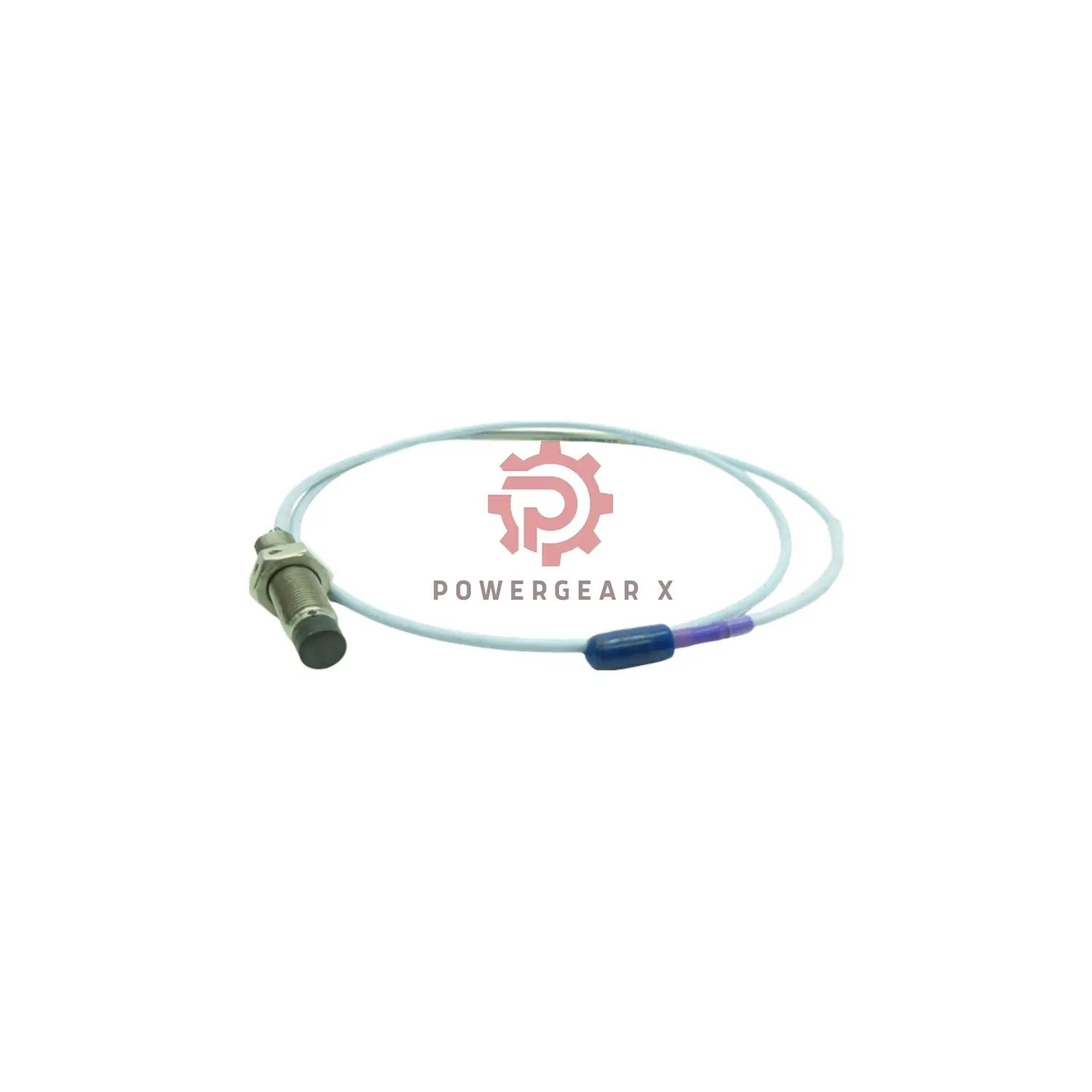

Bently Nevada 330707-00-26-10-11-05 3300 XL 11 mm Proximity Probe

Model Code Breakdown

• 330707 – 11 mm probe, 5/8-18 UNF thread, no armor
• 00 – No unthreaded section
• 26 – Case length: 2.6 inches
• 10 – Cable length: 1.0 meter (3.3 feet)
• 11 – ClickLoc connector with protector, FluidLoc cable
• 05 – Certified for multiple standards

Main Features

• Gap range: Up to 11 mm
• Output: 75 Ohm triaxial signal
• Probe resistance: 5.9 ± 0.5 Ohm (at 1 m)
• Operating temperature: -52°C to +177°C
• Seal: Viton O-ring for pressure sealing
• Weight: 0.17 kg

Materials

• Tip: PPS (Polyphenylene sulfide)
• Case: AISI 304 stainless steel
• Cable: FEP insulated, FluidLoc protected

Installation and Threads

• Main thread: 5/8-18 UNF, 0.938 in deep
• Other threads: M16×1.5 (24 mm), M14×1.5 (21 mm)
• Case torque: 15.2 N·m (recommended), 45.2 N·m (max)
• Connector torque: Finger-tight, max 0.565 N·m
• Min bend radius: 25.4 mm

Install Tips

• Use torque tool to prevent damage
• Keep cable bends wide
• Do not use under -34°C
• Place near critical shafts

Package Includes

• 1 probe (330707-00-26-10-11-05)
• 1 meter cable with ClickLoc
• Quick install guide
