Name: Bently Nevada 330707-00-20-90-11-05 | 9m Cable Proximity Probe for Heavy Machinery
SKU: 330707-00-20-90-11-05
Availability: InStock

Product details

Product Introduction: High-Performance 11mm Vibration Sensor

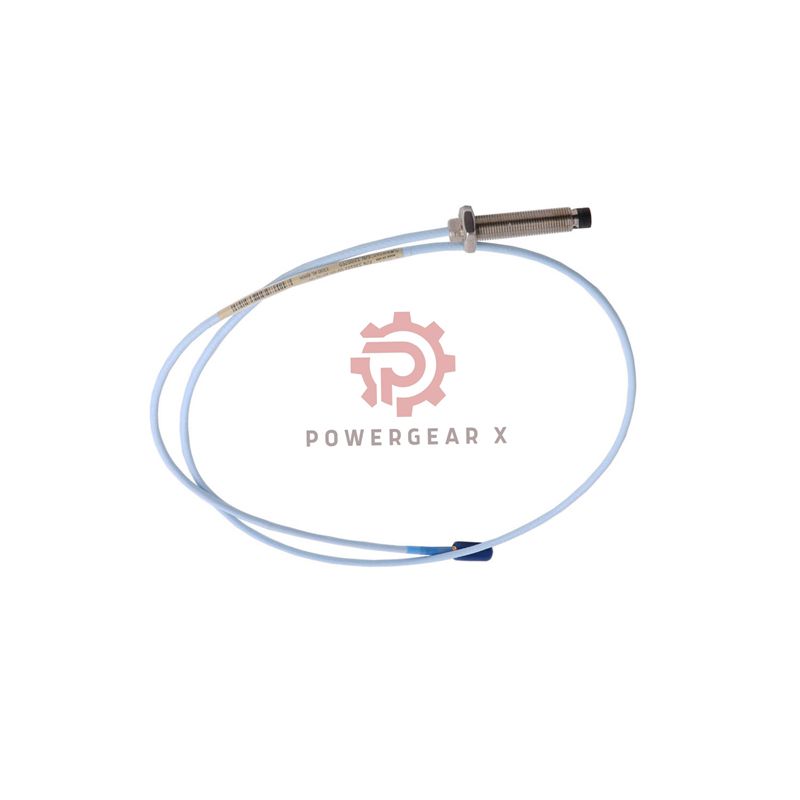

This is the Bently Nevada 330707-00-20-90-11-05. It is a 3300 XL 11mm Proximity Probe. It monitors critical machinery with precision. Made in the USA for top quality and reliability. It helps prevent downtime in turbines, compressors, and large motors.

Why Choose This Probe?

Long-Reach Cable: 9.0 meter cable allows flexible installation on large equipment.
Superior Protection: FluidLoc cable and connector protector resist harsh environments.
Large Thread Design: 5/8-18 UNF thread provides secure mounting in heavy-duty applications.
Global Certification: Multiple approvals for safe use in various industrial zones.
Robust Construction: Stainless steel case and PPS tip ensure long service life.

Complete Technical Details

Manufacturer: Bently Nevada
Full Model: 330707-00-20-90-11-05
- Model Tree:
  - 330707: 3300 XL 11mm Probe, 5/8-18 UNF, No Armor
  - 00: Unthreaded Length = 0.0 in
  - 20: Case Length = 2.0 in
  - 90: Total Cable = 9.0 m (29.5 ft)
  - 11: Connector = ClickLoc with Protector & FluidLoc Cable
  - 05: Approvals = Multiple
Physical & Electrical Data
- Sensing Diameter: 11 mm
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Cable Type: 75 Ω Triaxial, FEP Insulated
- Probe Resistance (9m): 8.5 ± 1.1 ohms
- Shipping Weight: 0.17 Kg
Installation & Environmental Specs
- Operating Temperature: -51°C to +177°C
- Seal Type: Viton O-ring (Differential Pressure)
- Thread Engagement (5/8-18): Max 0.938 inch
- Recommended Case Torque: 15.2 N•m (133 in-lb)
- Connector Torque: Finger tight only (Max 0.565 N•m)
- Minimum Bend Radius: 25.4 mm (1.0 inch)

Expert FAQs for the 330707 Probe

1. What is FluidLoc cable, and why is it important?

FluidLoc cable has special sealing. It resists moisture and chemicals. This protects the signal in wet or oily plant environments. It makes the 330707-00-20-90-11-05 more reliable.

2. My machine has an M16 mounting hole. Can I use this 5/8-18 probe?

No. The thread is different. This probe has a 5/8-18 UNF thread. You need an adapter or a different model for an M16 hole. Check your mounting specs before ordering.

3. The 9-meter cable seems very long. When do I need this?

Yes, 9 meters is long. It is for large machines where the monitor is far from the measurement point. Like big turbines or generators. It reduces the need for cable extensions.

4. What is your warranty and shipping policy?

All products come with a 12-month warranty. We ship worldwide using reliable carriers like FedEx, UPS, and DHL. You get tracking information for your order.

5. How do I connect the ClickLoc connector correctly?

Just push and click. Do not use tools. The maximum torque is very low (5 in-lb). Overtightening can damage it. Ensure it is clean and finger-tight for a good connection.
