Product details

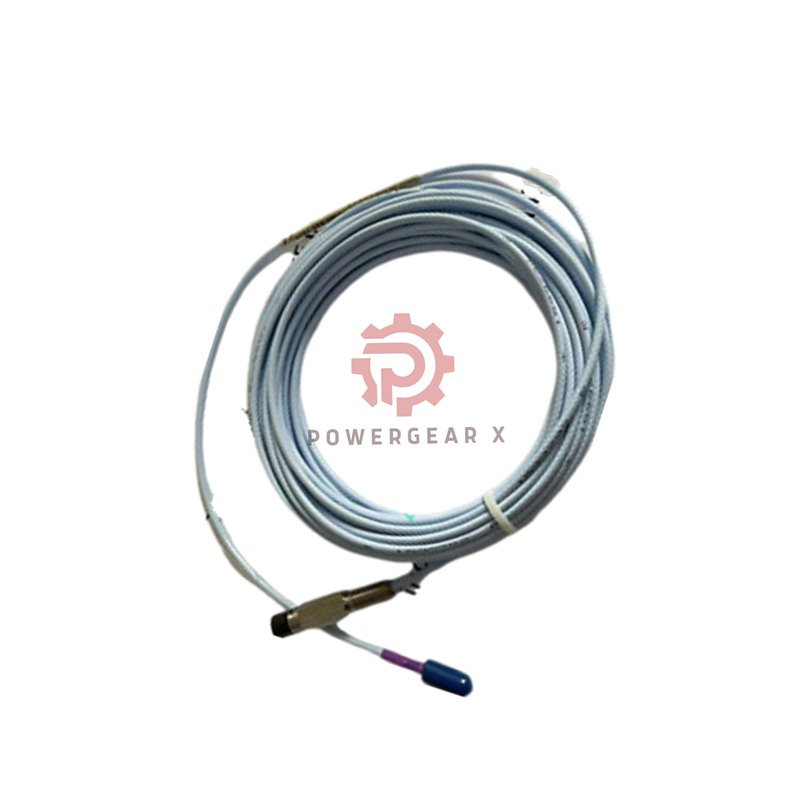

11mm Reverse Mount Vibration Probe with Long Cable
The Bently Nevada 330705-02-18-50-00-00 is a specialized 11mm diameter reverse mount probe. Designed for applications requiring longer cable runs with a 5-meter integrated cable. Made in the USA with robust construction. It works specifically with the 5-meter Proximitor Sensor system for precise machinery monitoring.
Product Configuration Details
- Complete Model Number: 330705-02-18-50-00-00
- 330705: 3300 XL 11mm Reverse Mount Probe Series
- 02: Thread Type = 3/8-24 UNF
- 18: Case Length Option = 1.8 inches
- 50: Cable Length = 5.0 meters (16.4 feet)
- 00: Connector = Miniature ClickLoc Coaxial
- 00: Approvals = Not Required
Key Features & Design Benefits
- Reverse Mount Design: Special configuration for specific mounting orientations.
- Long Integrated Cable: 5-meter cable eliminates need for separate extensions.
- Larger 11mm Diameter: Provides enhanced durability and strength.
- System Specific: Designed exclusively for use with 5-meter Proximitor Sensor systems.
- High-Quality Materials: PPS tip and 304 stainless steel body ensure longevity.
- Triaxial Cable: 75 Ω FEP-insulated cable for stable signal transmission.
Technical Specifications
- Electrical Specifications:
- Probe Resistance: 7.2 Ω ± 0.8 Ω (5.0m system)
- Cable Type: 75 Ω Triaxial with FEP insulation
- Connector: Miniature ClickLoc Coaxial
- Mechanical Specifications:
- Diameter: 11mm (larger than standard 8mm probes)
- Thread: 3/8-24 UNF
- Case Length: 1.8 inches
- Weight: 0.07 Kg
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Environmental Ratings:
- Temperature Range: -52°C to +177°C operation
- Pressure Seal: Viton® O-ring design
- Materials: PPS Tip, 304 SST Body
Package & Service Information
- One (1) Bently Nevada 330705-02-18-50-00-00 reverse mount probe
- 5-meter integrated triaxial cable with ClickLoc connector
- 12-month manufacturer warranty
- Fast global shipping via FedEx, UPS, DHL carriers
- For specialized machinery and custom installations
Professional FAQs
Product Application
- What does “reverse mount” mean for this probe?
Reverse mount refers to a specific mechanical orientation where the probe installs differently than standard forward-mounted probes, often used in special machinery designs.
- Can I use this 5-meter probe with a standard 1-meter Proximitor?
No. This probe is specifically designed for use only with the matching 5-meter Proximitor Sensor system.
Technical Specifications
- Why is this probe 11mm instead of the standard 8mm?
The 11mm diameter provides extra mechanical strength and durability for demanding applications where reverse mounting is required.
- What is triaxial cable and why is it used?
Triaxial cable has three conductive layers for better shielding and noise rejection, important for long cable runs in noisy environments.
Installation & Support
- How do I properly route the 5-meter cable during installation?
Maintain a minimum 1-inch bend radius, secure the cable regularly, and avoid sharp edges or excessive tension.
Need technical support for reverse mount applications? Contact our experts at sales@powergearx.com or WhatsApp: +86 18030005825.
