Long-Reach 11mm Sensor for Deep Mounting Applications

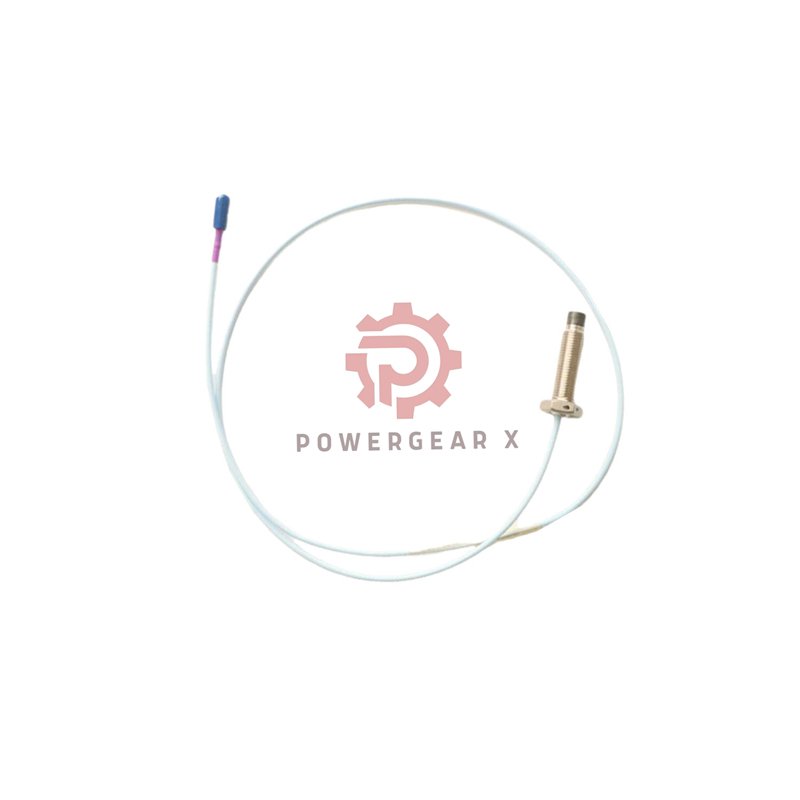

Presenting the Bently Nevada 330703-000-120-10-02-00, a robust 3300 XL series proximity probe. This model features an extended 120mm case length for installations requiring deeper penetration. It utilizes a standard ClickLoc connector without a protective cap for direct access. Designed for general-purpose industrial monitoring where special approvals are not mandated. Every sensor is supplied as new, original stock, complete with a 12-month manufacturer warranty.
Detailed Product Specifications
- Complete Part ID: 330703-000-120-10-02-00
- Brand & Platform: Bently Nevada 3300 XL Condition Monitoring
- Sensing Element: Large 11mm Diameter Eddy-Current Tip
- Mechanical Design: 120mm Full-Length Threaded Case (M14x1.5).
- Unthreaded Section: 0 mm – Threads run the full usable case length.
- Integrated Wiring: 1.0 meter (3.3 ft) of durable 75-ohm triaxial cable.
- Connector Type: Miniature Coaxial ClickLoc (without attached protector).
- Electrical Baseline: Nominal probe coil resistance is 5.9 ± 0.5 Ohms.
- Environmental Robustness: Operating temperature span: -52°C to +177°C.
- Mounting Strength: High recommended installation torque: 21.1 N•m.
- EMI Resistance: Very low susceptibility to 60 Hz magnetic field interference.
Optimized Installation Guidance
- This 120mm long probe is ideal for deep mounting holes or thick machine walls.
- The fully threaded case allows for precise depth adjustment over its entire length.
- Ensure the tapped hole is deep enough to allow full engagement without bottoming out.
- Apply torque gradually to achieve a secure, sealed fit at the recommended value.
- Since no connector protector is fitted, take care to keep the connector clean before use.
Key Value Propositions
- Extended Reach: Solves installation challenges on equipment with deep bearing housings or complex internal structures.
- Simplified Connection: The standard ClickLoc connector allows for quick mating with extension cables without removing a protector.
- Cost-Effective Solution: Option -00 (no agency approvals) provides a reliable, high-quality sensor for standard industrial environments.
- Proven Performance: Inherits the superior stability and magnetic immunity of the 3300 XL 11mm probe family.
- Supply Chain Certainty: Available from stock for immediate shipment to keep your projects on schedule.
Technical Support & FAQs
What is the primary use case for a 120mm long probe case?
It is used on large machinery like steam turbines, generators, or heavy compressors where the distance from the mounting surface to the target shaft is significant.
What is the difference between connector option -01 and -02?
Option -01 includes a protective screw-on cap. Option -02 (this model) has the connector exposed, ready for immediate connection to a cable.
Can this probe be used in a non-hazardous area within a plant that also has hazardous zones?
Yes. The “approval not required” option is intended for general-purpose, non-classified areas. Always verify area classification requirements for your specific installation.
How critical is the torque specification during installation?
Very important. Proper torque ensures the probe body seals correctly against the mounting hole, preventing oil leaks and maintaining grounding integrity.
How do I proceed with ordering and delivery?
Contact us for current pricing and stock. We process orders promptly and ship worldwide via FedEx, UPS, or DHL. The 330703-000-120-10-02-00 includes a full 12-month warranty for your assurance.
Package Contents & Guarantee
- Item Delivered: One Bently Nevada 330703-000-120-10-02-00 proximity probe.
- Condition: 100% New, Original Manufacturer’s Product.
- Warranty Coverage: Comprehensive 12-month warranty from shipment date.
- Shipping Services: Express international courier options available upon request.
For sales inquiries, volume pricing, or technical data sheets, please reach out.
