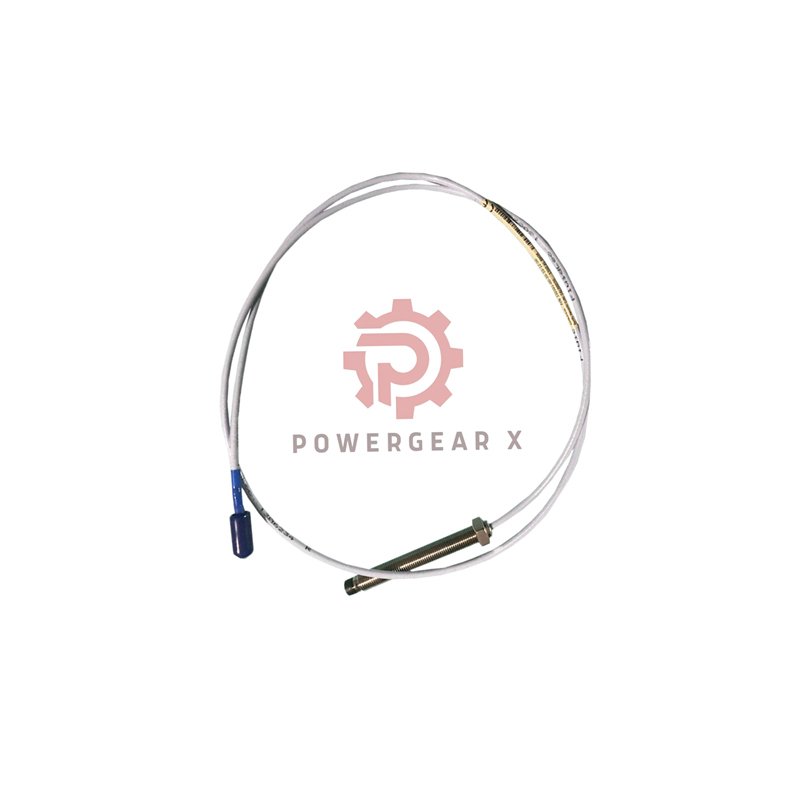

Name: Bently Nevada 330702-00-30-90-12-00 | 3-Inch Case Probe with 9m FluidLoc Cable
SKU: 330702-00-30-90-12-00
Price: 258.00 USD
Availability: InStock

Product details

Heavy-Duty Probe for Wet Environments

This Bently Nevada 330702-00-30-90-12-00 is engineered for challenging conditions. It combines a long 3-inch case with a 9-meter FluidLoc cable. Perfect for applications exposed to oils, coolants, or moisture where hazardous area certifications are not required.

Understanding Your Probe’s Code

Product Line: Bently Nevada 3300 XL Monitoring System
Model Identifier: 330702-00-30-90-12-00
- 330702: Core 11mm Armored Sensor (1/2-20 UNF)
- 00: Unthreaded Shank = 0 inches
- 30: Probe Body Length = 3.0 inches
- 90: Attached Cable = 9.0 meters
- 12: Cable Type = FluidLoc (Fluid-Resistant)
- 00: Agency Approvals = Not Required
Key Advantage: FluidLoc cable jacket provides superior protection against industrial fluids and washdowns.
Sturdy Construction: Extended 3-inch case offers enhanced mounting stability in high-vibration machinery.
Standard Use: Designed for general industrial plants without explosive atmospheres.

Primary Technical Data

Electrical Spec: DC Resistance: 8.5 Ω ± 1.1 (9m cable).
Installation Parameters:
- Mounting Thread: 1/2-20 UNF.
- Installation Torque: 15.2 N·m (133 in·lb).
- Cable Care: Maintain a 1.0-inch minimum bend radius.
Material Build: Housing: 304 SST. Tip: PPS. Seal: Viton O-ring.
Temperature Limits: Reliable operation from -51°C to +177°C.
Important Note: Prolonged exposure below -34°C may compromise the seal.

Specialist FAQs & Purchase Advice

Product Features & Selection

What is the main use for the FluidLoc cable?
The FluidLoc cable is essential in wet areas like paper mills, food processing, or machining centers. It resists degradation from oils, water, and chemicals that standard cable cannot.
Why choose the 3-inch case length?
The ‘-30-‘ case length (3 inches) provides more thread contact. This ensures a very secure fit in deep mounting holes, reducing mechanical noise.

Compatibility & Application

Can this probe be used in a Division 2 area?
No. The 330702-00-30-90-12-00 has ‘-00-‘ for approvals. It is for non-hazardous areas only. For Division 2, select a model with ‘-05-‘ suffix.
My cable run is less than 9 meters. Is that okay?
Yes. You can neatly coil the excess cable. Ensure the coil diameter is larger than the 2-inch minimum bend radius to avoid damage.

Ordering & Support

What support comes with the probe?
Your purchase is protected by a 12-month manufacturer’s warranty. We ship globally via reliable carriers like FedEx, UPS, and DHL for efficient delivery.
