Product details
Protected Mid-Range Vibration Sensor for General Use

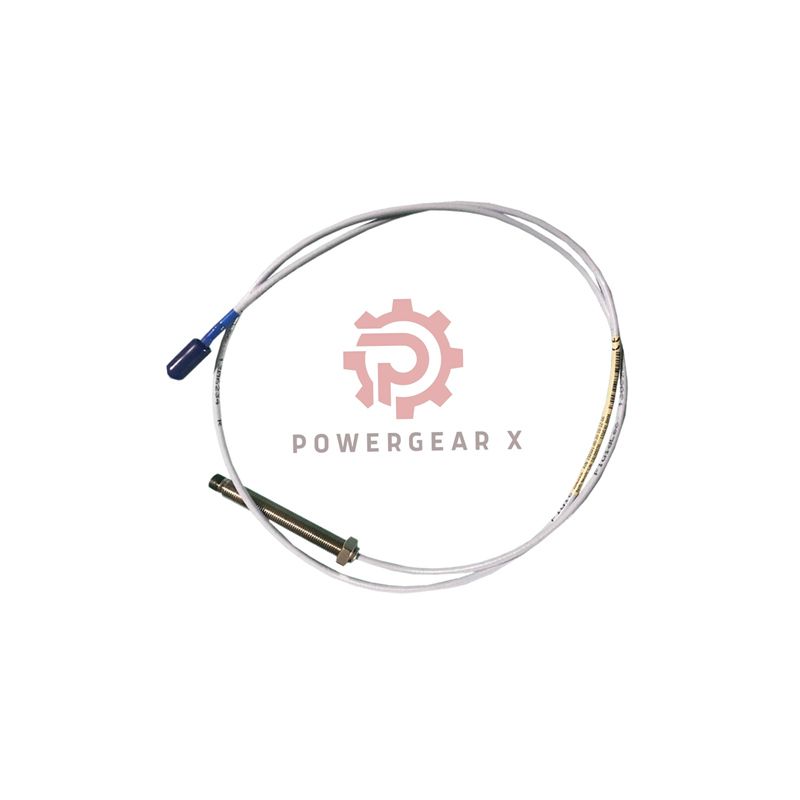

This is the Bently Nevada 3300 XL 11 mm Proximity Probe. Model 330702-00-30-50-01-00 offers a balanced solution. It features a 5-meter standard cable, a protective connector guard, and a longer 3-inch case. It is designed for reliable vibration monitoring in standard industrial environments. This durable sensor is made in the USA.
Looking for a robust sensor without hazardous area certification? Contact us: sales@powergearx.com or +86 18030005825.
Balanced Performance & Protection
- Guarded Connection: Connector protector prevents damage and accidental disconnection.
- Optimal Reach: 5.0-meter cable is ideal for many common machine-monitor distances.
- Deep Mount Ready: 3.0-inch case length provides secure installation in thicker mounts.
- Rugged Armored Design: Stainless steel armor ensures cable durability in busy plants.
- Cost-Effective Choice: Standard cable offers great value for non-hazardous, dry areas.
Specifications & Configuration Details
- Product Identity
- Manufacturer: Bently Nevada
- Type: 3300 XL 11mm Proximity Probes
- Complete Model: 330702-00-30-50-01-00
- 330702: Base (11mm, 1/2-20 UNF, Armored)
- 00: Unthreaded = 0.0 in
- 30: Case = 3.0 in
- 50: Cable = 5.0 meters
- 01: Features = ClickLoc with Protector, Standard Cable
- 00: Approvals = Not Required
- Construction & Fit
- Body: AISI 304 Stainless Steel
- Tip: PPS (Polyphenylene Sulfide)
- Mounting: 1/2-20 UNF Thread
- Case Length: 3.0 inches (76.2 mm)
- Install Torque: 15.2 N•m (133 in-lb)
- Sealing: Viton® O-Ring
- Electrical Data
- Cable Type: 75 Ω Triaxial, FEP Insulated
- Cable Length: 5.0 meters (16.4 feet)
- Probe Resistance (RPROBE): 7.2 Ω ± 0.8
- Connector: Miniature Coaxial ClickLoc with Protector
- Minimum Bend: 25.4 mm (1.0 in) radius
- Operational Limits
- Temperature: -51°C to +177°C
- Key Note: For use with 5-meter Proximitor Sensor only.
- Storage Caution: Avoid temperatures below -34°C to protect the internal seal.
Practical FAQs & Buying Advice
- What is the difference between “01” and “11” connector options?Option “01” has a protector with standard FEP cable. Option “11” has a protector with FluidLoc cable, which has better chemical resistance.
- Is the standard cable suitable for outdoor use?The FEP insulation offers good moisture resistance. For permanent outdoor exposure or direct water spray, the FluidLoc option (“11” or “12”) is more recommended.
- Why does the probe require a matching 5-meter proximitor?The system’s electrical calibration is optimized for specific cable lengths. Mismatching lengths can cause signal errors and affect measurement accuracy.
- Can I use this 330702-00-30-50-01-00 in a high-vibration area?Yes. The armored cable and connector protector are specifically designed to withstand high-vibration environments and prevent connection failure.
- How does the 3-inch case help with installation?The extra length ensures full thread engagement in deep mounting holes. It also provides more surface area for the sealing O-ring to function correctly.
Ordering & Service Information
- Warranty: All products come with a standard 12-month manufacturer’s warranty.
- Shipping Speed: Orders are processed quickly and shipped via FedEx, UPS, or DHL for reliable delivery.
- Selection Tip: Choose this model for general indoor industrial use with a 5m run. Ensure your environment is relatively dry. Confirm you have a 5m proximitor.
- Get a Quote: Contact us for pricing and to check stock availability.
For product specifications or to place an order. Email sales@powergearx.com or message on WhatsApp at +86 18030005825.
