Product details
Professional Machinery Health Sensor

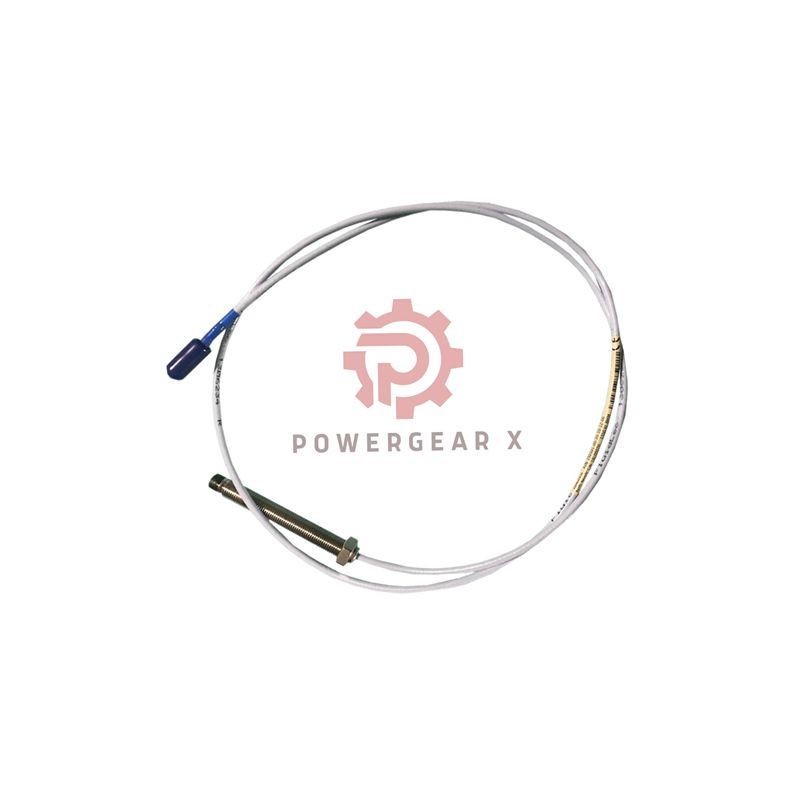

This Bently Nevada 330702-00-26-10-02-05 is a precision 11mm proximity probe. It delivers reliable vibration data for industrial equipment. The sensor helps prevent machine failures. It ensures continuous operation in demanding environments.
Product Configuration Details
- Brand: Bently Nevada
- Product Line: 3300 XL Series Proximity Probes
- Sensor Type: 11mm Diameter Vibration Probe
- Complete Part Code: 330702-00-26-10-02-05
- 330702 – 11mm Probe, 1/2-20 UNF, Armored Version
- 00 – No Unthreaded Section (0.0 inch)
- 26 – Case Measures 2.6 Inches Long
- 10 – Cable Length is 1.0 Meter (3.3 feet)
- 02 – Standard Miniature Coaxial ClickLoc Connector
- 05 – Carries Multiple Global Safety Approvals
- Manufacturing Origin: Made in U.S.A.
Technical Performance Data
- Mechanical Build
- Mounting Thread: 1/2-20 UNF Standard
- Maximum Thread Engagement: 0.750 inch
- Housing Material: Durable AISI 304 Stainless Steel
- Sensing Tip: Robust Polyphenylene Sulfide (PPS)
- Sealing Element: Reliable Viton® O-ring
- Electrical Specifications
- Cable Impedance: 75 Ohm Triaxial Design
- Cable Insulation: FEP for Temperature Resistance
- Probe DC Resistance (1m): 5.9 Ω ± 0.5 Ω
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Installation Guidelines
- Recommended Case Torque: 15.2 N•m (133 in-lb)
- Maximum Case Torque: 45.2 N•m (400 in-lb)
- Connector Torque: Finger Tight Only
- Environmental Limits
- Operating Temperature: -52°C to +177°C
- Low-Temperature Warning: Avoid below -34°C for seal safety
- Temperature Classifications: T1 through T5 available
- Hazardous Area Ratings: Certified for EPL Ga/Gc/Dc
- Physical Properties
- Shipping Weight: Approximately 0.17 Kg
- Cable Options: Available in 1, 5, or 9 meter lengths
- Pressure Note: Seal designed for differential pressure
Core Benefits for Your Application
- Accurate Monitoring: Provides precise data for condition-based maintenance.
- Rugged Design: Stainless steel construction handles tough industrial settings.
- Easy Integration: Standard ClickLoc connector allows quick setup.
- Global Acceptance: Multiple agency approvals simplify site compliance.
- Proven Quality: Bently Nevada reliability supports critical operations.
Expert Questions & Answers
Product Selection Guidance
- When should I choose an 11mm probe over an 8mm probe?
Select the 11mm version for larger machinery or applications requiring a longer linear range and more robust construction. - Is the 1-meter cable length suitable for most pumps and motors?
Yes, the 1-meter (3.3 feet) cable is the standard length for most common motor and pump vibration monitoring installations.
Technical & Performance
- What does the “26” case length mean for my mounting hole?
You need a mounting hole deep enough to accommodate the 2.6-inch long probe body, plus space for the connector. - How does the FEP insulated cable benefit my installation?
FEP insulation offers excellent chemical and temperature resistance, ideal for harsh industrial environments near heat or chemicals.
Ordering & Logistics
- What is the delivery and support process?
All orders include a 12-month warranty. We ship quickly via FedEx, UPS, or DHL. Our team provides pre-sales and technical support.
Ready to Order This Sensor?
The Bently Nevada 330702-00-26-10-02-05 is in stock. This configuration is popular for general industrial vibration monitoring.
Questions about this model or need a different cable length? Our experts can help you choose. Email us at sales@powergearx.com or connect on WhatsApp (+86 18030005825) for immediate assistance.
