Product details
Product Description

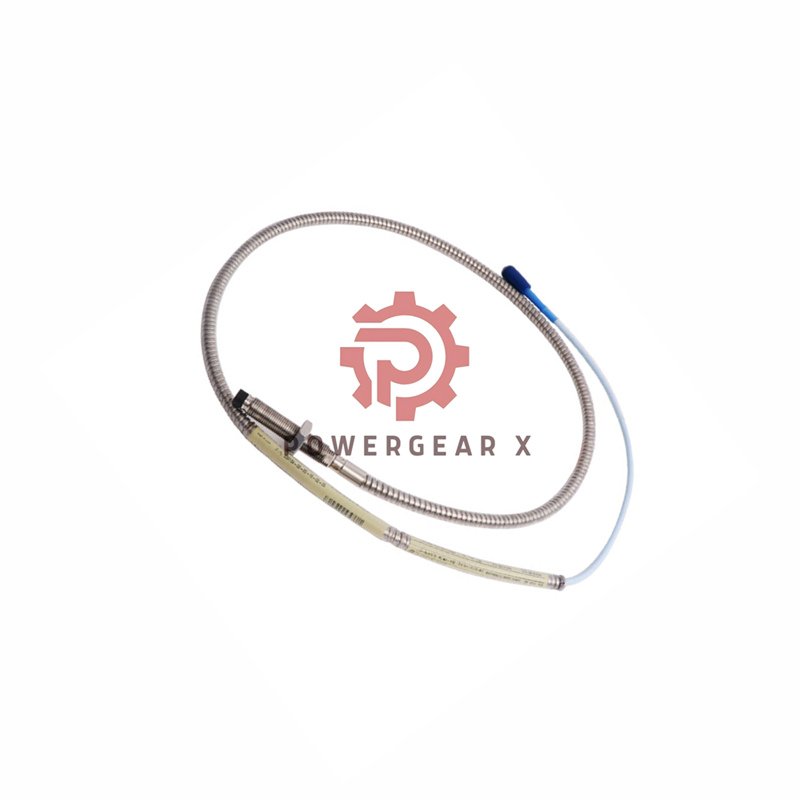

This is the Bently Nevada 3300 XL 8 mm proximity probe. The sensor provides precise vibration monitoring. Model 330104-16-21-05-01-05 is for industrial use. It ensures safety in hazardous environments. The design offers reliable performance and easy integration.
Complete Technical Specifications
Brand & Model
- Brand: Bently Nevada
- Series: 3300 XL Proximity Probes
- Model: 330104-16-21-05-01-05 (Metric)
Core Performance Data
- Linear Range: 2.0 mm (80 mils)
- Frequency Response: 0 to 10 kHz
- Gap Setting (Radial): 1.27 mm (50 mils)
- Nominal Resistance: 7.45 ± 0.5 Ohms
- Scale Factor: 200 mV/mil (7.87 V/mm)
Physical Dimensions
- Thread: M10 x 1.0 metric
- Unthreaded Length: 160 mm
- Total Length: 210 mm
- Cable Length: 0.5 meter (1.6 ft)
- Cable Type: Standard with ClickLoc connector
Materials & Construction
- Probe Tip: Polyphenylene Sulfide (PPS)
- Probe Case: AISI 303/304 Stainless Steel
- Seal: Viton® O-ring
Environmental Ratings
- Operating Temperature: -52°C to +177°C
- Extended Temperature: Up to +260°C for cable
- Humidity: 93% RH compliant
- Max Cable Run: 305 meters to monitor
Certifications & Safety
- Approvals: CSA, ATEX, IECEx
- Intrinsic Safety: ia for Zone 0/Div 1
- Non-Incendive: nA, ec for Zone 2/Div 2
Installation Guide
- Mount with M10x1 thread (max 15 mm engagement)
- Set gap to 1.27 mm for -9 Vdc output
- Use 3-conductor shielded cable
- Ground shield at monitor end only
- For pressure applications, contact us first
Maintenance & Diagnostics
- No routine maintenance required
- Check gap voltage periodically
- Inspect cable condition regularly
- Diagnoses unbalance and misalignment
- Provides early failure warning
System Compatibility
- Bently Nevada 3300 XL systems
- Most vibration monitors accepting 8 mm input
- Works with intrinsic safety barriers
Order & Shipping Details
- Package: 1 probe with connector protector
- Warranty: 12 months limited
- Shipping: FedEx, UPS, DHL available
- Lead Time: Usually in stock
Typical Applications
- Turbine vibration monitoring
- Compressor and pump protection
- Fan and motor bearing monitoring
- Shaft position measurement
- Predictive maintenance systems
Frequently Asked Questions
Selection Questions
- Q: How do I read the part number?
- A: 330104=8mm probe, 16=160mm unthreaded, 21=210mm total, 05=0.5m cable, 01=ClickLoc, 05=ATEX approvals.
- Q: Is this ready for hazardous areas?
- A: Yes. This model includes ATEX, IECEx, and CSA approvals for use with proper barriers.
Installation Questions
- Q: What is the correct gap setting?
- A: Set to 1.27 mm (50 mils) from target for radial vibration measurement.
- Q: Can I extend the cable length?
- A: Use up to 305 meters of proper shielded cable. Signal may reduce at high frequencies.
Technical Questions
- Q: What is the pressure rating?
- A: Probes have Viton seals but are not pressure tested. Contact us for high-pressure needs.
- Q: What targets work best?
- A: Ferrous steel targets provide optimal performance and sensitivity.
Purchase Guidance
- Q: How do I order the correct probe?
- A: Verify thread size, length, cable, and certification needs match your application.
- Q: Do you provide technical support?
- A: Yes. Our engineers help with selection and installation questions.
How to Order & Support
Contact us for pricing and technical support:
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
We help you select the right sensor for your machinery protection needs.
