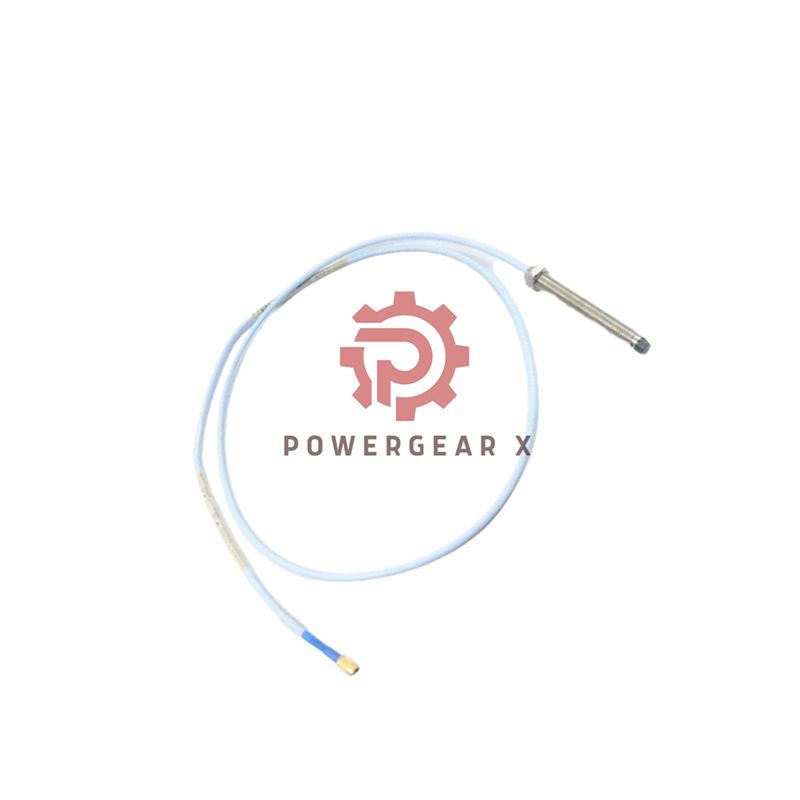

Name: Bently Nevada 330104-15-25-10-02-05 | Long Shank 150mm Vibration Probe
SKU: 330104-15-25-10-02-05
Availability: InStock

Product details

Extra-Long Reach Vibration Sensor

The Bently Nevada 330104-15-25-10-02-05 is engineered for specialized applications requiring deep penetration into equipment. With a 150mm unthreaded section and a 250mm total case, this probe can reach measurement points through thick housings or insulation.

Detailed Model Specification

Part Number Configuration: 330104-15-25-10-02-05

Product Line 330104: 3300 XL 8mm Armored Probe Series
- Segment -15: Unthreaded Shank = 150mm
- Segment -25: Total Case Length = 250mm
- Segment -10: Attached Cable = 1.0 Meter
- Segment -02: Connection = Standard ClickLoc
- Segment -05: Certifications = CSA, ATEX, IECEx

Core Technical Data

Monitoring Purpose: Vibration and Position Detection
Linear Detection Range: 2.0 mm (0.25 to 2.3mm)
Factory Gap Setting: 1.27 mm for -9 Vdc Output
Physical Construction: PPS Tip, 304 SST Body (M10x1)
Operating Climate: -52°C to +177°C Standard
Sealing System: Viton® O-Ring, High Humidity Rated
Electrical Properties: 1.0m Cable, 7.59 Ω ± 0.50
Wiring Guidelines: Use shielded cable, max 305m run.

Unique Advantages

Deep Access Design: 150mm smooth shank allows mounting through deep adapters or thermal barriers.
Extended Body: 250mm overall length provides maximum reach for challenging installations.
Global Compliance: Carries major international safety certifications for hazardous areas.
Proven Reliability: Built with industrial-grade materials for long service life.
Standard Interface: Compatible with common 3300 XL monitoring systems.

Certification & Safety

Certified for Class I, Zone 0 & 2 hazardous locations.
Approvals: CSA (Canada/US), ATEX (EU), IECEx (International).
Must be installed with specified intrinsic safety barriers.

Ordering & Logistics

Package Includes: One complete probe assembly.
Warranty Coverage: 12-month limited warranty applies.
Shipping Options: Fast delivery via FedEx, UPS, and DHL available worldwide.

Application FAQs & Selection Advice

What applications need a 150mm unthreaded section?

This is used when the probe must pass through a deep mounting sleeve, a thick machine wall, or an insulation jacket before reaching the measurement point.

How is the 250mm case length used during installation?

The long 250mm body provides extra leverage and space for tools. Only the first 15mm of threads at the tip should be engaged in the final mounting point.

Are the approvals on this model different?

Yes. The 330104-15-25-10-02-05 includes full CSA, ATEX, and IECEx certifications. This is essential for projects with strict global safety requirements.

Does the long shank affect the probe’s sensitivity?

No. The sensing performance is identical to standard probes. The extended length is a mechanical feature only.

What are critical checks before ordering this special probe?

Accurately measure the depth your probe must travel. Confirm you need the global hazardous area approvals. Ensure your mounting hardware can accommodate the 250mm length.
