Bently Nevada 330104-01-06-10-01-00 | M10 Metric 8mm Armored Vibration Probe

Metric Thread 8mm Proximity Probe with Armor

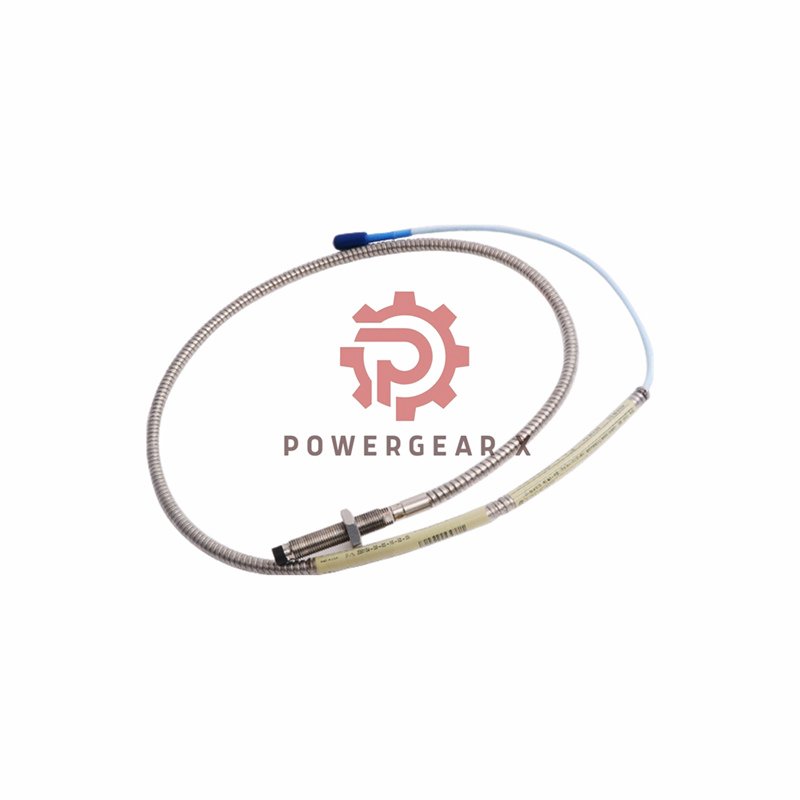

This is the Bently Nevada 330104-01-06-10-01-00. It is a robust 3300 XL 8mm Proximity Probe designed with an armored case and M10x1 metric threads. This model is perfect for machinery and equipment using the metric system. It features a connector protector for safe handling. It delivers reliable vibration measurement with global compatibility.

Key Product Highlights

• Metric Thread Standard: Equipped with M10x1 threads for direct installation into metric machinery. No adapters are needed.
• Armored Case for Protection: The 330104 base model includes a protective armor. This adds an extra layer of defense against physical impact.
• Connector Safety Guard: The -01 connector option includes a plastic protector. It prevents damage to the ClickLoc connector pins during transport.
• Compact & Efficient Design: With a 60mm overall case, it offers a balanced size for many industrial applications.
• Patented Robust Technology: Incorporates Bently Nevada’s reliable TipLoc and CableLoc designs for long service life.

Model Configuration & Technical Details

Deciphering the Part Number:

• Product Line: 330104 (3300 XL 8mm Probe, Armored, M10x1 Thread)
• Full Specification: 330104-01-06-10-01-00
  • -01: Unthreaded Length = 10 mm
  • -06: Overall Case Length = 60 mm
  • -10: Integrated Cable = 1.0 meter
  • -01: Connector = ClickLoc with Protector
  • -00: Agency Approvals = Not Required (Standard)

Core Performance & Mechanical Data:

• Thread & Mounting: M10 x 1.0 mm metric thread. Max engagement: 15 mm.
• Measurement Range: Linear range of 2.0 mm (80 mils).
• Setup Voltage: Target -9 Vdc for standard radial vibration gap.
• Temperature Range: Standard operation from -52°C to +177°C.
• Construction: PPS plastic tip. Armored stainless steel (AISI 303/304) case.
• Electrical: Nominal resistance: 7.59 Ω ±0.50 Ω. Use with shielded field wiring.
• Torque: Recommended installation torque: 11.2 N•m (100 in•lbf).

Installation & Application Guide

• This probe is ideal for European and Asian machinery, or any system designed with metric fittings.
• Ensure the mounting hole is clean and has the correct M10x1 tap. Do not exceed 15mm of thread engagement.
• Remove the plastic connector protector before plugging the probe into the proximitor sensor.
• Use a metric torque wrench. Apply 11.2 N•m to the probe’s hex flats for a secure fit.
• It is fully compatible with the Bently Nevada 3300 XL monitoring system. Simply connect and configure.
• The armored case provides extra durability in environments with potential for scrapes or impacts.

Purchase & Support Information

• What’s Included: One armored metric probe with 1m cable and connector protector.
• Warranty: All products are covered by a reliable 12-month warranty.
• Shipping Options: Fast international shipping via FedEx, UPS, and DHL is available.
• Typical Use: Perfect for pumps, motors, and fans on metric-designed production lines and equipment.
• Diagnostic Role: Provides accurate shaft vibration data to support predictive maintenance programs.

Specialist FAQ for Metric Probes

What is the difference between model 330101 and 330104?

330101 has a standard case with 3/8-24 UNF threads. The 330104 model has an armored case with M10x1 metric threads. The armor offers added physical protection.

Can I use this M10 probe in an existing 3/8-UNF tapped hole?

No. The threads are different. You would need a suitable thread adapter (e.g., M10 male to 3/8-UNF female), which may affect the probe’s mechanical stability and engagement.

Is the “armor” an extra metal sleeve over the case?

Yes. The armored version has an additional outer stainless steel sleeve. It protects the inner probe case from direct impact and abrasion.

What does the “01” unthreaded length (10mm) mean for installation?

It means the first 10mm of the probe case behind the tip is smooth (unthreaded). This allows you to align the probe easily before the M10 threads start to engage.

Do you offer hazardous area versions of this metric probe?

Yes. You would need to order a variant with the approval suffix -05 (e.g., 330104-01-06-10-01-05) for CSA, ATEX, and IECEx certifications.

What is your process for returns or exchanges?

We accept returns for unopened items within 14 days. For defective items under our 12-month warranty, contact us with details for a replacement. We ship replacements via FedEx/UPS/DHL for speed.

Need a different metric probe length?

We can source various configurations. The suffix -06 denotes a 60mm case. Other lengths are available. Contact us with your specific 330104-XX-XX-XX-XX-00 requirements.
