Bently Nevada 330104-00-07-90-02-00 in Stock | Proximity Probe with Integrated Long Cable

Bently Nevada Long-Cable Proximity Probe for Remote Mounting

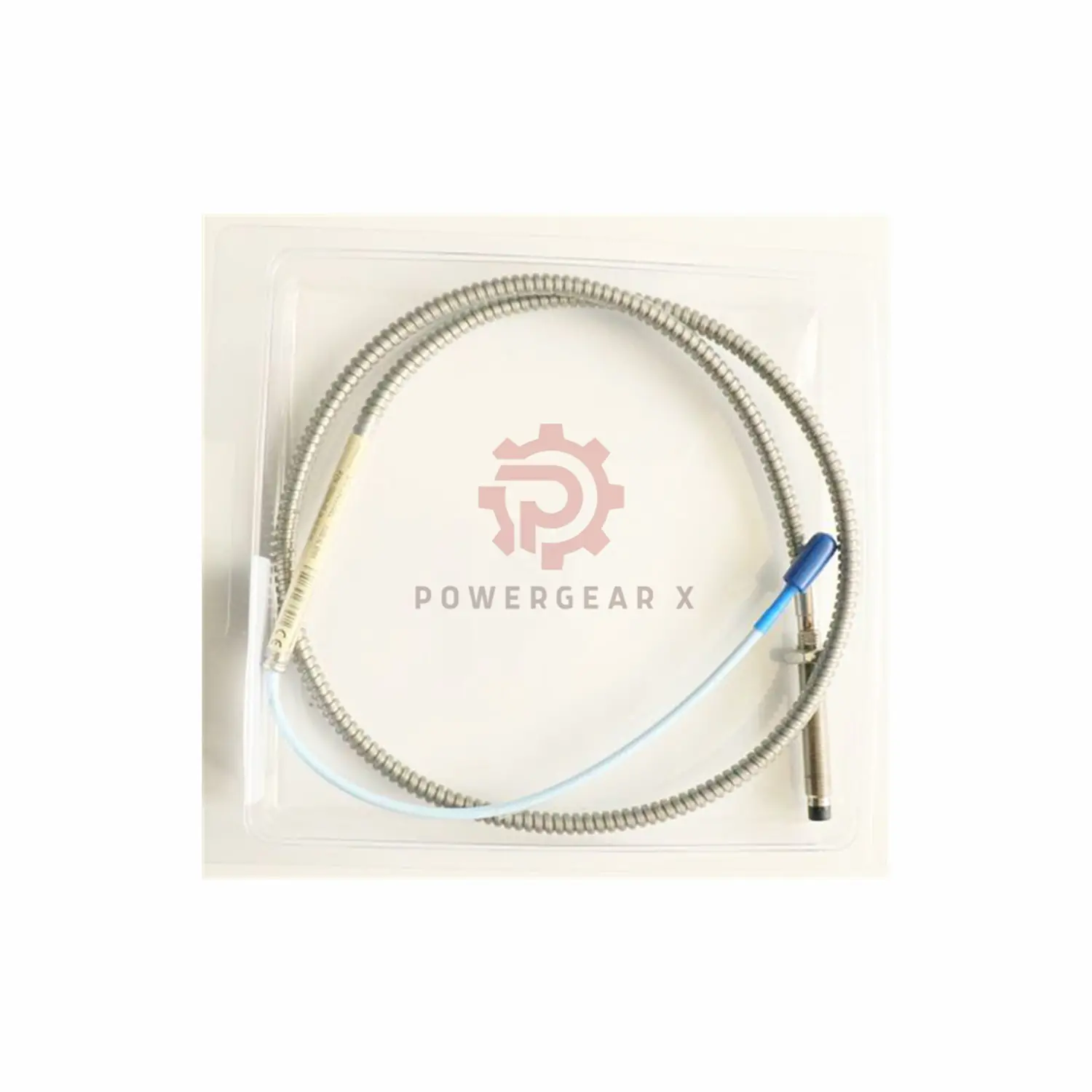

This is the Bently Nevada 330104-00-07-90-02-00. It features an integrated 9-meter cable, eliminating the need for extensions. The compact 70mm fully threaded body allows deep or flush mounting. Perfect for applications where the monitor is located far from the measurement point.

Part Number Structure

Model: 330104-00-07-90-02-00

• Series (330104): 3300 XL 8mm, M10x1, Armored.
• Style (00): Unthreaded Length = 0 mm (Fully Threaded).
• Size (07): Compact Case = 70 mm total length.
• Cable (90): Long Integrated Cable = 9.0 meters.
• Connection (02): Standard ClickLoc Connector.
• Approval (00): Standard Industrial Use.

Core Technical Data

• Purpose: Continuous vibration and position monitoring.
• Performance:
  • Linear Range: 0.25 mm to 2.3 mm from target.
  • Optimal Gap: Approximately 1.27 mm.
  • Probe Resistance: 9.87 Ω ± 0.50 (for 9m cable).
  • System Flexibility: Reduces need for extra junction boxes.
• Construction:
  • Body: Robust Stainless Steel (303/304).
  • Tip: Durable PPS Material.
  • Seal: Internal Viton® O-Ring.
• Environmental:
  • Operating Temperature: -52°C to +177°C.
  • Design: Suitable for long cable runs in industrial settings.

Ordering & Installation Guide

• Key Benefit: The long integrated cable simplifies installation by reducing connection points.
• Compatibility: Connects directly to Bently Nevada 3300 XL Proximitor monitors.
• Package & Service:
  • Includes one probe with factory-terminated 9m cable.
  • Protected by a 12-month product warranty.
  • Fast worldwide delivery via FedEx, UPS, and DHL.
• Contact Us: For sizing help: Email or WhatsApp +86 18030005825.

FAQ for Long-Cable Probes

Q: Why choose a probe with a 9-meter integrated cable?

A: It provides a continuous, reliable connection from the probe to the junction box or monitor, eliminating a splice point and potential failure.

Q: Does the longer cable affect the vibration signal?

A: The system is designed for it. Refer to the frequency response graphs for very high-frequency applications, but standard monitoring is fine.

Q: How should I manage and route the long cable?

A: Use cable trays or clamps. Avoid sharp bends. Leave some slack at both ends to prevent strain on connections.

Q: Can I cut the cable shorter if I don’t need all 9 meters?

A>No. Cutting the cable will change its electrical characteristics and void the warranty. Coil and secure the excess length neatly.

Q: What is the advantage of the fully threaded (“00”) body here?

A: It allows maximum flexibility in mounting depth within a tapped hole, which is useful when dealing with long, coiled cable behind the probe.
