Bently Nevada 330102-40-70-10-02-CN In Stock | 8mm Armored Vibration Probe

Product Introduction

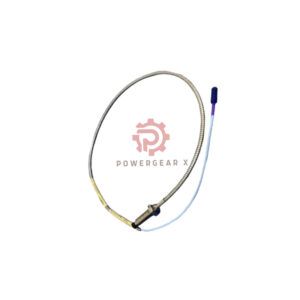

The Bently Nevada 330102-40-70-10-02-CN is a medium-length armored proximity probe. It delivers reliable vibration data for machinery health monitoring. Perfect for standard industrial mounting depths.

Why Choose This Probe?

• Optimized Size: 4.0″ unthreaded length fits common machine housings.
• Robust Armor: Steel armor protects the cable from physical damage.
• Stable Signal: Consistent 7.59 Ω resistance ensures accurate readings.
• Harsh Environment Ready: Operates in extreme temperatures and high humidity.
• Plug-and-Play: ClickLoc connector enables fast, secure installation.

Technical Specifications

• Product Identification: Bently Nevada 330102-40-70-10-02-CN
• Part Number Analysis:
  • Base Model: 330102 (8mm Armored Probe)
  • Unthreaded Length: 40 = 4.0 Inches
  • Case Length: 70 = 7.0 Inches Total
  • Cable Length: 10 = 1.0 Meter
  • Connection: 02 = ClickLock Connector
  • Certification: CN = Country-Specific Approval
• Performance Data
  • Electrical Resistance: 7.59 Ω ± 0.50 Ω
  • Sensing Range: 2.0 mm (80 mils) linear
  • Voltage Output: -1 Vdc to -17 Vdc
  • Optimal Gap Setting: 1.27 mm (50 mils)
• Physical Properties
  • Thread Specification: 3/8-24 UNF
  • Case Options: AISI 303 or 304 Stainless Steel
  • Probe Tip: PPS (Polyphenylene Sulfide)
  • Sealing: Viton O-Ring
• Environmental Limits
  • Temperature Range: -52°C to +177°C
  • Humidity Tolerance: < 3% change at 93% RH
  • Min. Storage Temp: -34°C to preserve seal
  • Hazardous Area Ratings: AEx/Ex ia, nA, ec compliant

Installation & Usage Guide

• Mount using the 3/8-24 UNF thread. Maximum engagement is 0.563 inches.
• For radial vibration, set the initial gap to 1.27 mm from the target shaft.
• Connect field wiring using shielded triad cable (16-24 AWG recommended).
• Keep the probe above -34°C before installation to avoid seal damage.

Purchasing & Support Information

• Quality Guarantee: All products come with a 12-month manufacturer warranty.
• Shipping Options: Express delivery available via FedEx, UPS, and DHL.
• Package Contents: 1 x Armored Probe with integrated 1m cable.

Professional FAQs

Product Specifications

• What do the “40” and “70” dimensions mean in the model number?
• “40” means 4.0 inches of smooth, unthreaded barrel. “70” means the total metal case is 7.0 inches long. This is a medium-length probe.
• Is the probe tip replaceable if it gets damaged?
• No. The PPS tip is molded as part of the probe assembly. If damaged, the entire probe unit must be replaced.

Application & Compatibility

• Can I use this 330102-40-70-10-02-CN in an area with explosive dust?
• Yes. With the proper certified barrier (per drawing 140979), it is approved for Class II & III hazardous dust locations.
• My machine housing is 5 inches thick. Is this probe long enough?
• Yes. The 4.0″ unthreaded section will pass through, and the 7.0″ total length provides enough thread for secure mounting.

Ordering Process

• How fast can I get this probe after ordering?
• We stock popular models like the 330102-40-70-10-02-CN. Orders ship within 1-2 business days via your choice of carrier (FedEx/UPS/DHL).

Contact Us for Pricing and Technical Support
Our team can help with selection, compatibility checks, and bulk orders.
