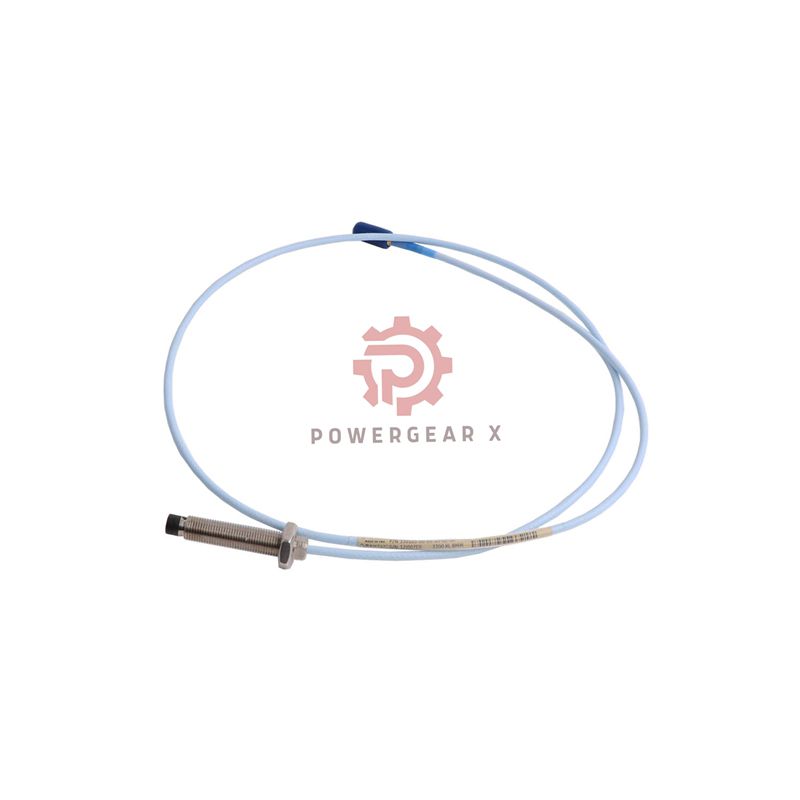

330707-00-20-10-01-00 Bently Nevada 3300 XL Proximity Probe – 11mm

Product Introduction

This is the Bently Nevada 330707-00-20-10-01-00 proximity probe. It is part of the famous 3300 XL series. It measures machine vibration and position. This sensor helps prevent equipment failure. It is made in the USA for high quality.

Product Specifications

Bently Nevada 330707-00-20-10-01-00

• Main Model: 330707
  • Type: 3300 XL 11 mm Proximity Probe
• Configuration Code Details:
  • -00- : Unthreaded Length = 0.0 inch
  • -20- : Case Length = 2.0 inches
  • -10- : Total Cable Length = 1.0 meter (3.3 feet)
  • -01- : Connector = ClickLoc with protector, standard cable
  • -00- : Agency Approval = Not required
• Key Technical Data:
  • Thread Size: 5/8-18 UNF
  • Probe Resistance (1m): 5.9 ± 0.5 ohms
  • Cable Type: 75 Ω triaxial, FEP insulated
  • Operating Temperature: -51°C to +177°C
• Physical Construction:
  • Case Material: AISI 304 Stainless Steel
  • Tip Material: PPS (Polyphenylene sulfide)
  • Seal: Viton O-ring
  • Min. Bend Radius: 25.4 mm (1.0 inch)
• Installation Torque:
  • Recommended: 15.2 N•m (133 in•lb)
  • Maximum: 45.2 N•m (400 in•lb)

Shipping & Warranty

• Shipping Weight: 0.17 Kg
• Carriers: FedEx, UPS, DHL available
• Warranty: 12 months from purchase date

Frequently Asked Questions

Product Specific Questions

• What does “10” in the model number mean for cable length?

In the code 330707-00-20-10-01-00, the “10” means the cable is 1.0 meter long. “90” would mean 9 meters.

• Does this 1-meter probe come with a connector protector?

Yes. The “-01-” option includes a Miniature coaxial ClickLoc connector with a connector protector.

Installation & Use

• What is the maximum depth I can screw this probe into a hole?

The maximum thread engagement is 0.938 inches. Do not screw it in deeper than this.

• Can I use this probe in a very cold environment?

It can work down to -51°C. But, temperatures below -34°C may damage the seal over time. Use with care in extreme cold.

Buying & Support

• I need a different cable length. Can you provide it?

Yes. The 330707 model comes in 1m, 5m, and 9m lengths. Contact us to order the version you need. We offer fast shipping via FedEx, UPS, or DHL.
