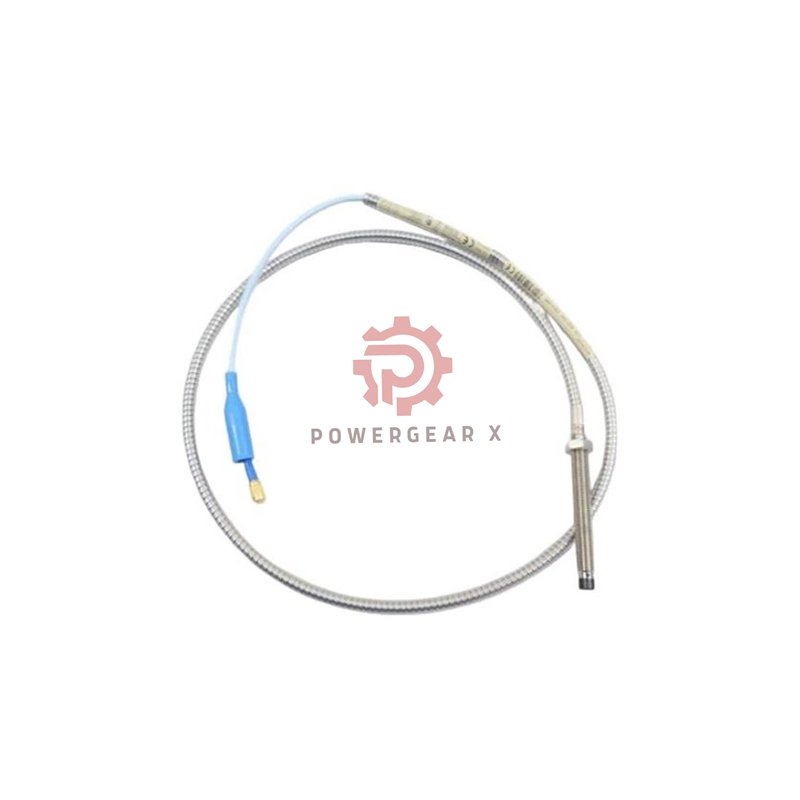

Bently Nevada Armored Probe with Extended Unthreaded Section
Specialized armored 3300 XL 8mm Proximity Probe for precise alignment. Model 330102-22-58-10-02-00 features a long 2.2-inch unthreaded section on a 5.8-inch armored case. Ideal for applications where straight guidance is critical before threading.
Configuration Breakdown
- 330102 – Base Model: Armored, 3/8-24 UNF
- 22 – Unthreaded Length: 2.2 inch (Significant smooth section)
- 58 – Overall Case: 5.8 inch (~147 mm)
- 10 – Cable: 1.0 meter (3.3 feet)
- 02 – Connector: Standard Mini ClickLoc
- 00 – Approvals: General Purpose Use
Core Specifications
- Brand: Bently Nevada
- Series: 3300 XL Monitoring
- Full Part Number: 330102-22-58-10-02-00
- Type: 8mm Armored Proximity Sensor
- Linear Range: 2.0 mm (80 mils)
- Setup Gap: 1.27 mm (50 mils)
- DC Resistance: 7.59 Ω ± 0.50
- Thread: 3/8-24 UNF Imperial
- Key Feature: Long 2.2″ unthreaded guide section.
- Total Length: 5.8 inches with armor.
Installation & Mounting
- Mounting Thread: 3/8-24 Unified Fine
- Max Thread Engagement: 0.563 inch
- Unthreaded Guide: 2.2 inches for alignment.
- Application: Ensures probe is straight before threading begins.
- Use: For general industrial, non-hazardous areas.
Approvals & Environmental
- Certification Code: 00 – No Hazardous Area Rating
- Suitability: Safe for use in standard industrial environments.
- Construction: Armored for mechanical durability.
- Sealing: Standard Viton O-ring pressure seal.
Package & Logistics
- One 3300 XL 8mm Proximity Probe (Armored, Long Unthreaded)
- Factory Data Sheet
- 12-Month Quality Warranty
- Fast Shipping: FedEx, UPS, or DHL
- Technical Support: Available for Application Questions
Frequently Asked Questions
What is the advantage of a 2.2-inch unthreaded section?
The long smooth section acts as a guide. It ensures the probe tip is perfectly perpendicular to the target before the threads start, leading to more accurate and repeatable gap setting.
Is this probe suitable for mounting in a threaded adapter or bushing?
Yes, but the adapter’s internal length must accommodate the 2.2-inch unthreaded section before its own threads start. Measure your adapter carefully.
Can the armored sleeve get damaged on the unthreaded part?
The armor is a continuous sleeve. The unthreaded section is still armored, offering the same protection as the threaded portion.
What is a common mistake when installing probes with long unthreaded sections?
Forcing the probe if it doesn’t slide in easily. The long guide requires the mounting hole to be straight. Ream or clean the hole if the probe binds.
How do I know if I need this specific configuration?
Choose the 330102-22-58-10-02-00 if your application requires: 1) Armored protection, 2) A 5.8-inch total reach, 3) Imperial 3/8-24 thread, and most importantly, 4) A long guiding section for precise alignment in a deep, smooth bore.
Need help determining if your mounting hole suits a long unthreaded probe? Contact us: sales@powergearx.com or +86 18030005825.
