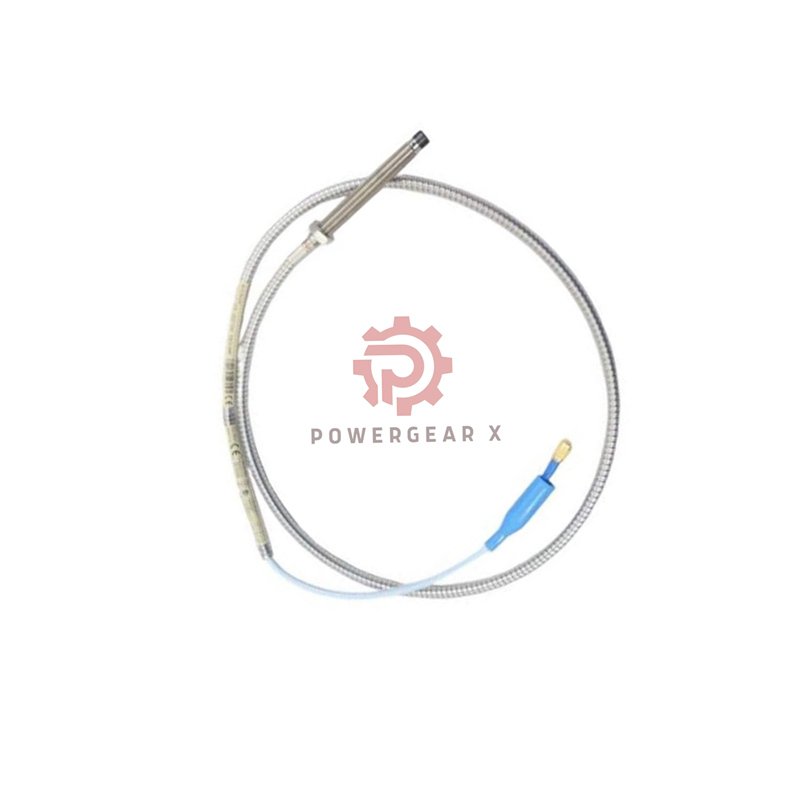

Bently Nevada 330102-03-25-10-02-05 | ATEX CSA IECEx Armored Vibration Probe

Certified Armored Sensor for Demanding Applications

Operate with confidence in regulated environments. This 3300 XL 8mm Proximity Probe combines physical armor with global safety approvals. It is built for vibration monitoring where both impact protection and compliance are critical. Ensure your machinery protection system meets international standards with this robust sensor from Bently Nevada.

Premium Model Configuration: 330102-03-25-10-02-05

This part number specifies a top-tier probe. Understand each selected feature:

• 330102 – Foundation: 3300 XL 8mm Probe, 3/8-24 UNF thread, with armor.
• 03 – Unthreaded Section: 0.3 inches (approx. 7.6 mm).
• 25 – Overall Case: 2.5 inches (approx. 63.5 mm) total length.
• 10 – Cable: 1.0 meter (3.3 feet) integral length.
• 02 – Connection: Standard ClickLoc connector.
• 05 – Certifications: CSA, ATEX, IECEx approved.

Core Technical & Certification Data

• Brand: Bently Nevada
• Complete Model: 330102-03-25-10-02-05
• Product Type: Armored & Certified 8mm Proximity Probe
• Thread Type: Imperial 3/8-24 UNF.
• Sensing Window: 0.25 mm to 2.3 mm linear range.
• Calibration Gap: 1.27 mm (50 mils) from target.
• Probe Resistance: 7.59 Ω (±0.50) for 1.0m cable.
• Key Feature: External metal armor for durability.
• Approvals: Carries CSA, ATEX, and IECEx markings.

Durability & Installation Specifications

• Armor Benefit: Protects against physical damage in harsh plants.
• Temperature Range: Standard operation from -52°C to +177°C.
• Seal Care: Viton O-ring. Do not expose below -34°C for long periods.
• Mounting: 3/8-24 UNF thread. Maximum engagement 0.563 inches.
• Compliance: Suitable for Zone 0/1/2 hazardous areas per certifications.

Package Contents & Customer Promise

• One (1) premium 3300 XL 8mm Probe, model 330102-03-25-10-02-05.
• Includes armored body, 1m cable, and ClickLoc connector.
• Warranty Protection: Backed by a 12-month manufacturer warranty.
• Fast Delivery: Shipped worldwide via FedEx, UPS, and DHL.

Expert FAQs for Certified & Armored Probes

About This Specific Build

• What is the purpose of the 0.3-inch unthreaded section on an armored probe?
• It allows the armored probe to pass through a mounting bracket or sleeve. The armor and the smooth section slide through before the UNF threads engage in the final tapped hole.
• Does the ‘-02’ connector work with the armored version?
• Yes. The ‘-02’ specifies a standard ClickLoc connector. The armor is on the probe body. The connector type is chosen separately based on your cable and protection needs.

Compliance & Application

• Can I use this CSA/ATEX probe in North America and Europe?
• Yes. The combined CSA (North America), ATEX (Europe), and IECEx (International) approvals make this probe acceptable for projects in most regions, simplifying global procurement.
• Is the armor electrically grounded?
• The metal armor is part of the probe’s mechanical case. It is not a separate electrical ground. Always follow the system grounding instructions for the proximitor and monitor.

Purchasing & Support

• What documentation comes with this certified probe?
• It includes the necessary compliance certificates (e.g., ATEX Certificate of Conformity) to validate the safety approvals for your project files and audits.
