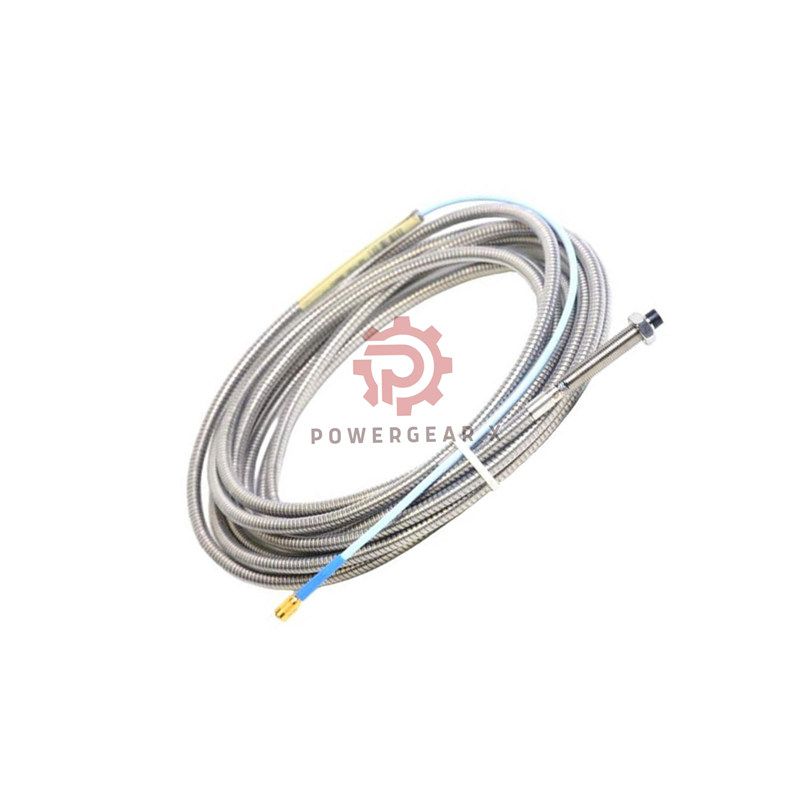

Name: Bently Nevada 330102-00-52-10-02-00 | 5.2-Inch Armored 3300 XL Vibration Probe
SKU: 330102-00-52-10-02-00
Availability: InStock

Bently Nevada 330102-00-52-10-02-00 | 5.2-Inch Armored 3300 XL Vibration Probe

Rated 0 out of 5

0 Reviews

65 in stock

This is the Bently Nevada 330102-00-10-10-01-05, an 8mm armored proximity probe. It has a 1-meter cable with ClickLoc connector, ATEX/IECEx approvals, and is designed for harsh industrial environments.

100% genuine products in stock with fast delivery.
30-day return policy for quality assurance.
12-month warranty for peace of mind.

Product details

Enhanced 5.2-Inch Armored Vibration Monitor

This durable 3300 XL 8mm Proximity Probe offers a precise 5.2-inch armored case. Model 330102-00-52-10-02-00 is designed for standard industrial environments where mechanical protection and reliable performance are paramount, without the need for hazardous area certifications.

Specification Decoder

Each segment of the model number defines a key feature of your probe:

Full Model Designation: 330102-00-52-10-02-00
- 330102 – Armored Probe with 3/8-24 UNF Thread
  00 – Unthreaded Length: 0.0 inches (Fully Threaded)
  52 – Case Length: 5.2 inches (132 mm)
  10 – Cable: 1.0 meter (3.3 ft)
  02 – Connector: Miniature Coaxial ClickLoc
  00 – Agency Approval: Not Required (Standard Industrial Use)

Core Performance & Build

Physical Design
- 5.2-Inch Armored Case: AISI 303/304 stainless steel with protective armor sleeve.
- Thread: Fully threaded 3/8-24 UNF body (max engagement 0.563 in).
- Probe Tip: Durable Polyphenylene Sulfide (PPS) material.
Electrical & Measurement
- Linear Range: 2.0 mm (0.25 to 2.3 mm from target).
- Gap Setting: Optimal at 1.27 mm for -9 Vdc output.
- Resistance: 7.59 Ω ± 0.50 Ω (for 1.0m cable).
- Field Wiring: Compatible with standard 3-conductor shielded cable.
Environmental Specifications
- Temperature Range: -52°C to +177°C (operating and storage).
- Sealing: Viton® O-ring for environmental protection.
- Humidity: Stable performance (<3% change) in 93% relative humidity.

Technical Q&A for This Model

Configuration & Application

What’s the practical difference between 5.0-inch and 5.2-inch case lengths?
The 5.2-inch (132mm) case provides an extra 0.2 inches (5mm) of reach. This small difference can be crucial when mounting adapters or specific machine geometries require that exact additional length for proper sensor positioning.
This model has “00” for agency approval. Where is it appropriate to use?
This probe is designed for standard industrial areas without classified hazardous atmospheres. It’s ideal for general manufacturing plants, power generation facilities (non-hazardous areas), and water treatment plants.

Installation & Compatibility

Does the armor affect how I should mount the probe?
No, the armored section is over the cable. Mounting the threaded case into your machinery is the same as a non-armored probe. Just ensure the armored cable has proper strain relief and routing.
Can I use this probe with my existing 3300 monitoring system?
Yes, it is fully compatible with Bently Nevada 3300 XL Proximitor sensors and monitors. The standard 1.0m cable and ClickLoc connector ensure direct integration.

Ordering & Logistics

What support do you offer for selecting the right probe length?
Our technical team can help you verify dimensions. Contact us with your machine’s mounting depth and any adapter specifications. We ensure you get the correct probe for a perfect fit and reliable operation.

Order with Confidence

Package Includes:
- One genuine Bently Nevada 3300 XL 8mm Probe (Model 330102-00-52-10-02-00).
- All standard factory documentation.
