Bently Nevada 330101-00-17-10-02-CN Short Probe | 8mm Vibration Sensor for Tight Spaces

Short, Fully Threaded Probe for Compact Mounting

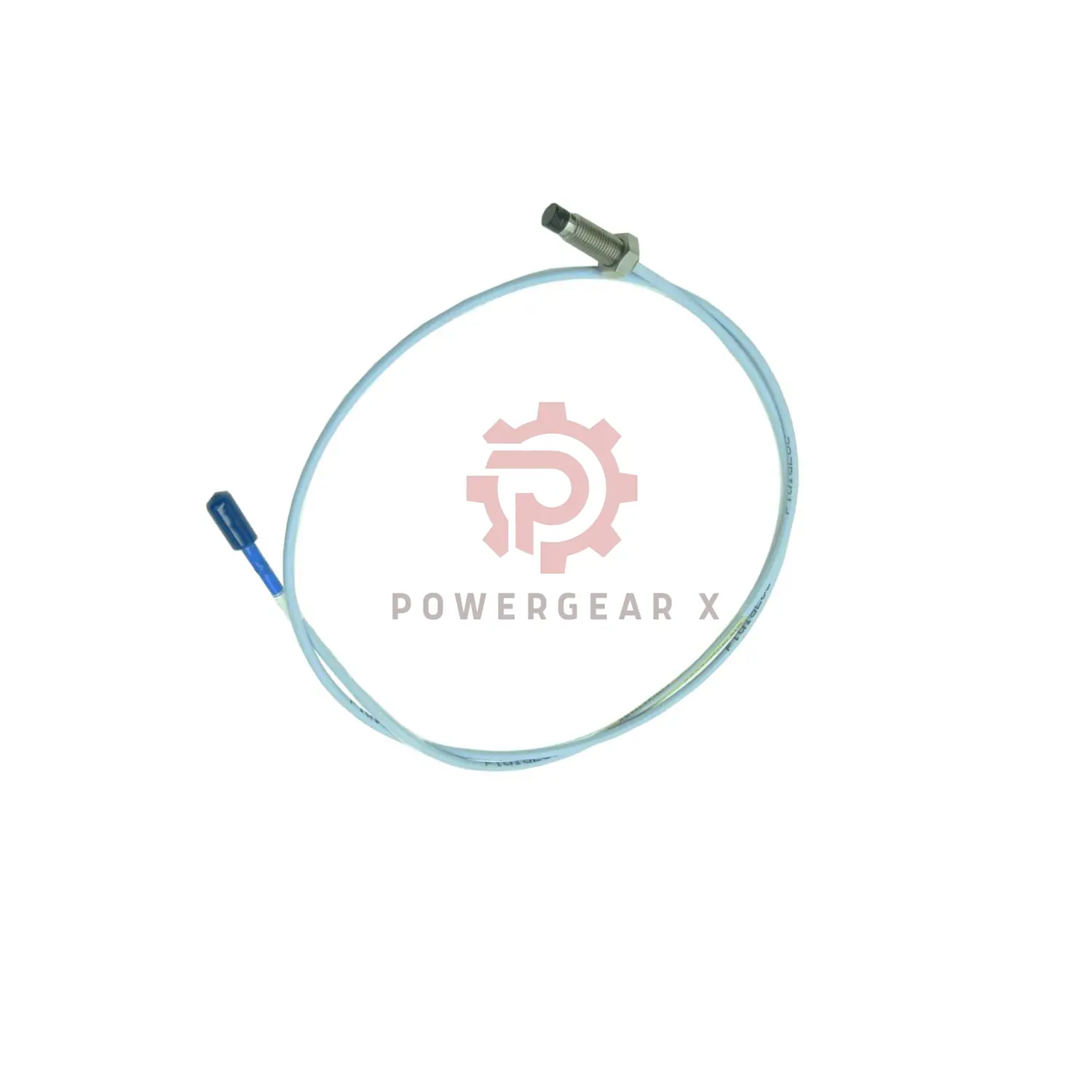

This Bently Nevada 3300 XL 8mm Probe is the solution for tight spaces. Model 330101-00-17-10-02-CN features a compact, fully threaded 1.7-inch case. It is configured for country-specific agency approvals upon request. This robust 8mm sensor delivers reliable vibration monitoring where mounting depth is limited. Ideal for motors, pumps, and other machinery with space constraints.

Part Number Configuration Breakdown

Every suffix in 330101-00-17-10-02-CN defines its build.

• 330101 – Base Model
  • 3300 XL 8mm, 3/8-24 UNF, No Armor
• -00 – Unthreaded Length
  • Value: 0.0 inch (Completely Threaded)
• -17 – Overall Case Length
  • Value: 1.7 inches Total
• -10 – Cable Length
  • Value: 1.0 meter (3.3 ft)
• -02 – Connector Type
  • Miniature Coaxial ClickLoc
• -CN – Agency Approval
  • Code: Country Specific (Confirm requirements)

Key Technical Specifications

• Brand & Series: Bently Nevada 3300 XL
• Probe Type: 8mm Diameter Proximity Sensor
• Case Design: Fully Threaded, 1.7-inch Short Body
• Linear Range: 2.0 mm (80 mils)
• Scale Factor: 7.87 V/mm (200 mV/mil) ±5%
• Linearity Error: Less than ±0.025 mm (±1 mil)
• Standard Gap: 1.27 mm (50 mils) / -9 Vdc
• Electrical Resistance: 7.59 Ω ± 0.50 Ω
• Operating Temperature: -52°C to +177°C
• Approvals: Configurable for specific country standards.
• Construction: Stainless Steel Case, PPS Tip, Viton Seal.

Simple Installation Guide

• The entire 1.7-inch case is threaded (3/8-24 UNF).
• Screw directly into a tapped hole or mounting bushing.
• Engage a maximum of 0.563 inches of threads.
• Use a torque wrench: 11.2 N•m (100 in•lbf) max.
• Set the gap to achieve the required -9 Vdc output.

Product Features & Benefits

• Space-Saving Design: Short 1.7-inch length fits in confined areas.
• Secure Mounting: Fully threaded body ensures a rigid, vibration-resistant fit.
• Approval Flexibility: “CN” suffix allows for custom certification sourcing.
• Rugged 8mm Build: Withstands physical knocks and harsh environments.
• Immediate Compatibility: Ready for Bently Nevada 3300 XL monitoring systems.

Ordering & Support Info

• Package Contents: One short-body 8mm vibration probe.
• Quality Assurance: Protected by a 12-month limited warranty.
• Shipping Methods: We ship internationally via FedEx, UPS, and DHL.
• Need Configuration Help? Our team can clarify approval options.
  Email Support: sales@powergearx.com
  Quick Chat on WhatsApp: +86 18030005825

Professional FAQ: Short & Certified Probes

What does “Country Specific (CN)” approval mean?

The suffix -CN indicates the probe can be supplied with certifications for specific countries (e.g., INMETRO for Brazil, NEPSI for China). You must specify the required standard when ordering.

When should I choose a short, fully threaded probe?

Choose this style when mounting space is very limited. It is perfect for direct installation into thin machine housings or compact brackets without needing an unthreaded shoulder.

Is the 1.7-inch length the total installed length?

Yes. The 1.7-inch dimension (suffix -17) is the total length from the tip to the cable exit. The entire length is available for threading into your mounting point.

Can I order this probe with a standard approval like ATEX?

Yes, but you would order a different model suffix. For standard ATEX, you would need a probe with suffix -05 instead of -CN.

Does the short length affect the cable strain relief?

No. The patented CableLoc design still provides 75 lbf pull strength. Ensure the cable is properly clamped and supported in your cable tray for best practice.
