Bently Nevada 330101-00-12-10-11-00 3300 XL 8 mm Probe | 200mV/mil Sensor

Product Introduction

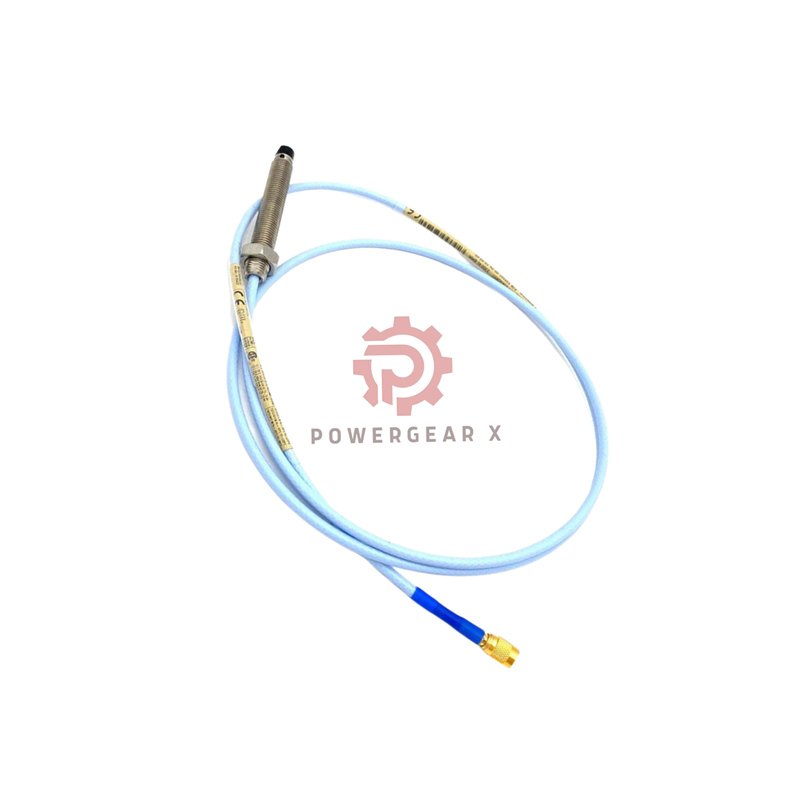

Bently Nevada 330101-00-12-10-11-00 belongs to the trusted 3300 XL 8 mm proximity probe series.
It measures shaft vibration and position in rotating machines.
The probe uses eddy current sensing technology.
It gives stable signals for machine protection systems.

• Manufactured in the United States.
• Designed for turbine and compressor monitoring.
• Compact probe with strong stainless case.
• Stable output for industrial vibration monitoring.
• Reliable long-term Bently Nevada vibration probe solution.

This probe works with 3300 XL monitoring systems.
It supports predictive maintenance programs.
It helps engineers detect early machine faults.

Need full specifications and wiring details?
Download the product manual before installation.
This helps ensure correct setup and best performance.

Configuration Breakdown

• 330101
  • 3300 XL 8 mm probe
  • Thread type: 3/8-24 UNF
  • Non-armored cable design
• 00
  • Unthreaded length: 0.0 inch
• 12
  • Overall case length: 1.2 inch
• 10
  • Total cable length: 1.0 meter
• 11
  • Miniature coaxial ClickLoc connector
  • Includes connector protector
  • FluidLoc cable prevents oil leakage
• 00
  • No special agency approvals required

Engineering Highlights

• TipLoc molded probe tip creates a strong bond with the probe body.
• CableLoc cable design improves cable pull strength.
• Pull resistance reaches 330 N.
• FluidLoc cable blocks oil leakage through cable core.
• 8 mm probe body provides better durability.
• Thicker PPS tip protects the sensing coil.

These improvements increase sensor life.
They also reduce maintenance downtime.

Key Technical Data

• Brand: Bently Nevada
• Model: 330101-00-12-10-11-00
• Series: 3300 XL proximity probe
• Probe Diameter: 8 mm
• Measurement Range: 0.25 mm to 2.3 mm
• Linear Range: 2 mm
• Recommended Gap: −9 Vdc
• Sensitivity: 7.87 V/mm (200 mV/mil)
• Linearity Error: ±0.025 mm typical
• Probe Resistance: 7.59 Ω ±0.50
• Extension Cable Capacitance: 69.9 pF/m
• Thread Type: 3/8-24 UNF
• Max Thread Engagement: 0.563 inch
• Probe Case Material: AISI 303 / 304 stainless steel
• Probe Tip Material: PPS polymer
• Operating Temperature: −52°C to +177°C
• Extended Tip Temperature: up to +218°C
• Cable Temperature Limit: up to +260°C
• Humidity Resistance: 93% RH for 56 days
• Probe Weight: 323 g per meter
• Recommended Wiring: shielded triad cable
• Max Field Distance: 305 meters

Installation Torque Guidance

• Maximum torque: 33.9 N·m
• Recommended torque: 11.2 N·m
• First thread installation torque: 7.5 N·m recommended
• Do not exceed rated torque to avoid thread damage

Typical Equipment Applications

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Industrial pumps
• Large electric motors
• Gearbox monitoring systems

The probe measures shaft vibration and displacement.
It supports machine health diagnostics.
It also detects imbalance and shaft misalignment.

Expert Review

Maintenance engineers prefer the 3300 XL 8 mm probe for harsh plants.
The thicker probe tip protects the sensing coil.
CableLoc design reduces cable failures.
FluidLoc cable stops oil leakage from machines.
This improves safety and plant cleanliness.
The sensor performs well in turbines and compressors.
It provides stable data for predictive maintenance systems.

Model Selection Advice

• For armored cable applications

  330102-04-78-05-02-05 probe model

• For compact installation environments

  330103-00-08-10-02-05 vibration probe


Choose the model based on cable protection, mounting space, and machine type.

FAQ

• How do I select the correct probe length?
  Measure the machine housing thickness.
  Choose a probe length that allows correct gap adjustment.
• What is the benefit of FluidLoc cable?
  FluidLoc blocks oil migration inside the cable.
  It protects the monitoring cabinet from contamination.
• How often should vibration probes be inspected?
  Check sensors during planned shutdown.
  Most plants inspect them once per year.
• What shipping options are available?
  Orders ship within 24–48 hours.
  Delivery options include FedEx, UPS, and DHL.
• What warranty coverage is included?
  All sensors include a 12-month warranty after delivery.

Contact and Ordering

Technical questions or quotation requests are welcome.

Email:
sales@powergearx.com

WhatsApp / Phone:
+86 18030005825

Original Source:
https://www.powergearx.com/

Copyright © 2026 Powergear X Automation Limited. All rights reserved.

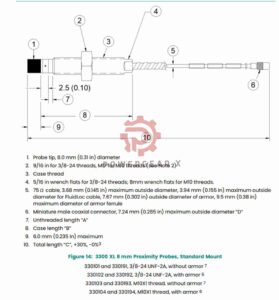

3300 XL 8 mm Proximity Probes
