Overview

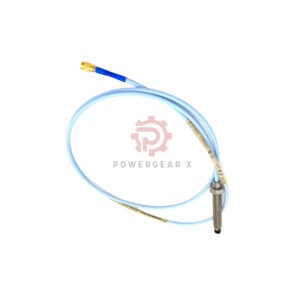

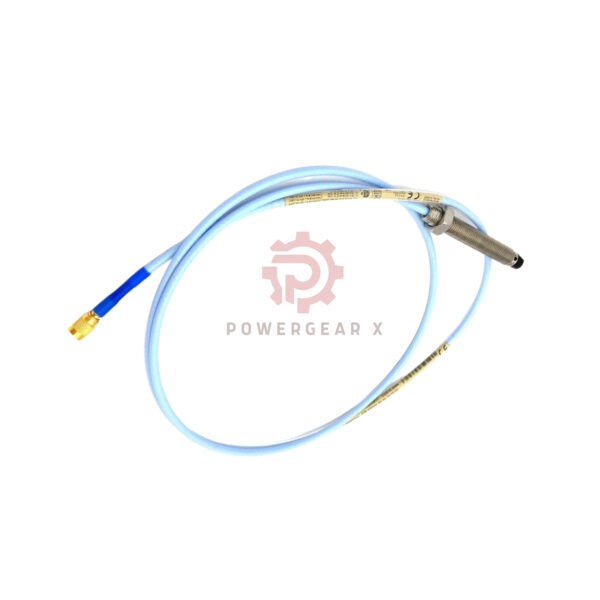

The 330104-00-06-10-02-00 is a 3300 XL 8 mm Proximity Probe manufactured by Bently Nevada in the U.S.A. It has an M10 x 1 threaded design with armor, enabling it to seal differential pressure between the probe tip and case using a Viton® O – ring. This probe is intended for use with a 3300 – series Proximitor Sensor and extension cable under specific environmental and power – supply conditions.
Technical Specification
- Brand: Bently Nevada
- Model: 330104-00-06-10-02-00
- Product Type: 3300 XL 8 mm Proximity Probes
Probe Dimensions
| Parameter | Value |
|---|---|
| Unthreaded Length | 00 mm |
| Overall Case Length | 06 mm |
| Total Length | 1.0 meter (3.3 feet) |
Connector and Approval
| Parameter | Details |
|---|---|
| Connector and Cable – Type | Miniature coaxial ClickLoc connector, standard cable |
| Agency Approval | Not required (00) |
Electrical
| Parameter | Specification |
|---|---|
| Nominal Probe DC Resistance (1.0 m) | 7.59 ± 0.50 Ω |
| Proximitor Sensor Input | Accepts 3300 – series 5 mm or 3300 XL 8 mm Proximity Probe and Extension Cable |
| Power Supply (Non – incendive) | -17.5 Vdc to -26 Vdc, max 12 mA |
| Power Supply (With barriers) | -23 Vdc to -26 Vdc |
| Sensitivity | < 2 mV change in output voltage per volt change in input voltage |
| Output Resistance | 50 Ω |
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
