Bently Nevada 3300 XL 8mm Probe | Shop 330103-04-13-10-02-00

Essential 8mm Vibration Probe for Machinery Health

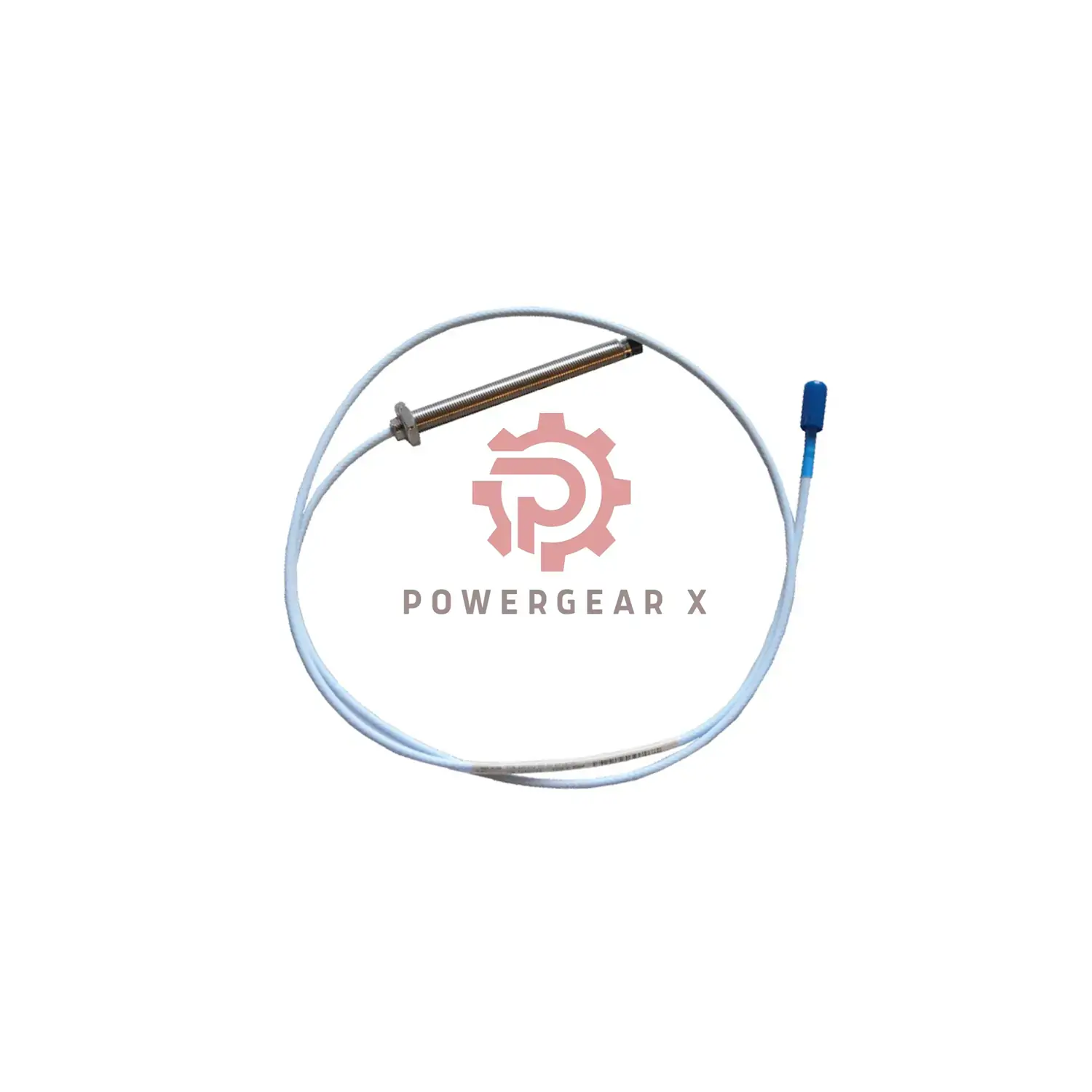

This Bently Nevada 330103-04-13-10-02-00 proximity probe is a reliable sensor. It monitors rotating equipment vibration in standard environments. Get accurate data for predictive maintenance.

Model Number Explained

• Base Product: 330103
  • 3300 XL 8mm Diameter Probe
  • M10 x 1 Thread
  • No Protective Armor
• Configuration Options
  • 04: Unthreaded Shaft Length = 40 mm
  • 13: Overall Case Length = 130 mm
  • 10: Cable Length = 1.0 meter (3.3 feet)
  • 02: Connector = ClickLoc (Standard Cable)
  • 00: Certifications = Standard / None

Key Technical Data

• Measurement Performance
  • Usable Range: 0.25 mm to 2.3 mm from target.
  • Best Gap Setting: 1.27 mm (for -9 Vdc output).
  • Probe Resistance: 7.59 Ω (for 1.0m cable, ±0.50 Ω).
• Physical & Environmental
  • Case: Strong 303/304 Stainless Steel.
  • Tip: Wear-resistant PPS plastic.
  • Seal: Viton® O-ring (standard duty).
  • Temperature: Works from -52°C to +177°C.
  • Keep Warm: Do not use below -34°C.
• Installation Notes
  • Thread: M10x1. Do not screw in more than 15 mm.
  • Wiring: Use shielded cable. Max run is 305 meters to monitor.

FAQs: Installation & Selection

About This Specific Configuration

• Q: The “13” case length is shorter. Where is this best used?
• A: The 130mm overall length is ideal for tight spaces. It fits where longer probes cannot go. Common on smaller motors or pumps.
• Q: Does the “04” unthreaded section affect the seal?
• A: No. The seal is at the probe tip. The 40mm smooth section just gives you more mounting flexibility.

Compatibility & Use

• Q: Can I connect this directly to any monitor?
• A: No. This probe needs a Bently Nevada 3300 XL Proximitor power supply. The proximitor connects to your monitor.
• Q: What target material works best?
• A: Use a clean, smooth steel surface. Avoid aluminum or coated surfaces. The target area should be larger than the probe tip.

Ordering & Support

• Q: What if I need a different cable length?
• A: We stock other lengths. Contact us for the 330103 model with suffix -05 (0.5m) or -20 (2.0m).

Purchase with Confidence

• Stock Ready: This 330103-04-13-10-02-00 ships fast.
• Global Delivery: We use FedEx, UPS, or DHL.
• Full Warranty: Your purchase is protected for 12 months.
