Short-Case Vibration Monitoring Solution

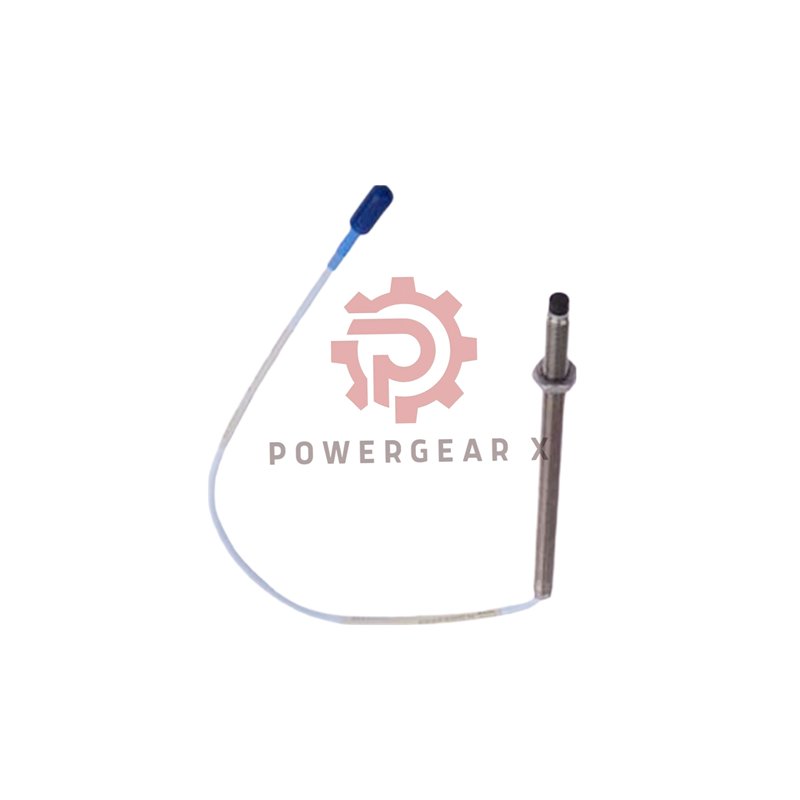

Introducing the Bently Nevada 330903-00-06-05-02-CN. This is a short-body 3300 NSv proximity probe. It features a compact 60mm case with M8 threading. It is designed for space-constrained industrial vibration monitoring. New, original, and backed by a full warranty.
Product At A Glance
- Manufacturer: Bently Nevada
- Product Line: 3300 NSv Proximity Probes
- Full Item Code: 330903-00-06-05-02-CN
- Status: Brand New, Sealed Factory Pack
- Coverage: 12-Month Manufacturer Warranty
- Shipping: FedEx, UPS, DHL Available
Part Number Decoder
- Base Code (330903): NSv Probe, M8x1 Thread, No Armor
- Segment 1 (00): 0 mm Unthreaded Section
- Segment 2 (06): 60 mm Total Case Length
- Segment 3 (05): 0.5 Meter Integrated Cable
- Segment 4 (02): ClickLoc Connector, Standard Cable
- Segment 5 (CN): Country-Specific Compliance
Detailed Performance Specifications
- Core Electrical Metrics
- Internal Resistance: 4.0 Ohms ± 0.5 Ohms (for 0.5m length)
- Usable Measurement Span: 1.5 mm (60 mils)
- Optimal Installation Gap: Set at 1.0 mm (40 mils)
- Voltage Sensitivity: 7.87 Volts per mm (200 mV/mil)
- Signal Flatness (0-10 kHz): Within -3 dB over long cable runs.
- Output Span (Linear Range): -1 Vdc to -13 Vdc.
- Physical & Installation Data
- Mounting Thread: Metric M8 x 1.0 mm
- Max Insertion Depth: Engage up to 12 mm of thread.
- Case Build: AISI 304 Stainless Steel Body
- Tip Build: Durable PPS (Polyphenylene Sulfide)
- Installation Force: Hand-tighten only. Max 0.56 N•m (5 in-lb).
- Cable Bend Limit: Do not bend tighter than 25.4 mm radius.
- Reliability & Use Conditions
- Temperature Limit: Operates from -52°C to +177°C.
- Internal Seal: Viton O-ring contains differential pressure.
- Target Requirement: Minimum 8.9 mm diameter flat surface.
- Cable Specs: 75-ohm coaxial with FEP insulation.
- System Wiring: Supports up to 305m of field cable to monitor.
Expert Support & Logistics
Your order includes our 12-month quality guarantee. We dispatch worldwide using reliable couriers: FedEx, UPS, and DHL. Need technical advice? Our engineering support team is ready to assist.
Common Technical Questions
How does the short 60mm case help in real installations?
It solves clearance problems. In cramped gearboxes or between bearing housings, a standard probe might not fit. This short model allows installation where others cannot.
Is the “CN” approval suitable for use in Europe or North America?
“CN” means the approvals are configured for a specific country’s market. You must verify the exact certifications (like ATEX or CSA) for your region before purchase and use.
What is the main benefit of improved chemical resistance?
It extends service life in dirty environments. The probe tip won’t swell or crack when exposed to synthetic lubricants or process chemicals. This means more reliable readings and fewer replacements.
Can I use this on a very small shaft, under 8.9mm?
It is not recommended. The measurement scale factor will be incorrect. For small shafts, you must reduce the gap significantly and expect calibration changes. Always prefer a larger target.
What’s the best practice for storing spare probes?
Keep them in their original package. Store in a dry, room-temperature place. Protect the connector with its cap. Avoid bending the cable sharply. Check resistance with a meter before use after long storage.
