Premium Proximity Probe for Industrial Machinery Monitoring

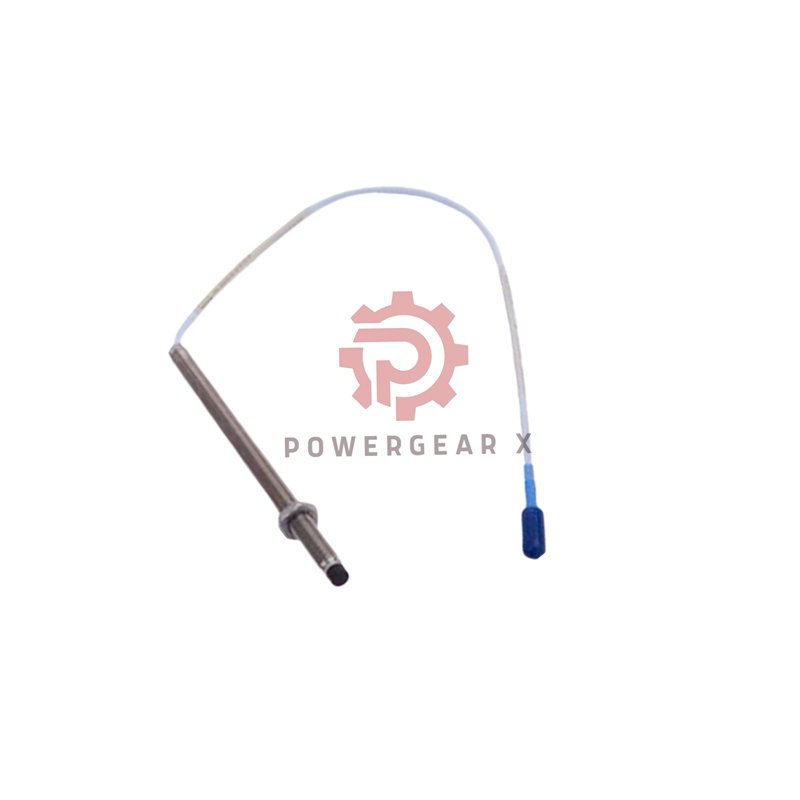

Ensure precise vibration and position measurements with this Bently Nevada 3300 NSv proximity probe. Part number 330903-05-19-05-02-00 delivers reliable performance in demanding environments. Its enhanced design offers superior chemical resistance and stable output for critical rotating equipment protection.
Key Advantages
- Advanced Chemical Resistance – Outperforms older 3300 RAM probes in harsh process environments
- Superior Measurement Accuracy – Excellent side-view characteristics reduce interference
- Wide Operating Range – Functions from -52°C to +177°C (-62°F to +351°F)
- Easy Installation – Direct replacement for existing 3300 system components
- Durable Construction – Stainless steel case with PPS tip for long service life
Technical Specifications
- Manufacturer: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Part Number: 330903-05-19-05-02-00
- Thread Specification: M8 x 1 mm
- Unthreaded Length: 50 mm
- Overall Length: 190 mm
- Cable Length: 0.5 meter (20 inches)
- Connector Type: Miniature Coaxial ClickLoc
- Electrical Resistance: 4.0 Ω ± 0.5 Ω
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linearity: ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz
- Target Size: Minimum 8.9 mm diameter
- Maximum Wiring: 305 meters (1000 feet)
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Mounting Torque: 5.1 N•m (45 in-lb)
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Temperature Range: -52°C to +177°C
Installation & Compatibility
This probe features standard M8x1 mounting threads for easy installation. It is fully compatible with Bently Nevada’s 3300 monitoring systems and directly replaces 3300 RAM probes. For optimal performance, set the initial gap to 1.0 mm (40 mils) and use recommended field wiring.
Typical Applications
- Centrifugal and axial compressor vibration monitoring
- Turbine thrust position measurement
- Industrial pump and motor protection
- Keyphasor and speed reference applications
- Process industry rotating equipment
Frequently Asked Questions
How does the NSv probe improve upon the older RAM version?
The 3300 NSv probe offers enhanced chemical resistance in its construction, providing better reliability in process environments with oil and chemical exposure common in compressor applications.
Is this probe compatible with my existing 3300 system?
Yes, the 330903-05-19-05-02-00 is mechanically and electrically interchangeable with previous 3300 RAM probes and extension cables, making it a direct upgrade.
What maintenance does this probe require?
These probes are maintenance-free once properly installed. Regular system calibration checks are recommended, but the probe itself requires no routine maintenance.
What warranty and support do you provide?
All probes come with a 12-month manufacturer warranty. We offer technical support for installation and application questions, with global shipping via FedEx, UPS, and DHL.
What’s the most common installation error to avoid?
Insufficient target surface preparation. Always clean and polish the shaft area where the probe will measure to ensure accurate readings and proper calibration.
How do I select the right probe for my application?
Consider your mounting requirements (M8x1 thread), needed cable length, and environmental conditions. This 330903-05-19-05-02-00 model suits most standard applications with its 0.5m cable and ClickLoc connector.
Ordering Information
This product ships in original factory packaging with complete documentation. For volume pricing, custom configurations, or technical consultation, contact our sales team.
