Product details

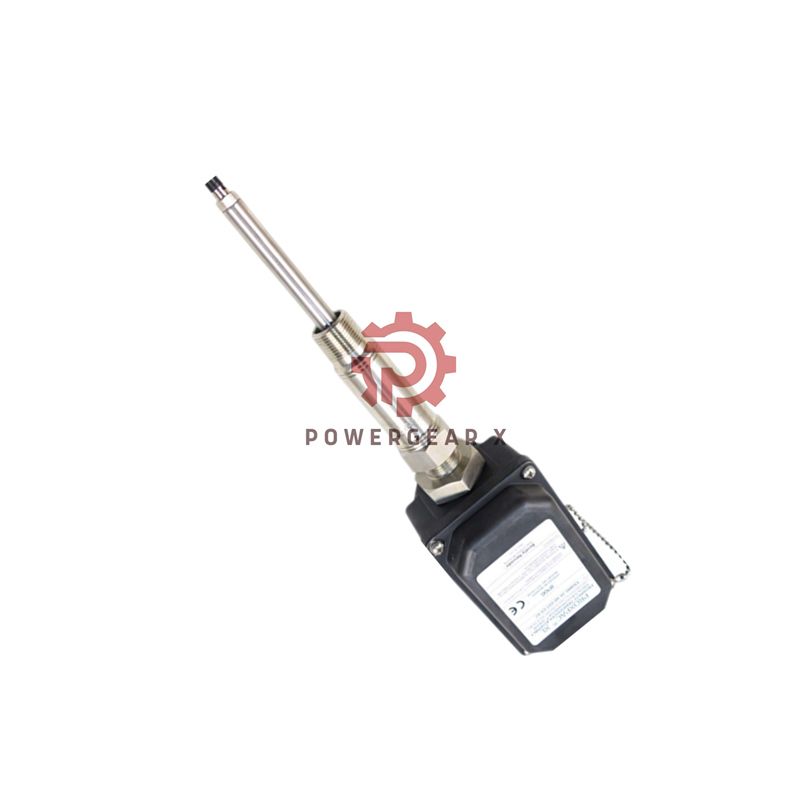

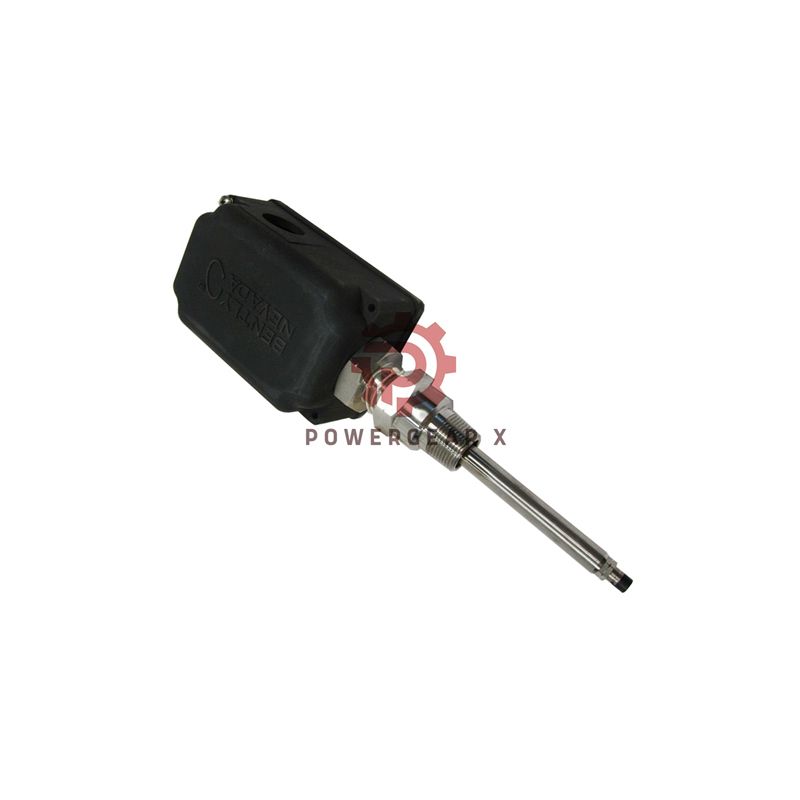

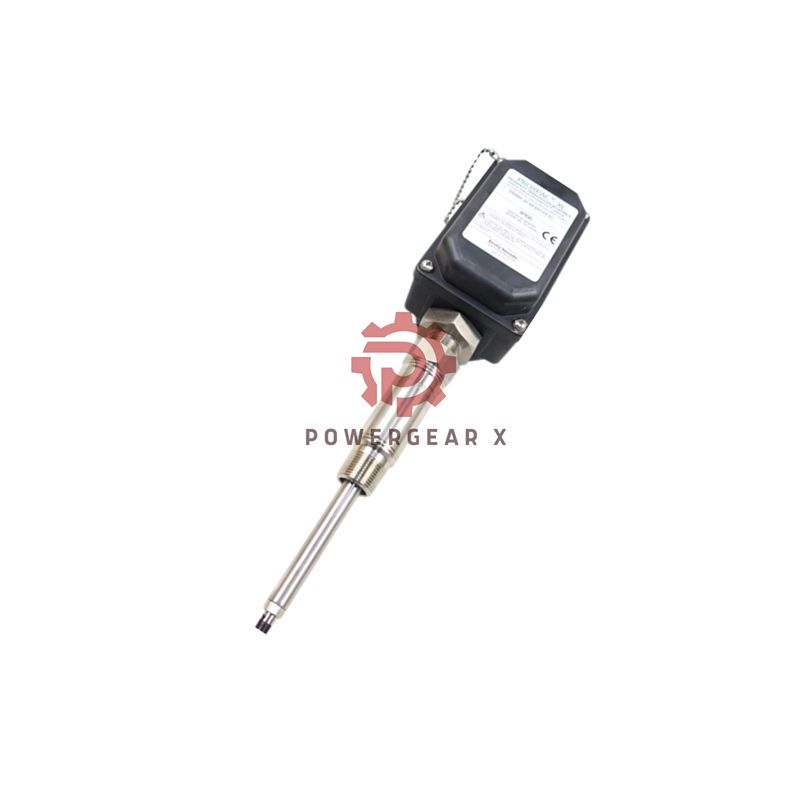

Specialized Housing for NSv Probes with Long Reach
This Bently Nevada housing is designed for the 3300 XL NSv probe. It provides 10 inches of probe penetration. A short 0.5-meter cable allows for neat installations. The housing offers robust protection in tough environments. Its conductive design is safe for hazardous areas. Perfect for precise vibration monitoring needs.
Complete Product Specifications
- Brand & Model: Bently Nevada 31000-26-05-00-100-03-02
- Product Family: 31000 Series Proximity Probe Housings
- Included Probe Type: 3300 XL NSv Series (8mm Diameter)
- Attached Cable Length: 0.5 Meters (20 Inches)
- Probe Reach (Penetration): 10.0 Inches (254 mm)
- Primary Mounting: 3/4-14 NPT Threaded Connection
- Environmental Protection: IP66 / NEMA 4X (Water and Dust Proof)
- Hazardous Area Compliance: CENELEC EN50014 (Electrostatic Discharge Safe)
- Main Body Material: Static-Dissipative, Glass-Reinforced PPS Plastic
- Metal Components: AISI 304 & 303 Stainless Steel (Rust Resistant)
- Sealing Elements: Internal Viton O-Ring, External Neoprene O-Ring
- Operational Temp Range: -51°C to +105°C (-60°F to 221°F)
- Durability Certification: BASEEFA Impact Tested (4 Joule at -39°C & 115°C)
- Mechanical Strength: Withstands >900 Newtons of Force
- Recommended Installation Torque: 29.4 Newton-meters (260 Inch-pounds)
- Unit Shipping Weight: ~1.2 Kilograms (2.6 Pounds)
Everything Included in Your Order
- One 31000-26-05-00-100-03-02 housing assembly
- One pre-installed 3300 XL NSv proximity probe
- Probe cable (0.5m length) with connector
- Standard 3/4-14 NPT mounting fitting
- Two sealing plugs and one stainless steel thread reducer (3/4″ to 1/2″)
- One universal cable seal grip with three grommet sizes
- All necessary O-rings, screws, and the retaining chain
Typical Professional Applications
- Vibration monitoring on critical NSv-compatible machinery
- Installations requiring a 10-inch deep sensor placement
- Environments with potential for explosive atmospheres (with proper system approval)
- Where a shorter sensor cable is preferred for cabinet management
Expert Insights & Guidance
What is a 3300 XL NSv probe?
The “NSv” designates a specific probe variant. It meets particular performance or certification standards. Always verify system compatibility before purchase.
Why choose a 0.5-meter cable instead of a longer one?
A shorter cable reduces clutter in control panels. It is ideal when the monitoring system is located very close to the measurement point.
Can I use this housing in an outdoor, coastal environment?
Yes. The stainless steel components and sealed design offer good resistance to salty, wet conditions. The IP66 rating protects against heavy rain.
What is the main purpose of the included thread reducer?
It provides installation flexibility. If your existing conduit or mounting point has a 1/2-14 NPT thread, you can use the reducer to adapt the housing’s 3/4-inch port.
Is the probe pre-calibrated? How do I set it up?
The probe is factory-characterized. Final calibration and gap voltage setting must be done on your specific machine with the appropriate monitoring system.
Simple Ordering & Guarantee
We back this product with a full 12-month warranty. Fast, reliable global shipping is available through FedEx, UPS, and DHL.
Questions on compatibility or need a quote?
Our team is here to help:
Email: sales@powergearx.com
Phone/WhatsApp: +86 18030005825
