Product details
Customizable Housing for Special Installations

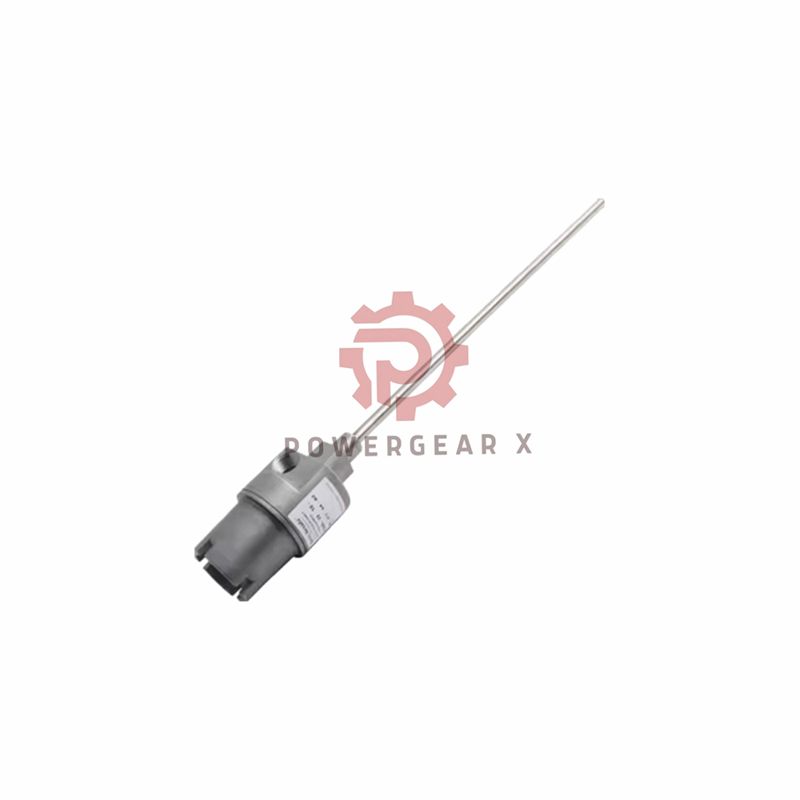

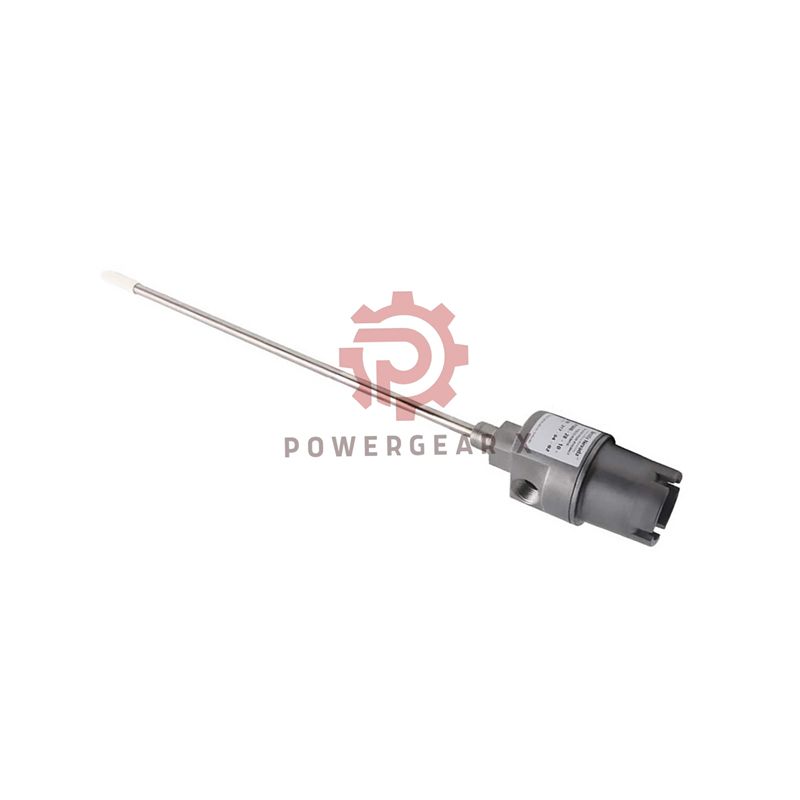

This Bently Nevada 24701 assembly is for custom applications. The main port is “as cast” without pre-cut threads. This allows you to machine precise threads on-site. The unit is new, original, and factory sealed. It comes with a standard 9-inch penetration. Your order is protected by a full 12-month factory warranty.
Part Number Configuration Guide
- Product Series: 24701 Proximity Probe Housing
- Full Item Code: 24701-28-10-00-090-00-01
- 28: Includes a 3300 XL 8mm Probe with connector.
- 10: 1.0 meter (39 inch) long probe cable.
- 00: No standoff adapter included.
- 090: Standard 9-inch probe penetration.
- 00: Supplied without conduit fittings.
- 01: Mounting port is as cast, without threads.
Technical Data & Package Contents
- Construction: High-grade 303 & 304 stainless steel.
- Cable Length: Full 1.0 meter for connection flexibility.
- Max Dimension: 29.2 inches (74.2 cm) total length.
- Mounting Note: Port requires final threading to your specification.
- Kit Includes: Housing body, dome, 3300 XL 8mm proximity probe, sleeve, O-rings, and thread seal.
Worldwide Express Shipping
We ship quickly via FedEx, UPS, and DHL. Need advice on threading specifications? Our technical sales team is ready to assist.
- Email for quotes: sales@powergearx.com
- WhatsApp consultation: +86 18030005825
Expert FAQ & Application Notes
What does “as cast without threads” mean for installation?
The housing’s mounting port has no threads. You must machine it to your required thread standard (e.g., metric, NPT). This allows for a perfect fit in custom designs.
Who should order this 01 threading option?
Order this 24701-01 model if your plant uses non-standard threads. It is ideal for OEMs or sites with specific machining capabilities for a custom fit.
Can I add fittings to this model later?
Yes. After you machine the port, you can add standard fittings. This model ships without fittings (00 option) to keep it adaptable.
Is the 12-month warranty still valid if we machine the threads?
Yes. The warranty covers the original materials and probe. Proper on-site machining does not void the warranty on the supplied components.
What is the main benefit of this configuration?
It offers maximum flexibility. You get a genuine Bently Nevada 24701 core assembly. You can then customize the mounting thread for your unique application needs.
