Product Introduction

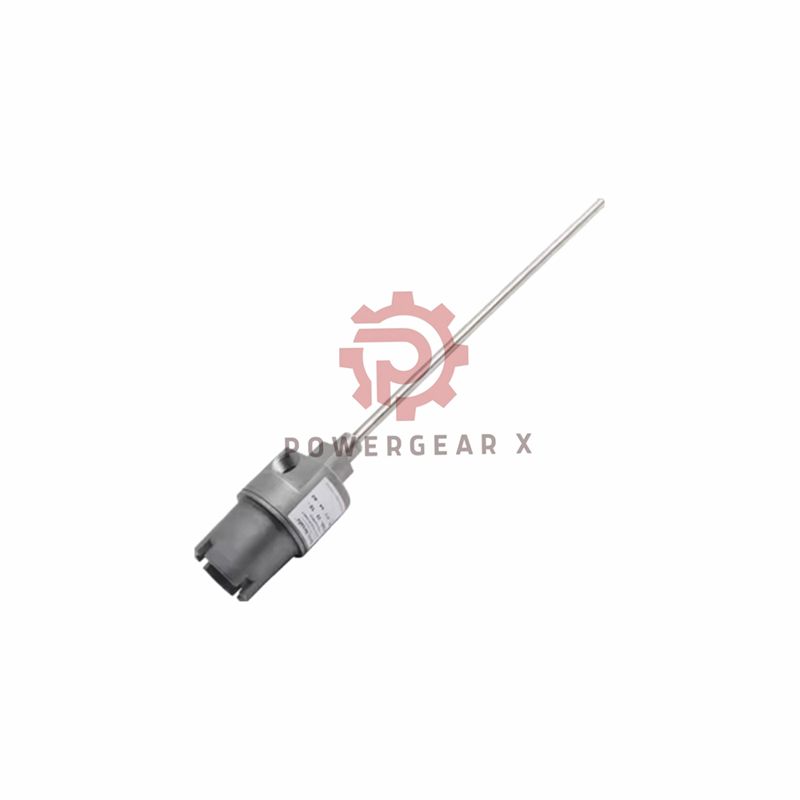

This is a new and original Proximity Probe Housing Assembly from Bently Nevada. It comes in factory packaging. The unit has a full 12-month manufacturer warranty. It is ready for reliable machinery protection and condition monitoring.
Technical Specifications
- Brand: Bently Nevada
- Core Model: 24701 – Proximity Probe Housing Assemblies
- Complete Part Number: 24701-28-05-00-110-00-02
- 28: 3300 XL 8mm Probe with Connector
- 05: Cable Length 20 in (0.5 m)
- 00: No Standoff Adapter
- 110: Probe Penetration 11 in
- 00: Without Fittings
- 02: Mounting Thread 3/4-14 NPT
- Key Technical Data:
- Body Material: 303 Stainless Steel
- Sleeve Material: 304 Stainless Steel
- Max (C)+(D) Dimension: 13.5 in (34.3 cm)
- Weight (typical): 1.8 kg (4.1 lb)
- Probe Visibility: Part and serial numbers not visible when installed
- Operating Temperature Range: Standard industrial rating.
- Environmental Robustness: Designed for harsh plant conditions.
- Electrical Compatibility: Works with Bently Nevada 3300 XL monitoring systems.
Package Contents & Assembly Details
- One complete Proximity Probe Housing Assembly.
- Includes dome cover, threaded body, probe sleeve, and O-rings.
- Contains a reverse-mount proximity probe and thread seal.
- Conduit ports are standard. Conduit fittings are optional.
- Factory warranty certificate included.
Installation & Compatibility
Installation is straightforward. Use the 3/4-14 NPT mounting thread. Ensure proper clearance per the maximum dimension. This assembly integrates directly with Bently Nevada 3300 XL series monitors. It provides accurate vibration and position data.
Typical Applications & Diagnostic Capability
- Critical rotor vibration monitoring in turbines and compressors.
- Shaft position and eccentricity measurement.
- Asset protection and predictive maintenance programs.
- Provides precise gap voltage data for early fault detection.
Frequently Asked Questions (FAQ)
General & Experience-Based Questions
What is the main benefit of this specific housing configuration?
The 11-inch penetration allows monitoring deep within machinery casings. This is common in large turbines.
Is the probe itself replaceable?
Yes, the reverse-mount probe is a standard component. You can service it separately if needed.
Why is the part number not visible after installation?
The design retracts the probe into the sleeve. This protects it but hides the label. Record the serial number before installation.
Selection Guidance
How do I choose the correct cable length?
Select based on the distance from the probe to the junction box. Add extra length for routing. The 0.5m cable suits short connections.
When do I need a standoff adapter?
Use an adapter for additional clearance from the mounting surface. This model has no adapter (code 00).
Is this compatible with my existing Bently system?
This 3300 XL 8mm probe works with 3300 XL monitor frames. Verify your system model for certainty.
Ordering & Support
This is a new, original part with a 12-month warranty. We ship globally via FedEx, UPS, and DHL. For quick quotes or technical questions, contact our team.
