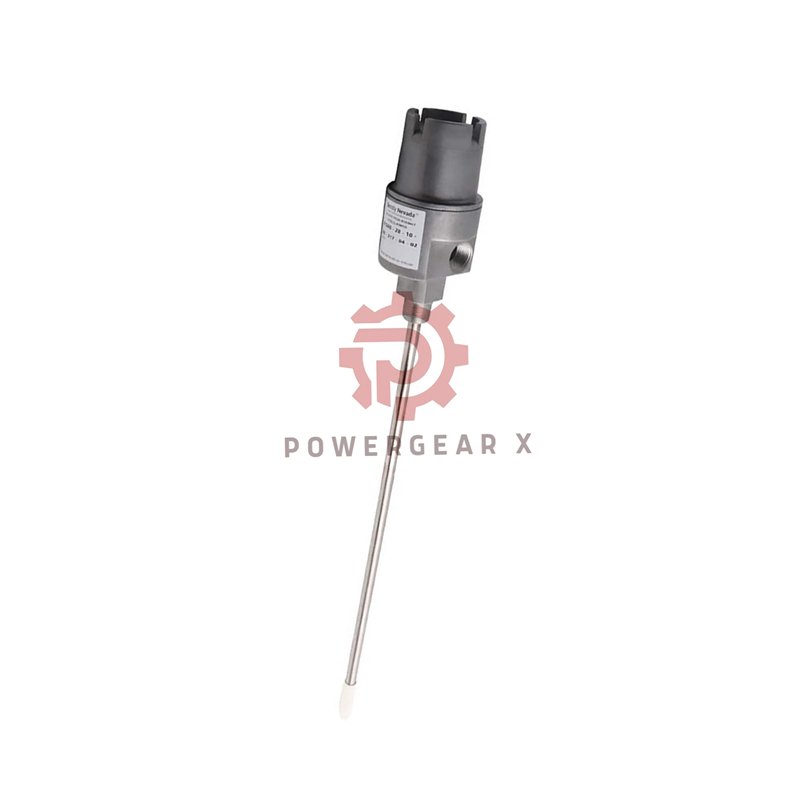

Bently Nevada 24701-28-05-00-110-00-01 | Unthreaded Housing with 3300 XL Probe

Customizable Vibration Sensor Solution

Optimize your monitoring setup with the Bently Nevada 24701-28-05-00-110-00-01. This is a genuine, new Proximity Probe Housing Assembly in original packing. It offers a longer 1.10-inch probe reach for deep mounting applications. Comes with a reliable 12-month factory warranty.

Need guidance? Contact us: sales@powergearx.com or +86 18030005825.

Product Build Details

• Manufacturer: Bently Nevada
• Base Model: 24701 Assemblies
• Your Specific Code: 24701-28-05-00-110-00-01
  • 28 – Probe Type
    • Equipped with an approved 3300 XL 8mm Proximity Probe.
  • 05 – Cable
    • Standard 20-inch (0.5 m) cable length.
  • 00 – Spacer
    • Standoff adapter is not supplied.
  • 110 – Extension
    • Probe projects 1.10 inches from housing.
  • 00 – Accessories
    • No conduit fittings or plugs included.
  • 01 – Mounting Base
    • Supplied “as cast” without pre-cut threads.
• Construction:
  • Main housing: Durable 303 stainless steel.
  • Internal sleeve: Corrosion-resistant 304 stainless steel.
  • Approximate weight: 1.8 kg (4.1 lbs).
• Installation Limits:
  • Maximum (C)+(D) Dimension: 13.5 in (34.3 mm).
  • Probe serial number is not visible after installation.
  • Mounting base requires final threading to your specification.

What’s in the Box & Support

• One complete housing with installed 3300 XL 8mm Probe.
• Core parts: dome cover, probe sleeve, O-rings, thread seal.
• No additional fittings or plugs.
• Original factory packaging.
• Backed by a full 12-month manufacturer’s warranty.

Key Features & Logistics

• Custom Fit: Unthreaded base allows machining for unique port sizes.
• Deep Measurement: 1.10-inch penetration suits applications needing greater reach.
• Worldwide Delivery: Reliable and fast shipping via FedEx, UPS, and DHL available.

Expert FAQs

Product Configuration

Why would I need an “as cast” (01) housing?

This allows you to machine custom threads on-site. It is perfect for non-standard or proprietary mounting holes.

What is the main use for 1.10-inch probe penetration?

It is used when the sensor must be mounted farther from the target shaft, requiring the probe to reach further in.

Installation & Selection

Can I install this housing without a machinist?

No. The “01” suffix requires precise threading work. You will need a qualified machinist to finish the mounting base.

I need a plugged conduit port. Does this model include a plug?

No. This model has a “00” fittings option. You must source the correct NPT plug separately to seal the unused port.

Ordering & Service

What is your process for warranty claims?

Contact us with your order details and a description of the issue. We manage the claim under the 12-month warranty terms.

Do you offer threaded versions of this model?

Yes. For a standard 3/4-14 NPT thread, look for model suffix 02 instead of 01.

Need a different variant or bulk quote?

We can assist. Email sales@powergearx.com or message on WhatsApp for support.
