Product details
Product Summary: Deep Penetration Probe Housing

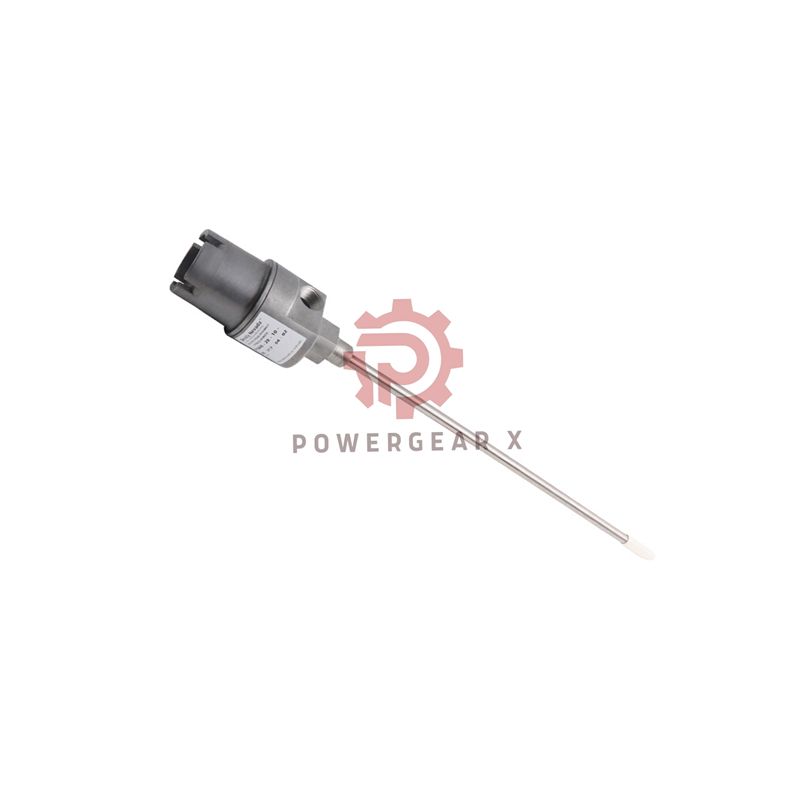

Introducing the Bently Nevada 21000-16-05-00-066-03-02. This is a complete protected housing for proximity probes. It features a long 6.6-inch probe penetration. This assembly is built for demanding industrial monitoring. It keeps your vibration sensor safe and accurate.
Product Configuration Explained
- Basic Information:
- Brand: Bently Nevada
- Complete Part Number: 21000-16-05-00-066-03-02
- Model Type: Proximity Probe Housing Assembly
- Condition: 100% New, Original, Factory Packed
- Warranty: Full 12 Months
- Understanding the Suffix Code:
- 21000: Aluminum Housing Assembly Series
- 16: Includes 3300 XL 8mm Probe with Connector
- 05: Short Internal Cable (0.5 meter / 20 inches)
- 00: No Standoff Adapter (Direct Mount)
- 066: Key Feature – Deep 6.6 Inch Probe Penetration
- 03: Fittings Kit (NPT Plugs, Reducer, Cable Seals)
- 02: Mounting Thread is 3/4-14 NPT
- Construction & Contents:
- Housing: Aluminum Body with 304 Stainless Steel Sleeve
- Full Kit: Dome Cover, O-rings, Thread Seal, Sleeve, Fittings
- Probe: Pre-installed Reverse Mount 8mm Proximity Probe
- Technical Specifications:
- Max Assembly Length (C+D): 13.5 inches (34.3 cm)
- Approximate Weight: 1.1 kg (2.4 lbs)
- Certifications: CSA Explosion Proof, API 670 Compliant
- Rating: For Hazardous Areas, Intrinsically Safe Applications
Professional FAQs & Buying Advice
Design & Application
- Why would I need the 6.6-inch penetration option (-066)?
Use it when you must mount the housing on a thick machine casing. The long probe sleeve reaches through to the internal bearing. - What is a “CSA Type 4” enclosure rating?
It means the housing is watertight and dust-tight. It also contains internal explosions. This is critical for outdoor or dirty environments.
Installation & Selection
- The probe cable inside is only 0.5m. Is that enough?
Yes. This short cable connects the probe to a terminal inside the housing. You then run your own longer cable from the housing to the monitor. - How do I choose between different penetration lengths?
Measure your machine’s wall thickness. Select a penetration length (like 066 for 6.6″) slightly longer than the wall.
Ordering & Support
- Can I get this housing in stainless steel instead of aluminum?
Yes. For a stainless steel body, you would order the 24701 series instead of 21000. Contact us for the equivalent part number. - How do I receive my order and what is covered?
We ship the 21000-16-05-00-066-03-02 with a 12-month guarantee. Your order is dispatched quickly via FedEx, DHL, or UPS.
Need help measuring for the correct housing? Our engineers can guide you. Send us your machine details for a perfect fit.
